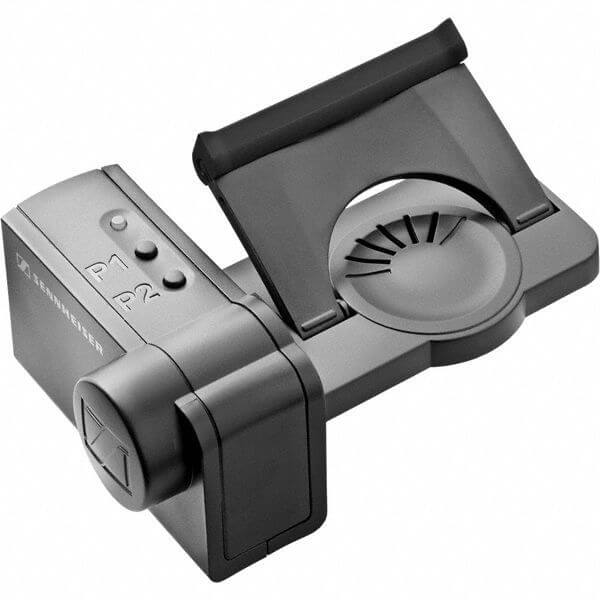

Sennheiser HSL10 Mechanical handset lifter suitable for DW Office Phone
Sennheiser HSL10 Mechanical handset lifter suitable for DW Office, DW Office ML, DW Office Phone, DW Pro 1, DW Pro 1 ML, DW Pro 1 Phone, DW Pro 2, DW Pro 2 ML, DW Pro 2 Phone
Part Number:HSL10
HSL 10 Mechanical handset lifter suitable for DW Office, DW Office ML, DW Office Phone, DW Pro 1, DW Pro 1 ML, DW Pro 1 Phone, DW Pro 2, DW Pro 2 ML, DW Pro 2 Phone.
Used in combination with a Sennheiser wireless solution, the handset lifter HSL 10 II completes the wireless headset package.
It enables you to conveniently answer calls and hang up again while away from your desk.
BENEFITS AND FEATURES
– Allows picking up and hanging up a telephone handset automatically when using a wireless headset and away from the desk phone
The mechanical hook switch supports nearly all prevalent standard desk phones
Comes complete with connecting cables and microphone
Enables answering and terminating calls while away from your base station (telephone)
High quality microphone allows ring tone detection of two different ring tones of your telephone (e.g. external and internal calls) Lightweight and compact design, it perfectly fits your telephone without using much space
The lifter can be extended and thus allows for customized use – “Easy adaptation kit” facilitates connection to different phone styles.
Technical Data
HSL 10 II
Art. No. 507226
EAN No. 40 4415521865 7
UPC No. 6 1510428781 5
General Data
Dimensions 7 x 110 x 42 mm / 3.03 x 4.33 x 1.65 in
Weight 80 g / 2.82 oz
Temperature range +5 °C to +40° C / +41 °F to +104 °F
Power Source Powered from base station (5 V)
Max. lifting height Up to 25 mm / 0.98 in
Max. load 200 g / 7.05 oz
Cable length of microphone 50 cm / 19.69 in
Warranty 2 years
Accessories included
– Ring tone detecting microphone with cable and double-sided adhesive tape
(2.5 mm mono jack plug)
– Cable with two RJ 11 connectors
– HSL 10 Fixation kit - Easy adaptation kit incl. foam blocks and double-sided adhesive tape
– Instruction manual
Spare parts Product description Art. No. EAN No. UPC No.
HSL 10 Spare Cable Connector cable for HSL 10 II 507227 40 4415521866 4 6 1510428782 2
Fixation kit - HSL 10 Fixation kit for handset lifter 504032 40 4415504698 4 6 1510417342 2
Packaging
Dimensions of product packaging 145 x 105 x 60 mm / 5.71 x 4.13 x 2.36 in
Units in master carton 24
Dimensions of master carton 385 x 295 x 225 mm / 15.16 x 11.61 x 8.85 in
Master carton weight incl. products 6.9 kg / 243.39 oz
Content of delivery HSL 10 II, Quick Guide and Safety Guide
