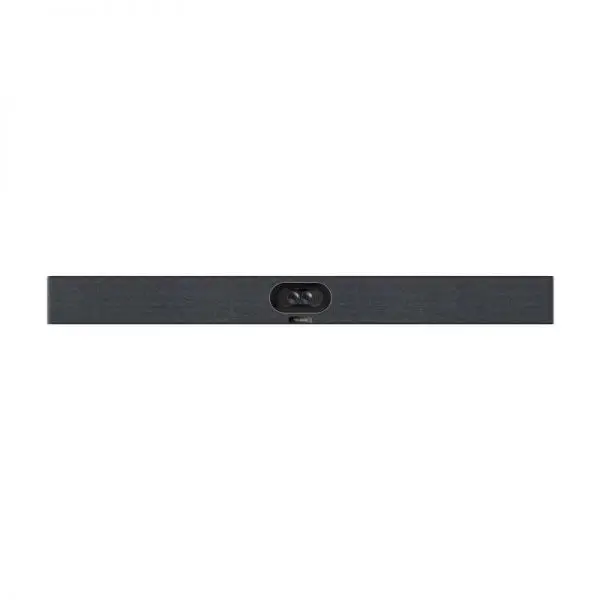

Yealink MeetingBar A40
All-in-One Video Collaboration Bar for Medium Room
Compatible with Microsoft Teams & Zoom
Yealink MeetingBar A40 is an all-in-one video collaboration bar for premium small-to-medium rooms. It combines the images from two 48MP lenses, present a higher pixel picture, and deliver clearer image quality.
It also features built-in 2 stereo speakers, 8x MEMS microphone array, and supports 2 additional expansion microphones*. The intelligent noise reduction technology provides a good audio experience.
Documents
Yealink MeetingBar A40
The Yealink MeetingBar A40 is an all-in-one video collaboration bar designed for small to medium-sized rooms. It combines high-quality video and audio features to enhance meeting experiences. It offers Ultra HD picture quality by combining images from two 48MP lenses. It also features a 6-meter voice pickup range, built-in stereo speakers, 3-meter full-duplex technology, and an 8x MEMS microphone array. It is compatible with Microsoft Teams and Zoom. It is compatible with Microsoft's MDEP, which enhances security and deployment experiences. It can be managed remotely. It offers a dual-lens fixed-focus stitching solution that combines images from two lenses to achieve a higher pixel density. It is priced competitively. It offers free demos for companies with over 500 employees. It offers warranty services.
Yealink MeetingBar A40 Details
Features and Specifications
Operating System
- Android 13
Camera
- 4K@60fps
- Dual 48MP Sensors
- Intelligent Auto Framing
- 6x Digital Zoom
- Low-Light Performance
- AI-Powered Features
Speaker
- Built-in 2 x 10W speakers
- Maximum sound pressure level: 112dBSPL 10W@0.1m
- Frequency response: 100-16kHz
- Sensitivity: 86dB SPL @ 1W @ 0.5 meter
- Sampling rate: 48kHz
- Sound emission angle: Forward-facing
- Total Harmonic Distortion (THD): at 10W, 1kHz, ＜5%
- Rated impedance: 4 ohms
- Maximum power: 12W
- Rated power: 10W
Microphone
- Built-in 8 MEMS microphone array
- 6-meter pickup distance, 4-meter high-quality pickup distance
- Signal-to-noise ratio: 72dB
- Maximum sound pressure level: 130dBSPL (whole device), 100dBSPL (individual microphone)
- Dynamic range: 28-100dBSPL
- Sensitivity: -38dBV/pa
- Frequency response: 100-20kHz
- Sampling rate: 48K32bit
- Bit depth: 32-bit
Ports
- 1x USB2.0 USB-A port
- 2x USB-C port
- 1x Ethernet port
- 1x Yealink VCH port (RJ-45)
- 1x 3.5mm Line-in & Line-out port
- 1x Power port
- 1x Security lock slot
- 1x Reset slot
- 2x HDMI-out
Package Contents
Your MeetingBar A40 package comes with
Your Collaboration Bar
- Yealink MeetingBar A40
Accessories
- HDMI cable x2
- Network cable x1
Additional Items
- TV-Clip Mount x1
- Wall Mount x1
- Optional Package
- A40-010: A40+VCR11
- A40-031: A40+CTP25
