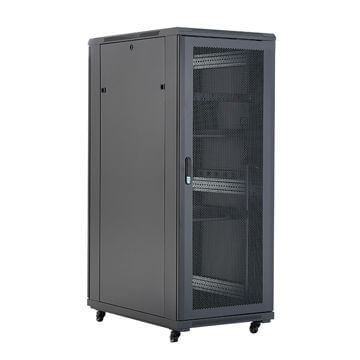

Redstar 18U 600x1000mm Mesh Door Cabinet

Redstar 18U 600x1000mm Mesh Door Cabinet

Part Number: AD6018

Standard

Comply with ANSI/EIA RS-310-D, DIN41497 part 1, IEC297-2,DIN41494 part 7, GBIT3047.2-92 standard.

Features

• Mesh front door and mesh rear door
• 19-inch width standard;
• Removable Side Panels, sidelocks optional;
• Knock off hole for entering cable on both top covers, bottom panel, real panel
• The turning angle of the front door is over 180 degrees
• Easy mounting installation
• Unassembled package saving shipping space
• Four fans, One PDU (6 ways UK type)

Loading Capacity

800KG

Degree of Protection

IP20

Material

SPCC Cold Rolled Steel

Thickness 2.0mm-1.2mm-1.0mm

Surface Finish

Powder coating

Product Datasheet
