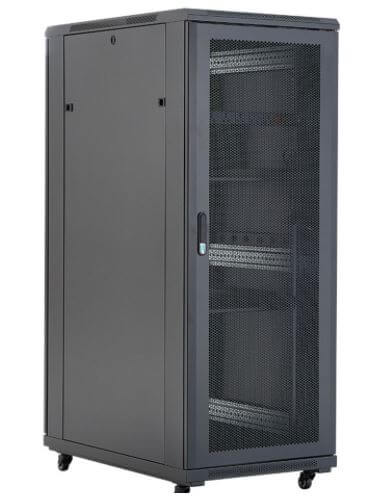

Redstar 27U 600x1000mm Mesh Door Cabinet
19-inch standard;
Removable Side Panels, sidelocks optional;
Knock off hole for entering cable on both top covers, bottom panel, real panel
Easy mounting installation
Unassembled package saving shipping space
Four fans, One PDU (6 Ways UK Type) PDU is standard
Redstar 27U 600x1000mm Mesh Door Cabinet
Part Number: AD6027
Standard
Comply with ANSI/EIA RS-310-D, DIN41497 part 1, IEC297-2,
DIN41494 part 7, GBIT3047.2-92 standard.
Features
19-inch width standard;
Removable Side Panels, side locks optional;
Knock off hole for entering cable on both top cover, bottom panel,real panel
Turning angle of front door is over 180 degrees
Easy mounting installation
Unassembled package saving shipping space
Mesh front door and mesh rear door
Four fans,one PDU
Loading Capacity
800KG
Degree of Protection
IP20
Material
SPCC Cold Rolled Steel
Thickness:2.0mm-1.2mm-1.0mm
Surface Finish
Powder coating
