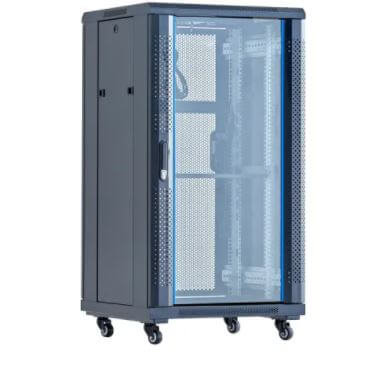

Redstar 22U 600x600mm Glass Door Cabinet

Redstar 22U 600x600mm Glass Door Cabinet

Part Number: AS6622

Standard

Comply with ANSI/EIA RS-310-D, DIN41497 part 1, IEC297-2,DIN41494 part 7, GBIT3047.2-92 standard.

Feature

• Glass front door and solid mesh metal door
• 19-inch width standard;
• Removable Side Panels, sidelocks optional;
• Knock off hole for entering cable on both top covers, bottom panel, real panel
• The turning angle of the front door is over 180 degrees
• Easy mounting installation
• Unassembled package saving shipping space
• Two fans, One PDU (6 ways UK type)
• Loading Capacity: 800KG
• Degree of Protection: IP20
• Material: SPCC Cold Rolled Steel
• Thickness: 2.0mm-1.2mm-1.0mm
• Surface Finish: Powder coating

Product Datasheet
