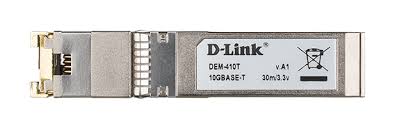

D-Link DEM-410T 10GBase-T SFP+ Transceiver
0.00 KSh
0.00 KSh
17,525.00 KSh
(Tax excluded)
D-Link DEM-410T 10GBase-T SFP+ Transceiver
Part Number: DEM-410T
Part Number: DEM-410T
The 10GBASE-T SFP+ transceiver module delivers the flexibility and port density well known to the SFP+ form-factor, utilizing Cat 6a UTP structured cabling for network connectivity. It is a power-optimized solution for lengths up to 30m, engineered to deliver a minimum power saving of at least 0.5W per port compared to an equivalent embedded 10GBASE-T RJ45 for the same length (Cat 6a, up to 30m). These power savings can add-up in ToR, mid-row, and end-of-row switch connectivity.
It’s the alternative compared with standard SFP+ SR/LR fiber optics, which uses standard-based technology with the familiar RJ45 connector and provides backward compatibility with legacy networks
The 10GBASE-T SFP+ transceiver module delivers the flexibility and port density well known to the SFP+ form-factor, utilizing Cat 6a UTP structured cabling for network connectivity.Features
Hot Pluggable
MSA Compliant: SFF-8431, SFF-8432
RoHS Compliant
Specification
Compliant Standard
IEEE 802.3an 10GBase-T IEEE
802.3ab 1000BASE-T
Transceiver Type
RJ45
Max. Transmit Distance
10GBASE-T up to 30m with Cat 6a
1000BASE-T up to 100m with Cat 5e
Speed
10Gbps
Operating Power (V)
3.3V
Max Input Current (mA)
780mA
MTBF (hours)
217,186 hours
Operation Temperature (°C)
0~65℃
Storage Temperature (°C)
-40~85℃
Operating Humidity (%)
5%~95%
Storage Humidity (%)
5%~95%
Dimension ( W x D x H mm)
13.7mm x 68mm x 8.5mm
Weight (g)
20g
Emission (EMI)
FCC Class B, CE Class B VCCI, Class B
Safety
