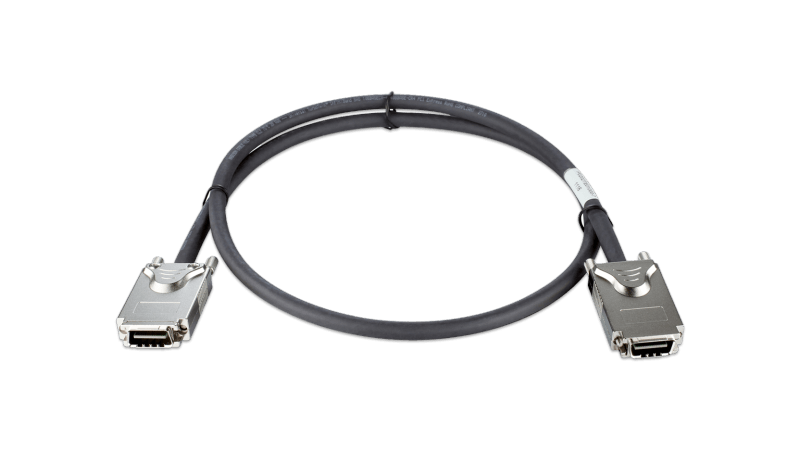

D-Link DEM-CB100 100 cm Stacking Cable (For DGS-3120 Series)
Description
The InfniBand Cable Series 10G InfniBand Twinaxial Cables are designed
to support high-speed connections for 10Gbps Ethernet devices1.
The series consists of fve models: the DEM-CB50, DEM-CB100, DEM-CB300,
DEM-CB50ICX, and DEM-CB300CX. The 10G InfniBand Twinaxial Cables are an
ideal solution for cost-effective, high-speed networking connectivity
between D-Link switches, and other devices within a rack or in adjacent
racks.
Ideal for High-Bandwidth Operation
The D-Link 10G InfniBand Twinaxial Cables support speeds of up to
10Gbps over distances of up to 3metres. This 10GBASE-CX4 cabling runs
over four pairs of twinaxial copper wiring, resulting in low latency,
and supports the InfniBand fabric’s quality of service (QoS) and
failover features. The result is an optimal solution for handling high
bandwidth transmission over short distances.
10GBASE-CX4 Connectors
The 10G InfniBand Twinaxial Cables use 4X InfniBand connectors with
screw or latch type plugs. The DEM-CB50, DEM-CB100, and DEM-CB300
feature screw-type connectors at both ends, and can be used as physical
stacking cables or uplink cables for D-Link’s DGS-3120 L2 Managed
Stackable Gigabit Switch series. The DEM-CB50ICX features a screw-type
connector at one end for connection to the DGS-3120 series, and a
latch-type connector at the other end for connection to the DMC-805X
media converter. The DEM-CB300CX features a latch-type connector at both
ends and can be used as a physical stacking cable for the DGS-3400
Series Advanced Layer 2+ Gigabit Switches and the accompanying DEM-410CX
module.
1 It is recommended that the 10G InfniBand Twinaxial Cables are only used with D-Link products.
General features
Connector Type
Screw-type at both ends
Cable Length
100cm
Wire AWG
28AWG
Connectivity
Physical stacking cable or uplink cable for DGS-3120 series (recommended)
Voltage
30VAC
Current
0.5A
Operating temperature
-40 to 85°C
Certifications
• IEEE802.3ak 10GBASE-CX4
• SFF-8470
• EIA-364
.UL 94
