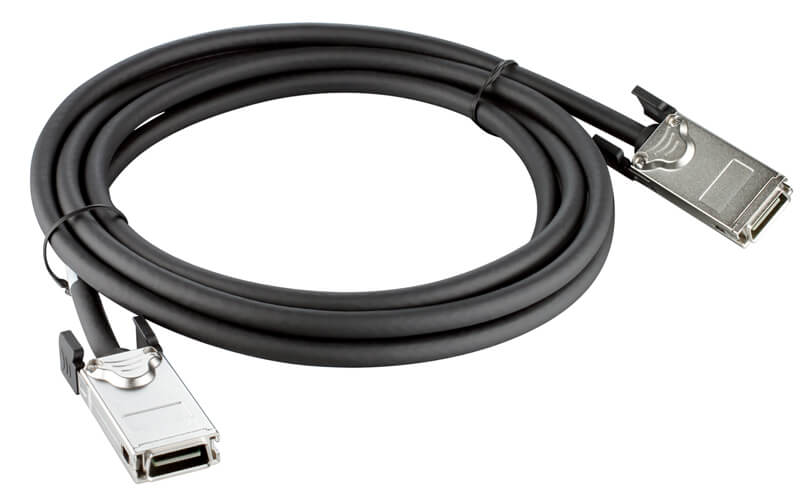

D-Link DEM-CB300CX 3m 10-Gigabit CX4 Cable for DEM-410CX
D-Link DEM-CB300CX 10M 10 Gigabite CX4 Cable for DEM-410CX
Description:
Twinax cables are designed for 10G
InfiniBand interconnect Ethernet-enabled devices data rate of 10 Gbit /
c1, providing high bandwidth. This series of cables includes five models: DEM-CB50, DEM-CB100, DEM-CB300, DEM-CB50ICX and DEM-CB300CX. Twinax
cables 10G InfiniBand is the ideal cost-effective solution for
connecting the D-Link switches and other devices installed in the same
or adjacent racks, providing high bandwidth.
The ideal solution for high-performance systems
Twinax cables 10G InfiniBand D-Link supports
data rates up to 10 Gbit / s at a distance of up to 3 m. The standard
10GBASE-CX4 provides data on four pairs twinax copper cable, which leads
to low latency in data transmission, and supports Quality of Service
(QoS) and resiliency (failover) InfiniBand. Thus, the data cables are the ideal solution, providing high bandwidth over short distances.
Connectors 10GBASE-CX4
This series cable is used InifiniBand 4X connectors with screw fasteners and snaps for fastening. Models
DEM-CB50, DEM-CB100 and DEM-CB300 equipped on both sides of the
connector with screw terminals and can be used as a cable for the
physical stacking or cables to connect the managed stackable Gigabit
Ethernet switches level 2 Series D-Link DGS-3120 with higher-level
devices . Model DEM-CB50ICX equipped on
one side connector with screw terminals for connection to a switch
DGS-3120 series, the other - the connector with a latch for fixing to
connect to the media converter DMC-805X. Model DEM-CB300CX equipped on both sides with snap connectors for mounting and can be used as a cable for the physical stacking switches DGS-3400 series and DGS-3627 / 3627G / 3650 for use in their accompanying modules
Type connectors
Fastening with latches on both sides
Length of cable
300 cm
Wire gauge AWG
28 AWG
connectivity
The cable for the physical stacking switches DGS-3400 series and DGS-3627 / 3627G / 3650 module DEM-410CX (recommended)
Voltage
30 VAC
Current
0.5 A
insulation Diameter
7.6mm (0.3 inch)
Differential Impedance
100 ohms
Working temperature
-40 To 85 C
Certifications
• IEEE802.3ak 10GBASE-CX4
• SFF-8470
• EIA-364
• UL 94
