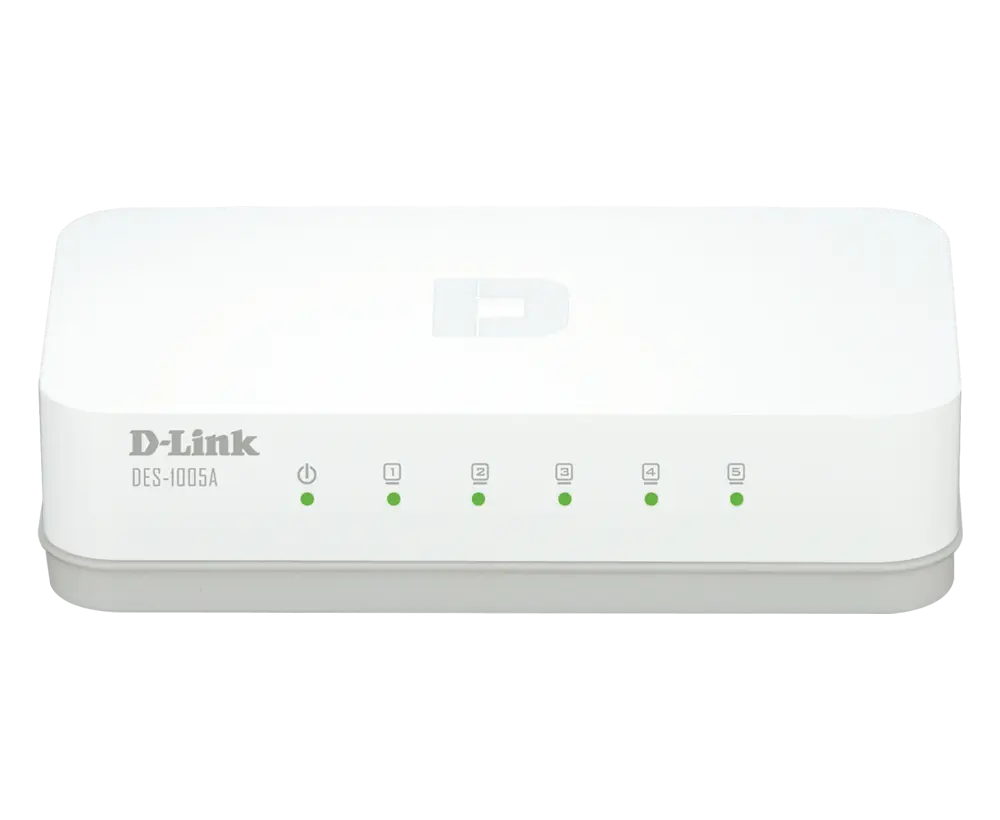

D-Link DES-1005A/E | 5-Port Switch

https://www.redstarafrica.com/web/image/product.template/11300/image_1920?unique=9108572

5-Port 10/100 Switch
Auto-sensing 10/100 Mbps ports

The D-Link DES-1005A is a small, compact 5-port network switch designed for home offices or small workgroups. It’s easy to set up and offers reliable, flexible connectivity for your Ethernet devices. With its auto-sensing ports, the switch automatically adjusts to the highest speed and network conditions for efficient performance.

1,725.00 KSh 1725.0 KES 1,725.00 KSh Tax Excluded

1,725.00 KSh Tax Excluded

Contact us for this product

This combination does not exist.

D-Link Switches D-Link DES

D-Link DES-1005A/E 5 port switch

The D-Link DES-1005A 5-port switch is an affordable, efficient solution for creating a small network. It features auto-sensing 10/100 Mbps ports that automatically adjust to the highest available speed, ensuring seamless connectivity between devices like computers, printers, and other Ethernet-enabled devices. These ports support both full and half-duplex operations, optimizing network traffic flow based on connected devices. The switch operates with a switching capacity of 1 Gbps, making it suitable for small businesses or home users who need reliable and quick data transfer.

Energy-efficient technologies such as EEE (Energy Efficient Ethernet) and power-saving by link status contribute to the device's low power consumption, with a maximum consumption of only 0.784 watts during operation. Additionally, the DES-1005A features a fanless design, making it quiet and ideal for noise-sensitive environments. With a packet buffer size of 96 KBytes and support for Jumbo frames up to 2048 Bytes, it provides smooth and efficient data processing. The switch also includes basic features like flow control and head-of-line (HOL) blocking prevention, helping to reduce network congestion and packet loss.

D-Link DES-1005A/E details

Technical Specifications

Network Ports & Connectivity

  • 5 x 100Base-TX Ethernet ports
  • Auto-sensing 10/100 Mbps ports
  • Auto MDI/MDIX support
  • Jumbo Frame support (2048 Bytes)
  • Store & Forward forwarding mode

Performance & Management

  • Switching capacity: 1 Gbps
  • Max. packet forwarding rate: 0.74 Mpps
  • MAC address table size: 2,000
  • 802.3x flow control
  • Head-of-line (HOL) blocking prevention

Physical & Environmental

  • Dimensions: 88 x 48 x 21.45 mm
  • Weight: 0.0434 kg
  • Operating temperature: 0 ~ 40 °C
  • Storage temperature: -40 ~ 70 °C
  • Fanless design

Box Contents

Your D-Link DES-1005A box comes with:

Your Switch

  • D-Link DES-1005A switch console

Accessories

  • Power Cable
  • Video Cable

Additional items

  • User Guide
