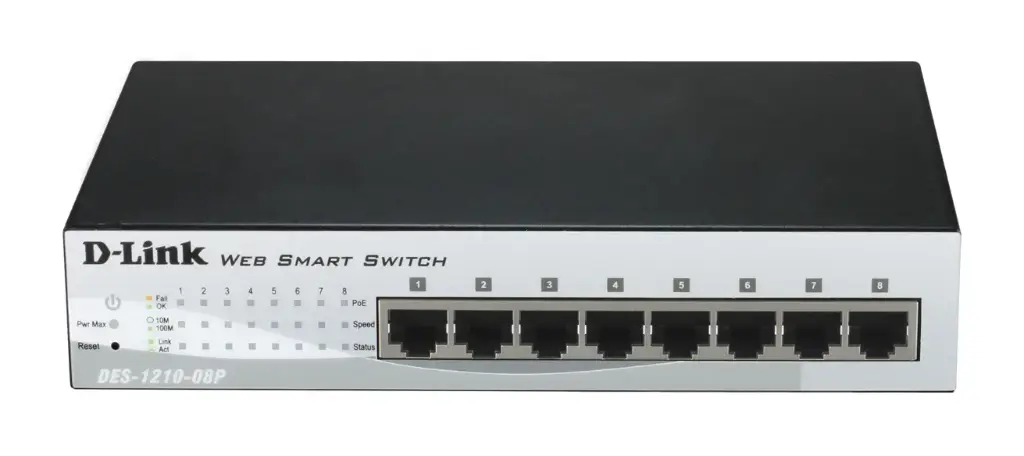

D-Link DES-1210-08P 8-Port 10/100Base-T PoE Smart Switch
8-port PoE Smart Switch
D-Link DES-1210-08P - 8-Port 10/100Base-T PoE Smart Switch
The D-Link DES-1210 series offers a robust and flexible networking solution tailored for small and medium-sized businesses. Key features and benefits include:
- High-Speed Connectivity: Equipped with Gigabit Ethernet ports, these switches deliver high-speed data transfer, ensuring smooth network operations.
- Power Over Ethernet (PoE): Selected models support PoE, allowing you to power devices like IP cameras and VoIP phones directly through the network cable, simplifying deployment and reducing cabling costs.
- Advanced Layer 2 Features: The series supports a range of Layer 2 features, including VLANs, QoS, and link aggregation, enabling efficient traffic management and network segmentation.
- Enhanced Security: Robust security features like 802.1X port-based authentication, ACLs, and ARP Spoofing prevention protect your network from unauthorized access and malicious attacks.
- User-Friendly Management: The intuitive web-based interface and SmartConsole utility provide easy configuration, monitoring, and troubleshooting, empowering network administrators to manage their network efficiently.
By combining these features, the D-Link DES-1210 series empowers businesses to build reliable, scalable, and secure networks that meet their evolving needs.
D-Link DES-1210-08P Features
Interfaces
| 8-port 10 / 100BASE-TX PoE |
Ports | • IEEE 802.3 10BASE-T Ethernet (copper twisted-pair) • IEEE 802.3u 100BASE-TX Fast Ethernet (copper twisted-pair) • Auto-ANSI / IEEE 802.3 • IEEE 802.3x Flow Control |
Performance | The capacity of the switch: 1.6 Gbit / s Maximum speed forwarding 64-byte: 1.19 Mpps MAC-address table: 8K entries per device Buffer RAM: 384 KB SDRAM for CPU: 64 MB Flash-Memory: 16 MB Transmission Method: Store-and-forward |
Power over Ethernet (PoE)
| Standard PoE: 802.3af Functions PoE ports + Ports 1-8 to 15.4 watts per port • Power PoE: 72 W |
Diagnostic Lights | • Power (per device) • Link / Activity / Speed ??(per port) |
Software | |
Layer 2 functions | • MAC address table: 8K • Flow Control + 802.3x Flow Control + HOL Blocking Prevention • IGMP Snooping + IGMP v1 / v2 Snooping + Support for up to 256 IGMP-groups + Support for up to 64 static multicast groups + IGMP Snooping on the VLAN + Support for IGMP Querier • Multicast Filtering + Redirect all unregistered groups + Filtration of unregistered groups • Spanning Tree Protocol + 802.1D STP + 802.1w RSTP • Loopback Detection is • Link aggregation 802.3ad + Max. Quantity groups per unit - 8, 8 ports per group • Port Mirroring + One-to-One + Many-to-One + Based on the flow • The diagnostic cable • Customizable interface MDI / MDIX |
VLAN | • 802.1Q tagged VLAN • VLAN Group + Max. 256 static VLAN + Max. 4094 VIDs • Management VLAN • Asymmetric VLAN • Auto Voice VLAN + Max. 10 user defined OUI + Max. 8 by default defined OUI • Auto Surveillance VLAN |
