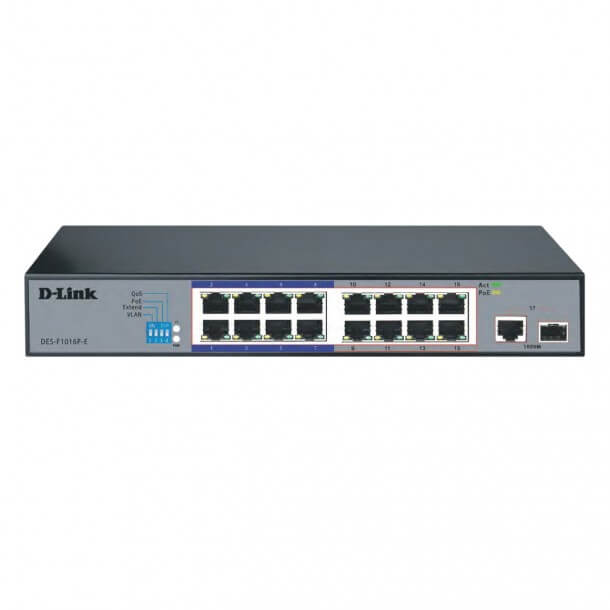

D-Link DES-F1016P-E | 16-Port PoE+ Surveillance Switch
Surveillance Switch
Plug-and-play installation
The D-Link DES-F1016P-E is a user-friendly 16-Port PoE+ Surveillance Switch designed to simplify network connections for devices like IP cameras and wireless access points. It allows you to send both data and power to devices through a single Ethernet cable, which reduces the clutter of extra cables. This switch is ideal for those looking to enhance their home or business security systems with ease and efficiency.D-Link DES-F1016P-E | 16-Port PoE+ Surveillance Switch
The D-Link DES-F1016P-E features 16 Fast Ethernet ports that support Power over Ethernet (PoE), allowing you to power your network devices directly through the Ethernet cables without the need for additional power sources. This switch complies with both IEEE 802.3af and 802.3at standards, providing a substantial PoE budget of 150 watts. Additionally, it includes 2 Gigabit ports with one combo RJ45/SFP port for flexible uplink options. With a maximum transmission distance of 250 meters, the DES-F1016P-E enables the deployment of devices in hard-to-reach locations, such as outdoor surveillance cameras. It also supports multiple operating modes, including Extend Mode for longer distances, VLAN Mode for network isolation, and QoS for prioritizing video traffic, ensuring optimized performance in surveillance applications. The device is built with ease of use in mind, featuring plug-and-play installation and auto MDI/MDIX for hassle-free connectivity.
D-Link DES-F1016P-E details
Technical Specifications
Network Ports & Connectivity
- 16 Fast Ethernet PoE ports (10/100 Mbps)
- 2 Gigabit uplink ports
- 1 Combo RJ45/SFP port
- Auto MDI/MDIX support
- Plug-and-play installation
Performance & Management
- Switching capacity of 7.2 Gbps
- Packet forwarding rate of 3.868 Mpps
- VLAN Mode for network isolation
- QoS mode to prioritize traffic
- Flow control for data protection
PoE (Power over Ethernet)
- Supports IEEE 802.3af and 802.3at standards
- Total PoE budget of 150 watts
- Supports PoE distance up to 250 meters
- Auto-detection for PoE devices
- Power management features
Security & VLAN Features
- VLAN Mode for isolating ports
- Suppresses network storms
- Enhanced performance for surveillance applications
- Prevents unauthorized access
- Port isolation capabilities
Physical & Environmental
- Dimensions: 285 x 180 x 44 mm
- Weight: 2.1 kg
- Operating temperature: 0 to 40 °C (32 to 104 °F)
- Operating humidity: 10% to 90% non-condensing
- Lightning protection (6KV)
Box Contents
Your D-Link DES-1016P-E box comes with:
Your Switch
- D-Link DES-1016P-E PoE+ switch console
Accessories
- Power cord
- Rack-mounting kits
Additional items
- User Guide
