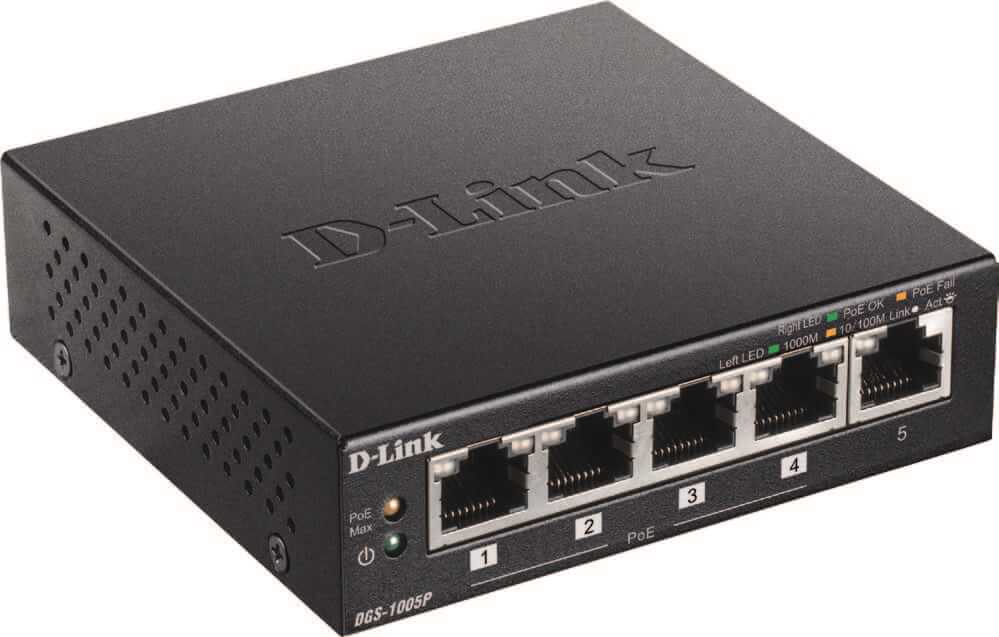

D-Link DGS-1005P | 5-Port Desktop Gigabit PoE+ Switch
The D-Link DGS-1005P is a compact and powerful 5-port Gigabit PoE+ switch that simplifies network expansion.
With its 4 PoE ports, you can easily power and connect PoE devices like IP cameras and wireless access points without additional power outlets.
With its 4 PoE ports, you can easily power and connect PoE devices like IP cameras and wireless access points without additional power outlets.
Documents
D-Link DGS-1005P | 5-port Desktop Gigabit PoE+ Switch
The D-Link DGS-1005P is a compact and powerful Gigabit PoE+ switch designed for easy network expansion. It offers multiple high-speed Gigabit Ethernet ports with flexible duplex mode support. The switch ensures reliable network operation with features like flow control and a store-and-forward switching scheme.
Its plug-and-play installation and auto-MDIX crossover simplify setup, while its compact and quiet design makes it ideal for various environments. The integrated PoE functionality, compliant with IEEE 802.3af/at standards, allows you to power and connect PoE devices like IP cameras and wireless access points, providing a convenient and efficient networking solution
D-Link DGS-1005P details
Technical Specifications
Network Ports & Connectivity
- 5 x 10/100/1000BASE-T ports
- Automatic MDI/MDI-X adjustment on all ports
- Plug-and-play installation
- IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- IEEE 802.3x flow control
- IEEE 802.1p QoS
- ANSI/IEEE 802.3 NWay auto-negotiation
Performance & Management
- Switching Fabric: 10 Gbps
- Transmission Method: Store-and-forward
- Data Transfer Rates:
- Gigabit Ethernet: 2000 Mbps (full-duplex)
- Fast Ethernet: 100 Mbps (half-duplex), 200 Mbps (full-duplex)
- Ethernet: 10 Mbps (half-duplex), 20 Mbps (full-duplex)
- Packet Filtering / Forwarding Rates: 7.44 Mpps
- MAC Address Table: 2K entries per device
- RAM Buffer: 64 KB per device
PoE (Power over Ethernet)
- PoE Standards: IEEE 802.3af, IEEE 802.3at
- PoE-Capable Ports: Ports 1 to 4
- Power Budget: 60 W (30 W max. per PoE port)
Security & VLAN Features
- 802.1X Authentication
- Access Control Lists (ACL)
- DHCP Snooping
- IP Source Guard
- Port Security
VLAN Features
- Dynamic VLAN Assignment
- MAC-based Access Control
- VLAN Support (up to 4K static VLAN groups)
- Private VLAN
- Spanning Tree Protocol (STP)
Physical & Environmental
- Dimensions: 100 x 98 x 28 mm (3.94 x 3.86 x 1.10 in)
- Weight: 0.26 kg (9.17 oz)
- Operating temperature: 0 to 40 ˚C (32 to 104 ˚F)
- Storage temperature: -10 to 70 ˚C (-40 to 158 ˚F)
- Power consumption: 63.26 W maximum (PoE on)
Box Contents
Your D-Link DGS-1005P box comes with:
Your Switch
- D-Link DGS-1005P Switch console
Accessories
- Power adapter
Additional items
- User Guide
