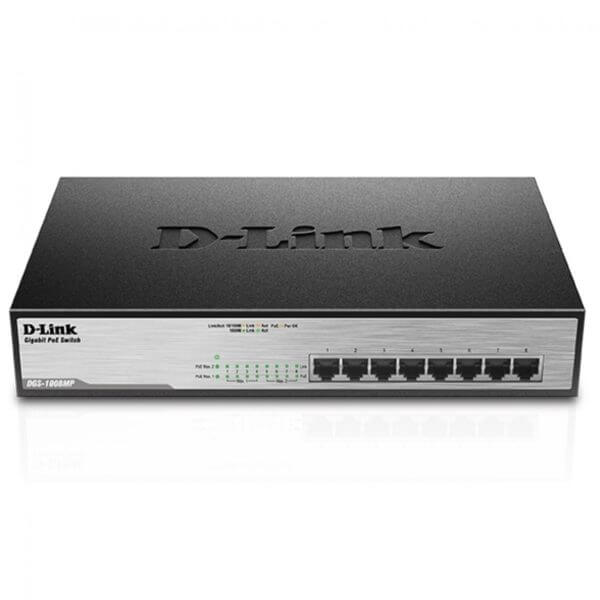

D-Link DGS-1008MP | 8-port Unmanaged PoE Switch

https://www.redstarafrica.com/web/image/product.template/11345/image_1920?unique=6d98403

8-Port, Unmanaged PoE Switch
8 x 10/100/1000 Mbps ports

The D-Link DGS-1008MP 8-Port Desktop Gigabit PoE Switch is designed for small offices and enterprises. It has eight ports that support Power over Ethernet (PoE), supplying up to 30 W per port, with a total of 125 W for all ports. This allows you to power devices like IP cameras and phones without needing extra power outlets. It’s plug-and-play, so installation is quick and easy. The fanless design ensures quiet operation, and it’s suitable for both desktop and rackmount use.

17,200.00 KSh 17200.0 KES 17,200.00 KSh Tax Excluded

17,200.00 KSh Tax Excluded

Contact us for this product

This combination does not exist.

D-Link DGS-1008MP | 8-port Unmanaged PoE Switch

The D-Link DGS-1008MP 8-Port Desktop Gigabit PoE Switch is designed for small offices and enterprises. It has eight ports that support Power over Ethernet (PoE), supplying up to 30 W per port, with a total of 125 W for all ports. This allows you to power devices like IP cameras and phones without needing extra power outlets. It’s plug-and-play, so installation is quick and easy. The fanless design ensures quiet operation, and it’s suitable for both desktop and rackmount use.

D-Link DGS-1008MP details

Technical Specifications

Network Ports & Connectivity

  • 5 ports: 10/100/1000 Mbps Ethernet (auto-negotiation)
  • Auto MDI/MDI-X adjustment for all ports
  • Media interface exchange: UTP CAT 3/4/5/5e, EIA/TIA-568 100-ohm STP
  • 8K MAC address table
  • LED indicators: Activity/Link and Speed per port

Performance & Management

  • Switching capacity: 16 Gbps
  • Data transfer rates: 10 Mbps (half duplex), 20 Mbps (full duplex), 100 Mbps (half duplex), 200 Mbps (full duplex), 2000 Mbps (full duplex)
  • Packet forwarding rate: 14,880 pps (Ethernet), 148,800 pps (Fast Ethernet), 1,488,000 pps (Gigabit Ethernet)
  • RAM buffer: 256 KB per device
  • Transmission method: Store-and-forward

PoE (Power over Ethernet)

  • PoE standards: 802.3af/802.3at
  • PoE capable ports: Ports 1-4, up to 30W per port
  • Total PoE power budget: 68W

Physical & Environmental

    • Dimensions: 5.5” x 3.0” x 1.06” (190 mm x 120 mm x 38 mm)
    • External DC input: 53.5 V / 1.5 A power adapter
    • Operating temperature: 0 to 40 ˚C (32 to 104 ˚F)
    • Storage temperature: -40 to 70 ˚C (-40 to 158 ˚F)
    • Operating humidity: 0% to 95% RH non-condensing
    • Certifications: CE, RoHS

Box Contents

Your D-Link DGS-1008MP box comes with:

Your Switch

  • D-Link DGS-1008MP PoE switch console

Accessories

  • Power Cable
  • Console Cable( Optional )

Additional items

  • User Guide
  • Rackmount brackets
