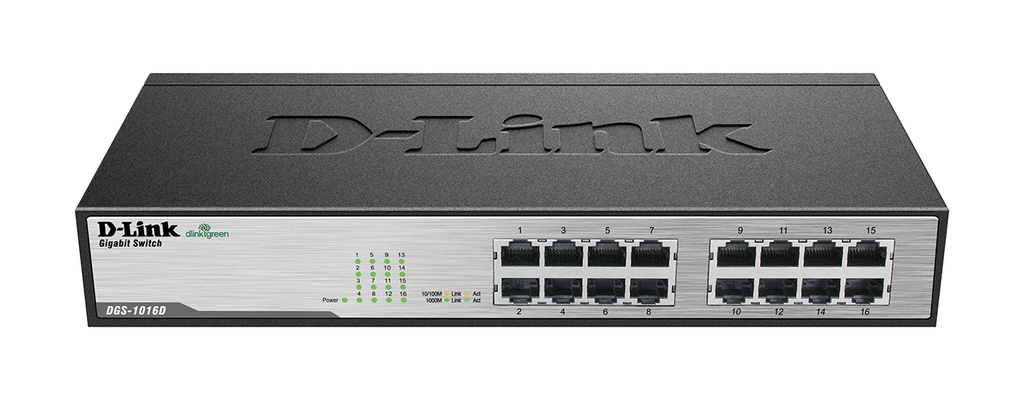

D-Link DGS-1016 | 16-Port Gigabit Unmanaged Desktop Switch
The D-Link DGS-1016D is a powerful and reliable 16-port Gigabit switch designed to enhance network performance and efficiency.
Its compact design and easy-to-use features make it ideal for small and medium-sized businesses, workgroups, and home offices.
With advanced features like 802.1p QoS, non-blocking switching architecture, and D-Link Green technology, the DGS-1016D delivers exceptional performance and energy efficiency.
Its compact design and easy-to-use features make it ideal for small and medium-sized businesses, workgroups, and home offices.
With advanced features like 802.1p QoS, non-blocking switching architecture, and D-Link Green technology, the DGS-1016D delivers exceptional performance and energy efficiency.
Documents
D-Link DGS-1016D | 16-port Gigabit Unmanaged Desktop Switch
The D-Link DGS-1016D is a powerful and reliable 16-port Gigabit switch designed to enhance network performance. It offers high-speed data transfer, seamless connectivity, and efficient operation. With features like non-blocking switching architecture, 8K MAC address table, and 802.1p QoS, it ensures smooth network traffic and prioritizes critical data. The switch is easy to install and maintain, thanks to its plug-and-play design and diagnostic tools. Additionally, D-Link Green technology helps reduce energy consumption, making it an environmentally friendly choice.
D-Link DGS-1016 details
Technical Specifications
Network Ports & Connectivity
- 16 x RJ-45 ports (10BASE-T, 100BASE-TX & 1000BASE-T)
- Non-blocking switching architecture
- 8K MAC address table
- Plug-and-play design
- Diagnostic LEDs for activity/link and speed
Performance & Management
- 32Gbps forwarding capacity
- Store-and-Forward transmission method
- 802.1p QoS with 4 queues
- Packet buffer memory: 512KBytes per device
- MTBF: 828,109 hours
Security & VLAN Features
- IEEE 802.1p Priority Queuing
- Flow control support (802.3x)
Physical & Environmental
- Operating temperature: 32° to 104°F (0° to 40°C)
- Storage temperature: 14° to 131°F (-10° to 55°C)
- Weight: 2.97 lbs (1.35kg)
- Dimensions: 11in x 7.1in x 1.75in (281.9mm x 180.3mm x 44.5mm)
- Power supply: 100-240VAC, 50/60 Hz Internal Universal Power
Box Contents
Your D-Link DGS-1016 box comes with:
Your Switch
- D-Link DGS-1016 switch console
Accessories
- Power cord
- Ethernet cables (optional)
- Rubber feet for desktop placement
Additional items
- User Guide
