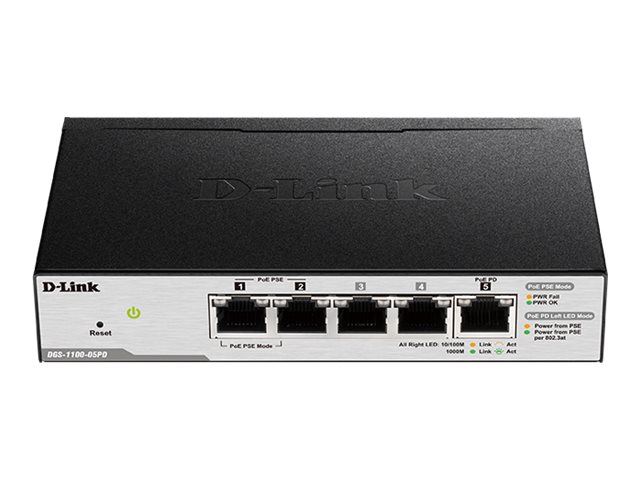

D-Link DGS-1100-05PD/U 2-Ports 10/100/1000Mbps PoE + 3-Ports 10/100/1000Mbps with 1 PD ( PoE powered ) port Smart Switch,Max PoE Power budget 18W with 802.3at input / 8W with 802.3af input

Device type - Switch - 5 ports - Smart

Type - desktop

Sub type type - Gigabite Ethernet

Ports : 2 x 10/100 (PoE +) + 3 x 10/100/1000

Power Over Ethernet : (PoE)PoE

PoE budget - 18 W

PerformanceSwitching capacity: 10 Gbit / s
Forwarding performance: 7.4 Mpps

CapacityVLAN groups: 32
IGMP Group: 32
Queues per port: 4
MAC address entries: 32

MAC Address Table : 2,000 entries

Jumbo Frame Support : 9216 Byte

Flowcontrol, BOOTP support, IGMP snooping, port mirroring, Quality of Service (QoS), Cable Diagnostics Function, bandwidth control, IPv4 support, fanless, DHCP client, tagged VLAN

IEEE 802.3,IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3q

Flash memory2 MB

Expansion / Connectivity

Interfaces2 x Gigabit LAN - RJ-45 - PoE + - 15.4 W
2 x Gigabit LAN - RJ-45
1 x Gigabit LAN - RJ-45 - PoE input

power supply

Power:  Device Current injector

Features : PoE powered

Measurements

Width : 15 cm

Depth : 9.7 cm

Height2.8 cm

Environmental Conditions

Min Operating Temperature - 0 ° C

Max. Operating Temperature - 40 ° C

Humidity Range Operating0 - 95% (non-condensing)

Min. Storage Temperature- 40 ° C

Max. Storage temperature - 70 ° C

Humidity Range Storage0 - 95% (non-condensing)
