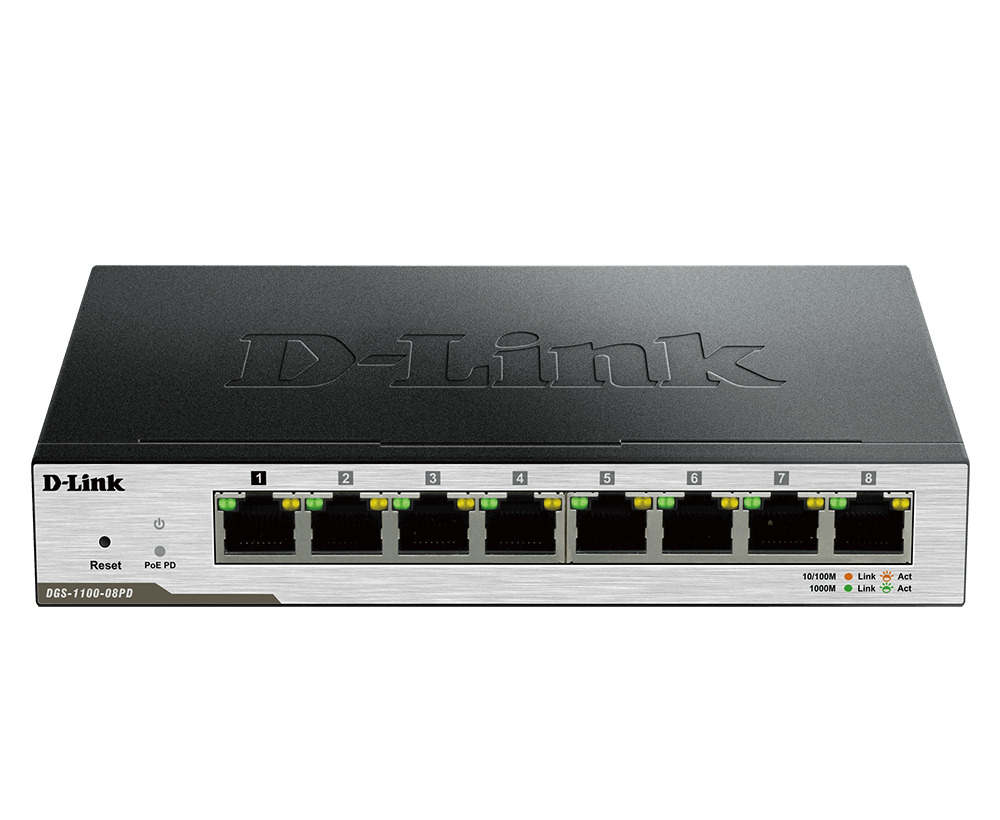

D-Link DGS-1100-08PD/E 8- port 10/100/1000Mbps ports with 1 PD port Smart switch PoE Powered or powered by external power adaptor
D-Link DGS-1100-08PD/E 8- port 10/100/1000Mbps ports with 1 PD port Smart switch PoE Powered or powered by external power adaptor
Part Number: DGS-1100-08PD/E
Description:
The DGS-1100-08PD is a switch designed
to meet the requirements of small, medium, and enterprise businesses.
Advanced management features, a range of diagnostic and troubleshooting
tools, and energy efficient technologies provide a flexible solution to
meet your networking requirements.
D-Link Green/Power Saving Performance
Compliant with IEEE 802.3az Energy
Efficient Ethernet (EEE), the DGS-1100 Series consumes less energy by
cutting down on power consumption when port utilization is low. By
deploying compatible devices, users can cut operating costs and even cut
down on additional cooling equipment, helping small and medium-sized
businesses stay within their budgets. The DGS-1100 Series also features
D-Link Green technology that helps save energy automatically. The
switches monitor the link status of every port and significantly reduce
power consumption of the interface when there is no link or network
traffic detected.
Easy to Deploy
The DGS-1100 Series supports an
intuitive client-based utility (D-Link Network Assistant) and a
web-based management interface. The client-based D-Link Network
Assistant (DNA) discovers all D-Link Smart Managed Switches within the
same Layer 2 network segment, making the initial setup quick and easy.
This allows extensive switch configuration and basic administration of
discovered devices, including password changes and firmware upgrades.
The web-based interface provides a user-friendly way for network
administrators to manage the switch down to the port level. The
interface can be accessed from a web browser, allowing the switches to
be controlled from any PC that is connected to the network.
Surveillance VLAN and Bandwidth Control
The DGS-1100 Series supports
Surveillance VLAN for IP surveillance deployments. This gives video
traffic a dedicated VLAN and higher priority through the switch,
separating surveillance traffic from the rest of the network. This
ensures security and guarantees the quality of the video traffic,
sparing businesses the added cost of dedicated surveillance hardware.
Bandwidth Control can reserve bandwidth on a per-port basis for
important functions that require larger bandwidth or have higher
priority.
Advanced Features
The DGS-1100 Series is equipped with
advanced security features such as Static MAC, Storm Control, and IGMP
Snooping. Static MAC allows users to create a MAC whitelist for specific
ports, helping administrators limit network access to authorized
devices only. Storm Control monitors broadcast, multicast, or unknown
unicast traffic and will start blocking or discarding packets which
could flood the network when the defined threshold is exceeded. IGMP
Snooping is able to reduce the load of L3 multicast routers and save
bandwidth in network throughput.
Easy Troubleshooting
The DGS-1100 Series features Loopback
Detection and Cable Diagnostics to help network administrators find and
solve network problems quickly and easily. Loopback Detection is used to
detect loops created by a specific port and automatically shuts down
the affected port. Cable Diagnostics helps network administrators
quickly examine the quality of the copper cables, recognize the cable
type, and detect cable errors.
General features:
Number of Ports
• 8 10/100/1000 Mbps
Port Functions
• IEEE 802.3 for Ethernet
• IEEE 802.3u for Fast Ethernet
• IEEE 802.3ab for Gigabit Ethernet
• Auto-negotiation
• Supports half/full-duplex operation (half at 10/100 Mbps, full at 1000 Mbps)
• Auto MDI/MDIX
• IEEE 802.3x Flow Control supports full-duplex mode
• IEEE 802.3az compliant
Switching Capacity
• 6 Gbps
Maximum Forwarding Rate
• 11.9 Mpps
MAC Address Table Size
• 8K entries
Packet Buffer
• 4.1 Mbits
Flash Memory
• 32 Mbytes
Power Consumption
• Standby Mode: 1.97 W
• Maximum Power Consumption: 4.72 W
Power Input
• 100 to 240 V AC 50 to 60 Hz external power adapter
• 802.3af PoE power via PD port
MTBF
• 648,153 hours
Acoustics
• 0 dB(A)
Heat Dissipation
• 52 BTU/hr
Weight
• 0.45 kg
Dimensions
• 171 x 98 x 27.5 mm
Ventilation
• Fanless
Operating Temperature
• 0 to 40 A°C
Storage Temperature
• -40 to 70 A°C
Operating Humidity
• 0% to 90% RH, non-condensing
Storage Humidity
• 0% to 95% RH, non-condensing
EMI
• FCC Class B, CE Class B, VCCI Class B, BSMI, CCC
Safety
• cUL, CE LVD, CB, BSMI, CCC
VLAN
• Port-based VLAN
• 802.1Q tagged VLAN
• Surveillance VLAN
• Voice VLAN
• Management VLAN
• VLAN Group
• Supports 32 static VLAN groups
• Max. 4094 VIDs
• Asymmetric VLAN
L2 Features
• Flow Control: 802.3x Flow Control, HOL Blocking Prevention
• Jumbo frames up to 9216 bytes
• IGMP Snooping: IGMP v1/v2 Snooping, Supports 128 Groups
• Static Trunk: 2 groups
• Loopback Detection
• Cable diagnostics
• Port mirroring: One-to-One, Many-to-One
• Statistics: Tx Ok, Tx Error, Rx Ok, Rx Error
Quality of Service (QoS)
• 802.1p Quality of Service
• 4 queues per port
• Queue handling: Strict, Weighted Round Robin (WRR)
• Bandwidth control: Port-based (Ingress/Egress, min granularity 16 Kb/s)
• DSCP
Security
• Static MAC addresses: Up to 32 entries
• Traffic segmentation
• Broadcast/Multicast/Unknown Unicast Storm Control
• Port security
Management
• Web-based GUI (Supports IPv4)
• D-Link Network Assistant (DNA)
D-Link Green
• Compliant with RoHS 6
• Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE)
RFC Standard List
• RFC768 UDP
• RFC791 IP
• RFC792 ICMP
• RFC793 TCP
• RFC826 ARP
• IEEE 802.1p
• RFC2236, IGMP Snooping
• RFC1213 MIBII
• RFC1215 MIB Traps Convention
