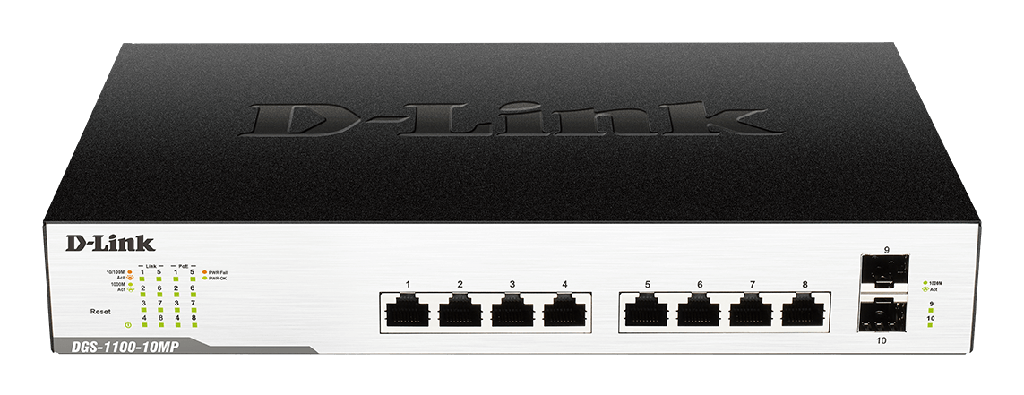

D-Link DGS-1100-10MP   8 Ports 10/100/1000Mbps PoE+ Smart Gigabit Switch with 2 SFP ports, 130W PoE power budget

Part Number: DGS-1100-10MP

D-Link’s DGS-1100 Series provide an affordable solution for SOHOs and Small and Medium Businesses as well as enterprise deployment, such as in branch offices and meeting rooms that require simple network management. Most models comes in a compact desktop-sized metal case and features a wide selection of Gigabit port configurations with optional Gigabit fibre uplink ports. There are 4 switches in the series supporting Power-over-Ethernet with 2 of the switches in the offering high-power-budget PoE for businesses looking to power VoIP phones, wireless access points or network cameras. The 10-port DGS-1100-10MP supports up to 30W on eight ports with a power budget of 130W, whereas the DGS-1100-26MP provides 24 PoE-enabled ports, a power budget of 370W, and all PoE-enabled ports supports up to 30W. Advanced management features, diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to suit your networking requirements.

Easy to deploy

The DGS-1100 Series supports an intuitive D-Link Network Assistant Utility and a web-based management interface. The D-Link Network Assistant Utility allows customers to discover all switches in the D-Link Smart Managed Switch family within the same L2 network segment. With this utility, users do not need to change the IP address of their PC, which also makes the initial setup of the Smart Managed Switches quick and easy. Switches within the same L2 network segment that are connected to the user’s PC are displayed on-screen for instant access. This allows for extensive switch configuration and basic setup of discovered devices, including password changes and firmware upgrades. The graphic web-based management interface provides a user-friendly interface that enables network administrators to remotely control their network down to the port level.

Auto Surveillance VLAN and Bandwidth Control

The DGS-1100 Series supports Auto Surveillance VLAN (ASV), and Auto Voice VLAN, which are best suited for VoIP and video surveillance deployments. Auto Surveillance VLAN consolidates data and surveillance video transmission through a single DGS-1100 Series switch, thus sparing businesses the expense of dedicated hardware and facilities. ASV also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data. The Auto Voice VLAN technology enhances the VoIP service by automatically placing voice traffic from an IP phone to an assigned VLAN. With higher priority and individual VLAN, these features guarantee the quality and security of VoIP traffic. Bandwidth Control can reserve bandwidth on a per port basis for important functions that require larger bandwidth or have high priority.

Easy Troubleshooting

The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors.

Advanced Features

DGS-1100 Series is equipped with advanced security features such as Static MAC, Storm Control, and IGMP Snooping. Static MAC allows users to create a MAC whitelist for specific ports, helping administrators limit network access to authorised devices only. Storm Control monitors broadcast, multicast, or unknown unicast traffic and will start blocking or discarding packets which could flood the network when the defined threshold is exceeded. IGMP Snooping is able to reduce the loading of L3 multicast routers and save bandwidth in network throughput.

PoE Support

The DGS-1100-08P/24P/10MP/26MP provide support for Power over Ethernet (PoE), reducing deployment time for IP cameras, VoIP phones, and access points. Dedicated power adapters are no longer required, as the DGS-1100-24P/10MP/26MP comply with IEEE 802.3af and 802.3at PoE standards and provide up to 30 watts per port. The DGS-1100-08P complies with the 802.3af standard and provides up to 15.4 watts per poor.

Features

Physical
•Various selection of port counts, with or without PoE and fiber support

• Fanless design for silent operation (non-PoE models only)

Green Technology
•Link Status detection
•IEEE 802.3az compliant
•Time-based PoE (PoE models excluding DGS-1100-08P)

Advanced Features
•IGMP Snooping
•Bandwidth Control
•IEEE 802.1Q VLAN traffic segregation
•Port-based VLAN
•IEEE 802.1p QoS
•Surveillance VLAN
•Voice VLAN

Management Features
•Client-based utility or web-based GUI
•Built-in SNMP MIB1
•Surveillance Features (MP Models)
•Full PoE budget and ultra-high power ports
•Per-port 6 kV surge protection

Technical Specifications

Interface

Number of 10/100/1000BASE-TX ports
•DGS-1100-08 - 8 ports
•DGS-1100-08P - 8 ports
•DGS-1100-10MP - 10 ports
•DGS-1100-16 - 16 ports
•DGS-1100-18 - 16 ports
•DGS-1100-24 - 24 ports
•DGS-1100-24P - 24 ports
•DGS-1100-26 - 24 ports
•DGS-1100-26MP - 24 ports

Number of SFP ports

•DGS-1100-10MP - 2 ports
•DGS-1100-18 - 2 ports
•DGS-1100-26 - 2 ports

Number of combo ports
•DGS-1100-26MP - 2 ports

PoE Supported Models (Standard(s)/Number of Ports/Maximum Power Budget)
•DGS-1100-08P (802.3af/8 ports/64W)
•DGS-1100-10MP (802.3af/802.3at/8 ports/130W)
•DGS-1100-24P (802.3af/802.3at/12 ports/100W)
•DGS-1100-26MP (802.3af/802.3at/24 ports/370W)

Performance

Switch Capacity
•DGS-1100-08 - 16 Gbps
•DGS-1100-08P - 16 Gbps
•DGS-1100-10MP - 20 Gbps
•DGS-1100-16 - 32 Gbps
•DGS-1100-18 - 36 Gbps
•DGS-1100-24 - 48 Gbps
•DGS-1100-24P - 48 Gbps
•DGS-1100-26 - 52 Gbps
•DGS-1100-26MP - 52 Gbps

Maximum Forwarding Rate

•DGS-1100-08 - 11.9 Mpps
•DGS-1100-08P - 11.9 Mpps
•DGS-1100-10MP - 14.88 Mpps
•DGS-1100-16 - 23.81 Mpps
•DGS-1100-18 - 26.79 Mpps
•DGS-1100-24 - 35.71 Mpps
•DGS-1100-24P - 35.71 Mpps
•DGS-1100-26 - 38.69 Mpps
•DGS-1100-26MP - 38.69 Mpps

MAC Address Table Size

•DGS-1100-08 - 8K
•DGS-1100-08P - 8K
•DGS-1100-10MP - 16K
•DGS-1100-16 - 8K
•DGS-1100-18 - 16K
•DGS-1100-24 - 8K
•DGS-1100-24P - 8K
•DGS-1100-26 - 16K
•DGS-1100-26MP - 16K

Packet Buffer

•DGS-1100-08 - 2 Mbits
•DGS-1100-08P - 2Mbits
•DGS-1100-10MP - 1.5 Mbits
•DGS-1100-16 - 512 Kbits
•DGS-1100-18 - 1.5 Mbits
•DGS-1100-24 - 512 Kbits
•DGS-1100-24P - 512 Kbits
•DGS-1100-26 - 1.5 Mbits
•DGS-1100-26MP - 1.5 Mbits

Flash Memory

•DGS-1100-08 - 2 Mbytes
•DGS-1100-08P - 2 Mbytes
•DGS-1100-10MP - 16 Mbytes
•DGS-1100-16 - 8 Mbytes
•DGS-1100-18 - 8 Mbytes
•DGS-1100-24 - 8 Mbytes
•DGS-1100-24P - 8Mbytes
•DGS-1100-26 - 8 Mbytes
•DGS-1100-26MP - 16Mbytes

Diagnostic LED Indicators

Power (Per Device)
•Yes

Link/Activity/Speed (Per Port)
•Yes

Physical & Environmental

Power Consumption (Maximum)

•DGS-1100-08 - 4.89W
•DGS-1100-08P -78.8W (PoE on)
•DGS-1100-10MP - 141.4W (PoE on)
•DGS-1100-16 - 9.31W
•DGS-1100-18 - 14.88W
•DGS-1100-24 - 13.94W
•DGS-1100-24P - 128.32W (PoE on)
•DGS-1100-26 - 19.04W
•DGS-1100-26MP - 387W (PoE on)

Power Input

•DGS-1100-08/08P - 100 to 240 VAC, 50 to 60Hz external power supply
•DGS-1100-10MP/16/18/24/26/26MP - 100 to 240 VAC, 50 to 60Hz internal universal power supply

Dimensions (W x D x H)

•DGS-1100-08 - 171 x 98 x 28 mm
•DGS-1100-08P - 190 x 120 x 38 mm
•DGS-1100-10MP - 280 x 180 x 44 mm
•DGS-1100-16/18/24/26 - 280 x 180 x 44mm
•DGS-1100-24P - 280 x 230 x 44 mm
•DGS-1100-26MP - 440 x 290 x 44 mm

Weight

•DGS-1100-08 - 0.42 kg
•DGS-1100-08P - 0.706 kg
•DGS-1100-10MP - 1.83 kg
•DGS-1100-16 - 1.53 kg
•DGS-1100-18 - 1.56 kg
•DGS-1100-24 - 1.63 kg
•DGS-1100-24P - 2.15 kg
•DGS-1100-26 - 1.66 kg
•DGS-1100-26MP - 3.81 kg

Ventilation

•DGS-1100-08/08P/16/18/24/26 - fanless
•DGS-1100-10MP/24P - 1 fan
•DGS-1100-26MP - 2 fans

Heat Dissipation

•DGS-1100-08 - 16.68 BTU per hour
•DGS-1100-08P - 268.87 BTU per hour
•DGS-1100-10MP - 570.51 BTU per hour
•DGS-1100-16 - 31.77 BTU per hour
•DGS-1100-18 - 50.77 BTU per hour
•DGS-1100-24 - 47.57 BTU per hour
•DGS-1100-24P - 437.85 BTU per hour
•DGS-1100-26 - 64.97 BTU per hour
•DGS-1100-26MP - 1470.46 BTU per hour

MTBF

•DGS-1100-08 - 503,585 hours
•DGS-1100-08P - 708,219 hours
•DGS-1100-10MP - 291,575 hours
•DGS-1100-16 - 2,827,541 hours
•DGS-1100-18 - 2,671,256 hours
•DGS-1100-24 - 2,406,109 hours
•DGS-1100-24P - 563,292 hours
•DGS-1100-26 - 2,277,645 hours
•DGS-1100-26MP - 269,291 hours

Temperature

•DGS-1100-08/08P - operating: 0° to 40°C (32° to 104°F), storage: -10° to 70°C (14° to 158°F )
•DGS-1100-10MP/16/18/24/24P/26/26MP - operating: -5° to 50°C (23° to 122°F), storage: -40° to 70°C (-40° to 158°F )

Humidity

•DGS-1100-08/08P - operating: 10% ~ 95% Non-condensing, storage: 5% ~ 95% Non-condensing
•DGS-1100-10MP/16/18/24/24P/26/26MP - operating: 0% ~ 95% Non-condensing, storage: 0% ~ 95% Non-condensing

EMI/EMC

•DGS-1100-08/08P - FCC Class A, CE Class A, VCCI Class A, C-Tick
•DGS-1100-16/18/24/24P/26 - FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI, CCC
•DGS-1100-10MP/26MP - FCC/IC, CE, VCCI, RCM, BSMI

Safety

•DGS-1100-08/08P - cUL, CE LVD
•DGS-1100-16/18/24/24P/26 - cUL, CE LVD, CB, BSMI, CCC
•DGS-1100-10MP/26MP - cUL, UL, GS, CB

Software Features (DGS-1100-10MP/16/18/24/24P/26P/26MP)

VLAN

•Port-based VLAN
•802.1Q tagged VLAN
•Auto Surveillance VLAN
•Voice VLAN
•Management VLAN
•Asymmetric VLAN
•VLAN Group ?Supports 128 static VLAN groups
  Max. 4094 VIDs

L2 Features

•Flow Control ?802.3x Flow Control
  HOL Blocking Prevention

•Jumbo Frames up to 9216 Bytes
•IGMP Snooping ?IGMP v1/v2/v3 awareness Snooping
  Supports 64 Groups
  IGMP Snooping Querier

•802.3ad Link Aggregation: ?DGS-1100-16: Support max 8 groups per device and 8 ports per group
  DGS-1100-10MP: Support 5 groups per device and 8 ports per group
  DGS-1100-18: Support max 9 groups per device and 8 ports per group
  DGS-1100-24P: Support max 12 groups per device and 8 ports per group
  DGS-1100-26: Support max 13 groups per device and 8 ports per group
  DGS-1100-26MP: Support 13 groups per device and 8 ports per group

•Loopback Detection Ethernet Ring Protection Switching2 ?G.8032 ERPS

•Cable Diagnostics
•LLDP
•Port Mirroring ?One-to-One
  Many-to-One

•Statistics ?Tx Ok
  Tx Error
  Rx Ok
  Rx Error

•Spanning Tree Protocol ?802.1D STP
  802.1w RSTP

  Quality of Service (QoS)

•802.1p Quality of Service
•4 queues per port
•Queue Handling ?Strict
  Weighted Round Robin (WRR)

•Port-based Bandwidth Control (Rate Limiting) ?Ingress: 8 Kbps
  Egress: 64 Kbps

  Security

•D-Link Safeguard
•Traffic Segmentation
•Broadcast/Multicast/Unknown Unicast Storm Control
•DoS Attack Prevention
•SSL

Management

•Web-based GUI (Supports IPv4/IPv6)
•D-Link Network Assistant Utility

Green Technology

•Power Saving by ?Link Status
  LED Shut-Off
  Port Shut-Off
  System Hibernation

•Compliant with IEEE 802.3az Energy Efficient Ethernet

MIB/RFC Standards

•RFC 768 UDP
•RFC 791 IP
•RFC 792 ICMP
•RFC 793 TCP
•RFC 826 ARP
•RFC 1213 MIB II
•RFC1493 Bridage MIB
•RFC1907 SNMPv2 MIB
•RFC1215 MIB Traps Convention
•RFC2233 Interface Group MIB
•RFC2665 Ether-like MIB
•802.1p MIB RFC4363
•ZoneDefense MIB
•Private MIB
•RFC 951 BootP client
•RFC 1542 BootP/DHCP client
•RFC 4363 802.1p
•RFC 2236 IGMP Snooping

Software Features (DGS-1100-08/08P)

VLAN

•Port-based VLAN
•802.1Q tagged VLAN
•Surveillance VLAN
•Voice VLAN
•Management VLAN
•VLAN Group ?Supports 32 static VLAN groups
  Max. 4094 VIDs

 L2 Features

•Flow Control ?802.3x Flow Control
  HOL Blocking Prevention

•Jumbo Frames up to 9216 Bytes
•IGMP Snooping ?IGMP v1/v2 Snooping
  Supports 32 Groups

•Static Trunk ?2 groups, 2-4 ports per group

•Loopback Detection
•Cable Diagnostics
•Port Mirroring ?One-to-One

•Statistics ?Tx Ok
  Tx Error
  Rx Ok
  Rx Error

  Quality of Service (QoS)

•802.1p Quality of Service
•4 queues per port
•Queue Handling ?Strict
  Weighted Round Robin (WRR)

•Bandwidth Control ?Port-based (Ingress/Egress, min. granularity 8 Kb/s)

  Security

•Static MAC Address ?up to 32 entries

•Broadcast/Multicast/Unknown Unicast Storm Control

Management

•Web-based GUI (Supports IPv4)
•Client-based Utility (SmartConsole Utility)

D-Link Green

•Power Saving by ?Link Status

Cable Length

•Compliant with IEEE 802.3az Energy Efficient Ethernet
•Compliant with RoHS 6

RFC Standard List

•RFC 768 UDP
•RFC 791 IP
•RFC 792 ICMP
•RFC 793 TCP
•RFC 826 ARP
•RFC 951 BootP client
•RFC 1542 BootP/DHCP client
•RFC 1945 HTTP/1.0
•RFC 2647 802.1p
•RFC 2236, 4451 IGMP Snooping 1 Supported by the DGS-1100-10MP/16/18/24/24P/26/26MP


  2 For DGS-1100-10MP/26MP only
