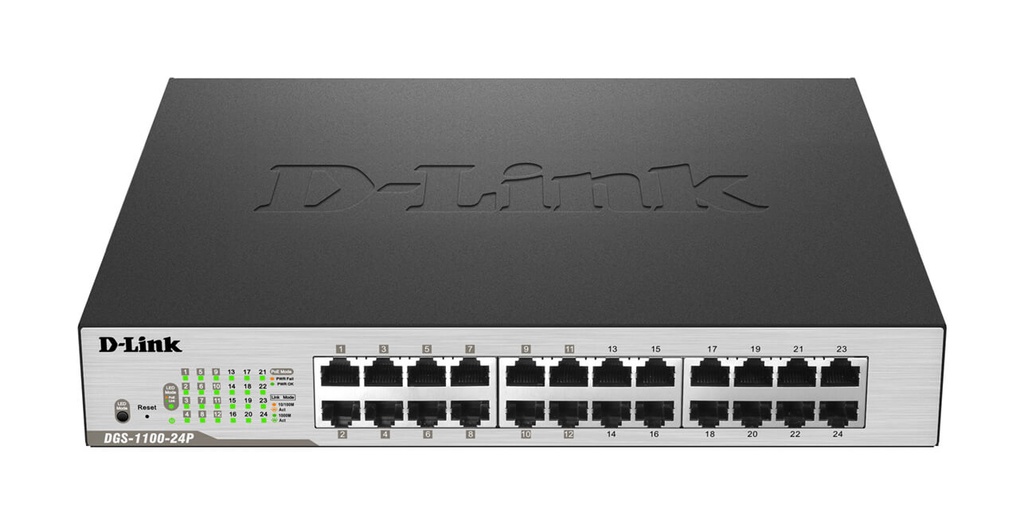

D-Link DGS-1100-24P 12-Ports 10/100/1000Mbps PoE + 12-Ports 10/100/1000Mbps Smart Switch, 100W PoE Power budget (EU/UK Plug)
D-Link DGS-1100-24P 12-Ports 10/100/1000Mbps PoE + 12-Ports 10/100/1000Mbps Smart Switch, 100W PoE Power budget (EU/UK Plug)
Part Number: DGS-1100-24P
Description
D-Link’s DGS-1100 Series provide an affordable solution for SOHOs and Small and Medium Businesses as well as enterprise deployment, such as in branch offices and meeting rooms that require simple network management.
D-Link Green/Power Saving Performance
Compliant with IEEE802.3az Energy Efficient Ethernet, these switches
consume less energy by cutting down on power consumption when port
utilization is low. By deploying IEEE devices, users can cut operating
costs and even cut down on necessary cooling equipment, helping small
and medium-sized businesses stay within their budgets. The DGS-1100
Series also features D-Link Green Technology that helps save energy
automatically. The switches monitor the link status of every port and
will drastically reduce power consumption when a port link is down.
Easy to deploy
The DGS-1100 Series supports an intuitive Client-based utility
(SmartConsole Utility or D-Link Network Assistant Utility) and a
web-based management interface. The Client-based Utility allows
customers to discover all switches in the D-Link Smart Switch family
within the same L2 network segment. With this utility, users do not need
to change the IP address of their PC, and this also makes initial setup
of the Smart Switches quick and easy. Switches within the same L2
network segment that are connected to the user’s PC are displayed
on-screen for instant access. This allows for extensive switch
configuration and basic setup of discovered devices, including password
changes and firmware upgrades. The graphic web-based
management interface provides a user-friendly interface that enables
network administrators to remotely control their network down to the
port level.
Auto Surveillance VLAN and Bandwidth Control
The DGS-1100 Series supports Surveillance VLAN for video
surveillance deployment. Surveillance VLAN gives video traffic high
priority and an individual VLAN, guaranteeing the quality of
surveillance traffic through a single DGS-1100 switch, thus sparing
businesses the added expenses required for dedicated hardware and
facilities. Bandwidth Control can reserve bandwidth on a per port basis
for important functions that require larger bandwidth or might have high
priority.
Advanced Features
DGS-1100 Series is equipped with advanced security features such as
Static MAC, Storm Control, and IGMP Snooping. Static MAC allows users to
create a MAC whitelist for specific ports, helping administrators limit
network access to authorized devices only. Storm Control monitors
broadcast, multicast, or unknown unicast traffic and will start blocking
or discarding packets which could flood the network when the defined
threshold is exceeded. IGMP Snooping is able to reduce the loading of L3
multicast routers and save bandwidth in network throughput.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics
to help network administrators find and solve network problems quickly
and easily. Loopback Detection is used to detect loops created by a
specific port and automatically shuts down the affected port. Cable
Diagnostics helps network administrators quickly examine the quality of
the copper cables, recognize the cable type, and detect cable errors.
PoE Support
The DGS-1100-24P and DGS-1100-08P provide support for Power
over Ethernet (PoE), making deployment with IP cameras, VoIP phones, and
access points much easier. Power cords will become a thing of the past,
as the DGS-1100-24P complies with the 802.3af/802.3at standard for PoE
and supports a 100 watt power budget. The DGS-1100-08P complies with
the 802.3af standard for PoE and supports a 64 watt power budget. The
Gigabit Ethernet ports mean that even high-quality video is no problem.
