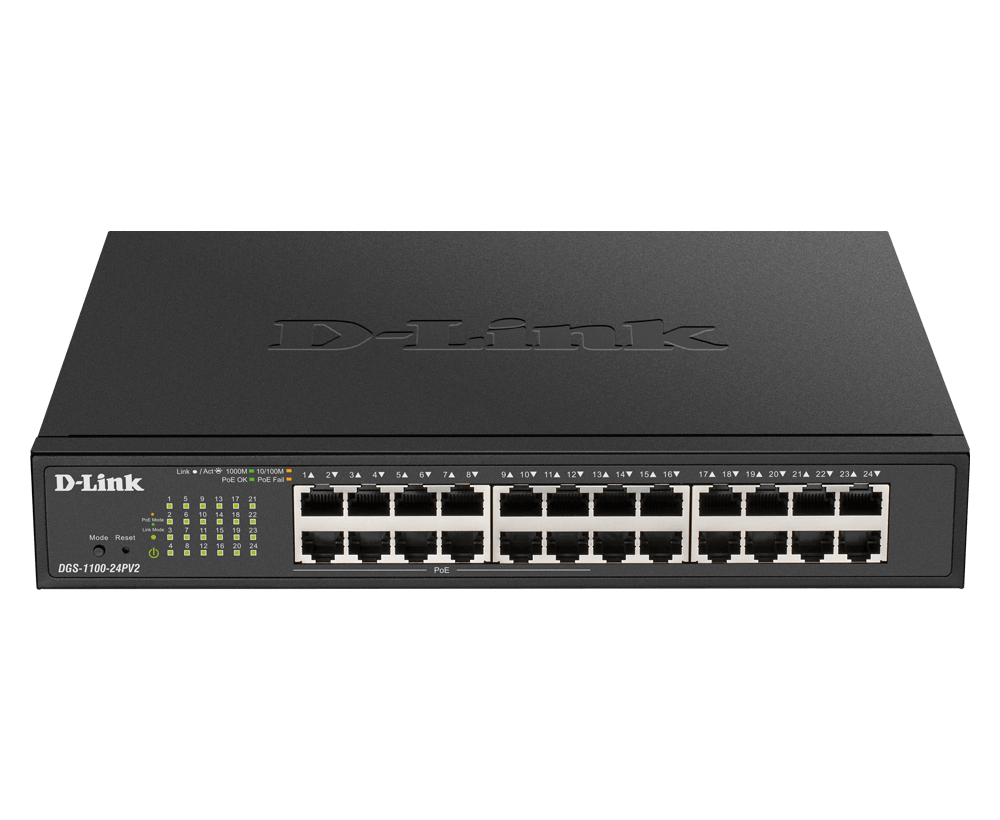

D-Link DGS-1100-24PV2 12-Ports 10/100/1000Mbps PoE + 12-Ports 10/100/1000Mbps Smart Switch, 100W PoE Power budget (EU/UK Plug)

D-Link DGS-1100-24PV2 12-Ports 10/100/1000Mbps PoE + 12-Ports 10/100/1000Mbps Smart Switch, 100W PoE Power budget (EU/UK Plug)

Part Number: DGS-1100-24PV2

A powerful switch with a feature set making it as flexible as you need it to be, great for a variety of deployments

12 x 10/100/1000Base-T Ports

12 x 10/100/1000Base-T PoE Ports

100W PoE Power Budget

Fanless design for silent operation

Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs

Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery

Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security

IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic

Innovative energy saving features are good for your budget, as well as the environment

Get up and going quickly with streamlined first-time setup and ongoing management

Specifications

Auto MDI/MDIX Yes

10/100/1000BASE-T PoE ports 12

10/100/1000BASE-T ports 12

Port-based Bandwidth Control Yes

Class of Service (CoS) Yes

802.3x Flow Control Yes

Store-and-Forwarding Yes

Comply with RoHS 6 Yes

Energy Efficiency Ethernet (EEE) Yes

FAN Fanless

Jumbo Frame 9216 bytes

Loopback Detection (LBD) Yes

IGMP Snooping Yes

802.1AX Link Aggregation Yes

802.3ad Link Aggregation Yes

SNMP Yes

Web-based GUI Yes

D-Link Discover Protocol (DDP) Yes (v0.25)

D-Link Network Assistant Yes

Port Mirroring Yes

Cable Diagnostics Yes

Switch Capacity 48 Gbps

Max. Packet Forwarding Rate 35.71 Mpps

Maximum PoE Budget 100W

PoE Budget 100 W (30 W max. per PoE port)

Rate Limiting Yes

Power Input AC: 100-240V

Queue Handling Yes

Strict Priority Queue (SPQ) Yes

Weighted Round Robin (WRR) Yes

SSL Yes

Broadcast/Multicast/Unicast Storm Control Yes

Traffic Segmentation Yes

D-Link Safeguard Engine Yes

DoS Attack Prevention Yes

802.1D Spanning Tree (STP) Yes

802.1w Rapid Spanning Tree (RSTP) Yes

Dimension 280x 230x 44mm

Weight 2.20 Kg

Operation Temperature -5-50°C

802.1Q VLAN Yes

Port-based VLAN Yes

Voice VLAN Yes

Auto Surveillance VLAN Yes

Asymmetric VLAN Yes

Product Datasheet
