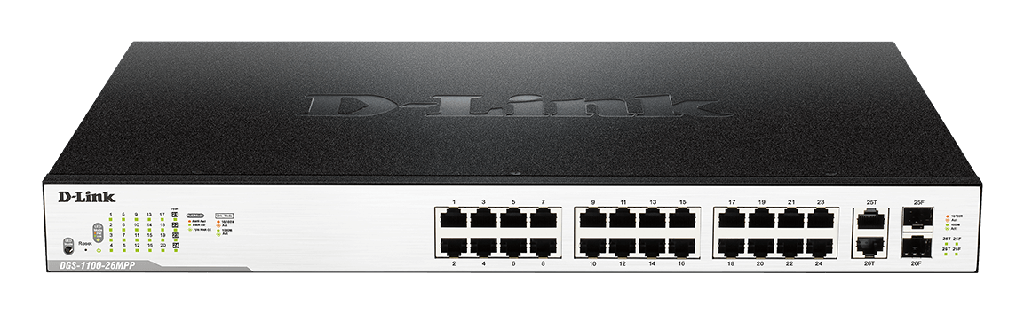

D-Link DGS-1100-26MPP 24 Ports 10/100/1000Mbps PoE++ Smart Gigabit Switch with 2 combo 1000Base-T/ SFP ports, 518W PoE power budget, upto 75W on 21-24 ports

https://www.redstarafrica.com/web/image/product.template/11368/image_1920?unique=b89ffbf

60,900.00 KSh 60900.0 KES 60,900.00 KSh Tax Excluded

60,900.00 KSh Tax Excluded

Contact us for this product

This combination does not exist.

Contact Us

Terms and Conditions

D-Link DGS-1100-26MPP   24 Ports 10/100/1000Mbps PoE++ Smart Gigabit Switch with 2 combo 1000Base-T/ SFP ports, 518W PoE power budget, upto 75W on 21-24 ports

Part Number: DGS-1100-26MPP

Description

The DGS-1100 MP/MPP Series is a range of switches designed to meet the surveillance requirements of small, medium, and enterprise businesses. Support for high-powered Pan Tilt Zoom (PTZ) cameras, an automatic Surveillance VLAN, and 6 kV surge protection make the DGS-1100 MP/MPP Series ideal for IP surveillance deployments. A redesigned interface, a range of diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to your surveillance requirements.

Easy to Deploy

An interactive setup wizard removes the complexity from installing the switch for the first time. It allows you to choose the web interface mode (Standard or Surveillance), the IP address allocation method (static or DHCP), and the administrator username and password. This completes the initial setup of the switch and automatically configures features such as Loop Detection, DHCP Snooping, SNMP and Surveillance VLAN. An informative quick start guide shows you how to use the network diagram, and a network overview is displayed on the next page. D-Link and 3rd party devices are automatically detected and shown on the network overview page for easy administration.

Surveillance Traffic Optimization

The DGS-1100 MP/MPP Series supports the automatic Surveillance VLAN feature. This automatically detects surveillance devices and puts them into the Surveillance VLAN, segmenting their traffic from the rest of the network. The ensures security of the data, but also gives the traffic a higher priority through the switch, reducing the chances of the video freezing or being delayed on live streams. A single switch can be used for both surveillance and data networks, removing the need for dedicated surveillance hardware and reducing maintenance costs.

Intuitive Web Interface

A redesigned Surveillance interface makes surveillance features more accessible than ever. The choice between Standard and Surveillance modes can be made during switch set up, allowing the user to choose the interface that best suits their requirements. A network overview shows which devices are connected to which ports, and ONVIF device support allows the switch to recognize both D-Link and 3rd party IP cameras and Network Video Recorders (NVRs). With monitoring, management, and troubleshooting tools built into a single interface, the DGS-1100 MP/MPP Series provides everything you need to manage your surveillance network.

Maximum Reliability

The DGS-1100 MP/MPP Series features 6 kV surge protection on all PoE ports to help prevent damage to the network caused by power surges and lightning strikes. Faulty electrical cabling, faulty network cabling, and lightning strikes can cause damage to the switch and connected devices. In-built surge protection of up to 6 kV can limit the damage to the switch from both indoor and outdoor devices and network connections. This increases network reliability, reduces repair costs and removes the need for replacement hardware in the event of an electrical surge or lightning strike.

Easy Troubleshooting

The DGS-1100 MP/MPP Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection detects loops in the network, where multiple devices have been connected to each other and there is a forwarding loop. The switch will identify the port causing the loop and shut the affected port down to avoid network instability. Cable Diagnostics can be used to remotely test the quality of copper cables, recognize the cable type, and detect cable errors.

PoE Support

The DGS-1100 MP/MPP Series provides support for Power over Ethernet (PoE), reducing deployment time for IP cameras, VoIP phones, and access points. The DGS-1100-10MPP and DGS-1100-26MPP support IEEE 802.3bt,providing up to 75 watts on selected ports for the latest high-powered Pan Tilt Zoom (PTZ) cameras. All switches in the DGS-1100 MP/MPP Series support IEEE 802.3af and 802.3at, providing up to 30 watts per port. This, combined with high power budgets, ensure all of your critical surveillance infrastructure
 can be powered from a single switch.

The DGS-1100 MP Series Gigabit Smart Managed Surveillance PoE+ Switches consists of:

  • DGS-1100-10MP: 10-Port Gigabit Max PoE Smart Managed Switch including 2 SFP ports (8 x PoE ports, 130W PoE budget, fan)
  • DGS-1100-10MPP: 10-Port Gigabit Max PoE Smart Managed Switch including 2 SFP ports (8 x PoE ports, 242W PoE budget, fan)
  • DGS-1100-26MP: 26-Port Gigabit Max PoE Smart Managed Switch including 2 comb ports (24 x PoE ports, 370W PoE budget, fan)
  • DGS-1100-26MPP: 26-Port Gigabit Max PoE++ Smart Managed Switch including 2 comb ports (24 x PoE ports 518W PoE budget, fan)

Features

Optimised for Video Surveillance

  • Surveillance optimised web interface
  • High PoE budget and PoE+ ports
  • Per-port 6 kV surge protection
  • ONVIF support
  • Auto Surveillance VLAN

Advanced Features

  • Bandwidth Control
  • IEEE 802.1Q VLAN traffic segregation
  • Port-based VLAN
  • IEEE 802.1p QoS
  • Voice VLAN

Green Technology

  • Link Status detection
  • IEEE 802.3az compliant
  • Time-based PoE

Management Features

  • Client-based utility or web-based GUI
  • Built-in SNMP MIB

Technical Specifications

Interface

Number of 10/100/1000BASE-TX ports

  • DGS-1100-10MP - 8 ports
  • DGS-1100-10MPP - 8 ports
  • DGS-1100-26MP - 24 ports
  • DGS-1100-26MPP - 24 ports

Number of SFP ports

  • DGS-1100-10MP - 2 ports
  • DGS-1100-10MPP - 2 ports

Number of combo ports

  • DGS-1100-26MP - 2 ports
  • DGS-1100-26MPP - 2 ports

PoE Supported Models (Standard(s)/Number of Ports/Maximum Power Budget)

  • DGS-1100-10MP (802.3af/802.3at/8 ports/130W)
  • DGS-1100-10MPP (802.3af/802.3at/802.3bt draft/UPoE/8 ports/242W)
  • DGS-1100-26MP (802.3af/802.3at/24 ports/370W)
  • DGS-1100-26MPP (802.3af/802.3at/802.3bt draft/UPoE/24 ports/518W)

Performance

Switch Capacity

  • DGS-1100-10MP - 20 Gbps
  • DGS-1100-10MPP - 20 Gbps
  • DGS-1100-26MP - 52 Gbps
  • DGS-1100-26MPP - 52 Gbps

Maximum Forwarding Rate

  • DGS-1100-10MP - 14.88 Mpps
  • DGS-1100-10MPP - 14.88 Mpps
  • DGS-1100-26MP - 38.69 Mpps
  • DGS-1100-26MPP - 38.69 Mpps

MAC Address Table Size

  • 16K

Packet Buffer

  • 1.5 Mbits

Flash Memory

  • 16 Mbytes

Diagnostic LED Indicators

Power (Per Device)

  • Yes

Link/Activity/Speed (Per Port)

  • Yes

Physical & Environmental

Power Consumption (Maximum)

  • DGS-1100-10MP - 141.4W (PoE on)
  • DGS-1100-10MPP - 253W (PoE on)
  • DGS-1100-26MP - 387W (PoE on)
  • DGS-1100-26MP - 539W (PoE on)

Power Input

  • 100 to 240 VAC, 50 to 60Hz internal universal power supply

Dimensions (W x D x H)

  • DGS-1100-10MP - 280 x 180 x 44 mm
  • DGS-1100-10MPP - 280 x 180 x 44 mm
  • DGS-1100-26MP - 440 x 290 x 44 mm
  • DGS-1100-26MPP - 440 x 290 x 44 mm

Weight

  • DGS-1100-10MP - 1.83 kg
  • DGS-1100-10MPP - 1.98 kg
  • DGS-1100-26MP - 3.81 kg
  • DGS-1100-26MPP -  3.9 kg

Ventilation

  • DGS-1100-10MP - 1 fan
  • DGS-1100-10MPP - 1 fan
  • DGS-1100-26MP - 2 fans
  • DGS-1100-26MPP - 2 fans

Heat Dissipation

  • DGS-1100-10MP - 570.51 BTU per hour
  • DGS-1100-10MPP - 1001.12 BTU per hour
  • DGS-1100-26MP - 1470.46 BTU per hour
  • DGS-1100-26MPP - 2079.35 BTU per hour

MTBF

  • DGS-1100-10MP - 291,575 hours
  • DGS-1100-10MPP - 1,719,951 hours
  • DGS-1100-26MP - 269,291 hours
  • DGS-1100-26MPP - 268, 289 hours

Temperature

  • Operating: -5° to 50°C (23° to 122°F)
  • Storage: -40° to 70°C (-40° to 158°F)

Humidity

  • Operating: 0% ~ 95% Non-condensing
  • Storage: 0% ~ 95% Non-condensing

EMI/EMC

  • FCC/IC, CE, VCCI, RCM, BSMI

Safety

  • cUL, UL, GS, CB

Software Features

VLAN

  • Port-based VLAN
  • 802.1Q tagged VLAN
  • Auto Surveillance VLAN
  • Voice VLAN
  • Management VLAN
  • Asymmetric VLAN
  • VLAN Group
    • Supports 128 static VLAN groups
    • Max. 4094 VIDs

L2 Features

  • Flow Control
    • 802.3x Flow Control
    • HOL Blocking Prevention
  • Jumbo Frames up to 9216 Bytes
  • IGMP Snooping
    • IGMP v1/v2/v3 awareness Snooping
    • Supports 64 Groups
    • IGMP Snooping Querier
  • 802.3ad Link Aggregation:
    • DGS-1100-10MP: Support 5 groups per device and 8 ports per group
    • DGS-1100-26MP: Support 13 groups per device and 8 ports per group
  • Loopback Detection Ethernet Ring Protection Switching
    • G.8032 ERPS
  • Cable Diagnostics
  • LLDP
  • Port Mirroring
    • One-to-One
    • Many-to-One
  • Statistics
    • Tx Ok
    • Tx Error
    • Rx Ok
    • Rx Error
  • Spanning Tree Protocol
    • 802.1D STP
    • 802.1w RSTP

Quality of Service (QoS)

  • 802.1p Quality of Service
  • 4 queues per port
  • Queue Handling
    • Strict
    • Weighted Round Robin (WRR)
  • Port-based Bandwidth Control (Rate Limiting)
    • Ingress: 8 Kbps
    • Egress: 64 Kbps

Security

  • D-Link Safeguard
  • Traffic Segmentation
  • Broadcast/Multicast/Unknown Unicast Storm Control
  • DoS Attack Prevention
  • SSL

Management

  • Web-based GUI (Supports IPv4/IPv6)
  • Surveillance Switch Mode
  • D-Link Network Assistant Utility

Green Technology

  • Power Saving by
    • Link Status
    • LED Shut-Off
    • Port Shut-Off
    • System Hibernation
  • Compliant with IEEE 802.3az Energy Efficient Ethernet

MIB/RFC Standards

  • RFC 768 UDP
  • RFC 791 IP
  • RFC 792 ICMP
  • RFC 793 TCP
  • RFC 826 ARP
  • RFC 1213 MIB II
  • RFC1493 Bridage MIB
  • RFC1907 SNMPv2 MIB
  • RFC1215 MIB Traps Convention
  • RFC2233 Interface Group MIB
  • RFC2665 Ether-like MIB
  • 802.1p MIB RFC4363
  • ZoneDefense MIB
  • Private MIB
  • RFC 951 BootP client
  • RFC 1542 BootP/DHCP client
  • RFC 4363 802.1p
  • RFC 2236 IGMP Snooping
