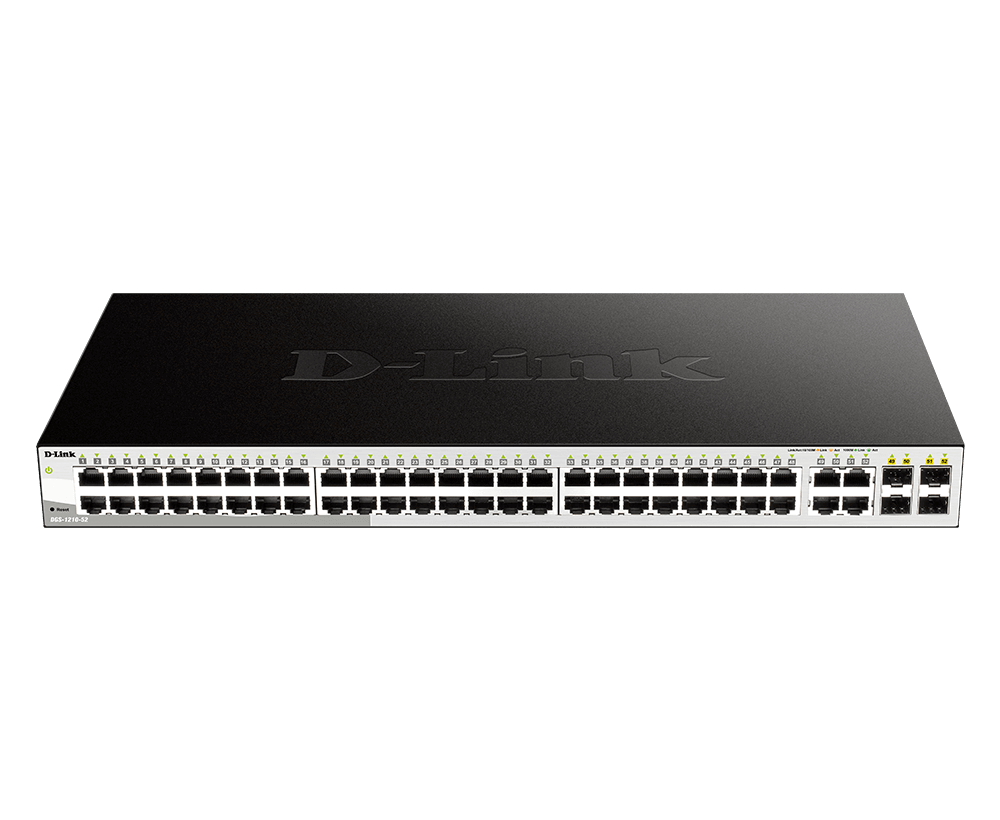

D-Link DGS-1210-52 48-Port 10/100/1000Base-Twith 4 Combo 1000BaseT/SFP ports Smart Switch

https://www.redstarafrica.com/web/image/product.template/11377/image_1920?unique=b89ffbf

46,825.00 KSh 46825.0 KES 46,825.00 KSh Tax Excluded

46,825.00 KSh Tax Excluded

Contact us for this product

This combination does not exist.

D-Link DGS-1210-52 48-Port 10/100/1000Base-Twitch 4 Combo 1000BaseT/SFP ports Smart Switch

Part Number: DGS-1210-52

Overview
The new DGS-1210-28P and DGS-1210-52 are the latest generation of D-Link Web Smart Switches featuring D-Link Green 3.0 technology. The switches comply with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv6 management and configurations ensures your network remains protected after the upgrade from IPv4 to IPv6. By offering multiple management options, the DGS-1210-28P and DGS-1210-52 allow quick deployment, infrastructure expansion, and seamless upgrades. Targeting small and medium sized businesses, these Web Smart Switch provide functionality, security, and manageability for a fraction of the standard cost of ownership.

The DGS-1210-28P is a PoE Web Smart Switch that provides 24 10/100/1000 Base-T PoE ports with 4 Gigabit SFP ports. In addition to IEEE 802.3af compliance, ports 1-4 provide up to 30 watts of power output following IEEE 802.3at. The design allows more flexibility in power allocation for a variety of powered devices with affordable installation costs.

The DGS-1210-52 provides 48 10/100/1000 Base-T ports with 4 Gigabit SFP ports.

Energy Saving
The DGS-1210-28P and DGS-1210-52 are capable of conserving power without sacrificing operational performance or functionality by using D-Link Green 3.0 technology. Using the Energy Efficient Ethernet standard, the network will automatically decrease the power usage when traffic is low with no setup required. For environments not fully supporting the standard, these switches offer advanced power-saving settings including port shutoff and standby, LED shutoff, and system hibernation based on custom time profiles. The time profiles can also be applied to the DGS-1210-28P PoE switch so that unnecessary power consumption can be saved during off hours. The switches can also detect the length of connected cables to automatically reduce power usage on shorter cable connections.

Easy Management
The D-Link Web Smart Switch series is designed for easy management. All configurations can be made through a Web interface regardless of the host PC’s operating system. Furthermore, the web UI contains ten language options to make operations more straightforward. In the intial installation, the Smart Console Utility will automatically discover all D-Link Smart switches in the network, allowing administrators to assign IP addresses and subnet masks quickly. It also allows simultaneous firmware upgrades to multiple switches, saving a great deal of time. Important management commands, such as download firmware or configuration file, can be completed using batch
operations for multiple switches.

Auto Surveillance VLAN and Voice VLAN
The D-link Web Smart series automates the process of setting up IP surveillance and VoIP devices on a network. Auto Surveillance VLAN consolidates data and surveillance video transmission through the network, sparing businesses the expense of maintaining dedicated facilities. ASV also protects the quality of realtime video by grouping IP surveillance devices on a single high priority VLAN. This ensures that surveillance video streams will not be affected when ordinary data traffic is at a high level. Similarly, the Auto Voice VLAN guarantees clear quality and efficient transmission for all voice communication.

Extensive Layer 2 Features
Equipped with a complete lineup of L2 features, these switches include IGMP Snooping, Port Mirroring, Spanning Tree, and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostic feature designed primarily for administrators and customer service representatives, can rapidly discover the type of error and determine the cable quality.

Secure your Network
D-Link’s innovative Safeguard Engine protects the switches against traffic flooding caused by virus attacks. The switches also support 802.1X port-based authentication, allowing the network clients to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and protects the network by screening traffic from illegal MAC or IP addresses. ARP Spoofing Prevention prevents malicious intruders from sending massive fake ARP messages through a manipulated source. This protects important data from being stolen by Man-in-the-Middle attacks, and prevents wasting CPU cycles on these packets. For added security, the DHCP Server Screening feature blocks rogue DHCP server packets from user ports to prevent unauthorized IP assignment.

SPECIFICATION



General
Port Standards & Functions
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
• Auto-negotiation
• IEEE 802.3x Flow Control

Number of Ports
• 48 10/100/1000 Mbps
• 4 Gigabit SFP

Network Cables
• UTP Cat.5, Cat.5e (100m max)
• EIA/TIA-568 100-ohm STP (100m max)

Full/Half Duplex
• Full/half duplex for 10/100Mbps speeds
• Full duplex for Gigabit speed

Media Interface Exchange
• Auto MDI/MDI-X adjustment for all twisted-pair ports

Performance

Switching Capacity
• 104 Gbps

Transmission Method
• Store-and-forward

MAC Address Table
• 16,000 entries per device

MAC Address Update
• Up to 256 static MAC entries
• Enable/disable auto-learning of MAC addresses

Maximum 64 bytes packet forwarding rate
• 77.4 Mpps

Packet Buffer Memory
• 1 MB per device

Physical and Environmental

AC Input
• 100 to 240 VAC 50/60Hz internal universal power supply

Maximum Power Consumption
• 43.5W

Standby Power Consumption
• 20.7W/110V, 22W/240V

Fan Quantity
• Two smart fans

Acoustics
• 47.1 dB(A)

Heat Dissipation
• 148.42 BTU/hr.

Operating Temperature
• 41° to 122°F (-5° to 50°C)

Storage Temperature
• -4° to 158°F (-20° to 70°C)

Operating Humidity
• 0% to 95% non-condensing

Storage Humidity
• 0% to 95% non-condensing

Dimensions
• 17.32 x 9.84 x 1.73 inches; (440 x 250 x 44 mm)
• 19-inch standard rack mounting width, 1U height

Weight
• 9.0 lbs (4.1kg)

Diagnostic LEDs
• Power (per device)
• Link/Activity/Speed (per 10/100/1000Mbps port)
• Link/Activity (per SFP port)
• Fan (per device)

MTBF
• 201,517 hours

Certifications
• FCC Class A
• CE Class A
• ICES-003
• VCCI Class A
• C-Tick
• BSMI

Safety
• cUL
• CE LVD

Software Features

L2 Features
• MAC Address Table
   • 16,000 entries
• Flow Control
   • 802.3x Flow Control
   • HOL Blocking Prevention
• IGMP Snooping
   • IGMP v1/v2 Snooping
   • Supports 256 IGMP groups
   • Supports at least 64 static multicast addresses
   • IGMP per VLAN
   • Supports IGMP Snooping Querier
• Spanning Tree Protocol
   • 802.1D STP
   • 802.1w RSTP
• 802.3ad Link Aggregetion
   • DGS-1210-28P:  Max. 14 groups per device/8 ports per group
   • DGS-1210-52:  Max. 26 groups per device/8 ports per group
• Port Mirroring
   • One-to-One, Many-to-One
   • Supports Mirroring for Tx/Rx/Both
• Multicast Filtering
   • Forwards all unregistered groups
   • Filters all unregistered groups
• LLDP, LLDP-MED

VLAN
• 802.1Q
• VLAN Group
   • Max 256 static VLAN groups
   • Max 4094 VIDs
• Management VLAN
• Asymmetric VLAN
• Auto Voice VLAN
   • Max. 10 user defined OUI
   • Max. 8 default OUI
• Auto Surveillance VLAN

QoS (Quality of Service)
• 802.1p Quality of Service
• 4 Queues per port
• Queue Handling
   • Strict
   • Weighted Round Robin (WRR)
• CoS based on
   • 802.1p Priority Queues
   • DSCP
   • ToS1
• Bandwidth Control
   • Port-based (Ingress/Egress, min. granularity 64 Kb/s)

Access Control List
• DGS-1210-28P:
   • Max. 50 profiles
   • Max. 240 rules shared by profiles
   • Single or multiple ports (each rule)
• DGS-1210-52:
   • Max. 50 profiles
   • Max. 450 rules shared by profiles
• ACL based on
   • MAC Address
   • IPv4 Address (ICMP/IGMP/TCP/UDP)
   • 802.1p Priority
   • DSCP
   • Ethertype
• ACL Actions
   • Permit
   • Deny

Security
• Port Security
   • Supports up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
• Static MAC
• D-Link Safeguard Engine
• DHCP Server Screening
• Trusted Host
• ARP Spoofing Prevention
   • Max. 64 entires
• SSL
   • Supports v1/v2/v3
   • Support IPv4/IPv6
• Traffic Segmentation
• Smart Binding
   • Supports 512 entires of IP-MAC-Port binding
   • Discover connected devices and click to bind
   • Inspect ARP packets and/or IP packets
   • Supports DHCP Snooping

AAA
• 802.1X Port-based Authentication
   • Supports RADIUS Server
   • Supports EAP, OTP, TLS, TTLS, PEAP

OAM
• Cable Diagnostics
• Factory Reset

MIB
• 1213 MIB II
• 1493 Bridge MIB
• 1907 SNMP v2 MIB
• 1215 Trap Convention MIB
• 2233 Interface Group MIB
• D-Link Private MIB
• Power-Ethernet MIB
• LLDP MIB

RFC
• RFC 783 TFTP
• RFC 854 Telnet Server
• RFC 951 BootP/DHCP Client
• RFC 1157 SNMP v1, v2c, v3
• RFC 1213 MIB II, IF MIB
• RFC 1215 MIB Traps Convention
• RFC 1350 TFTP
• RFC 1493 Bridge MIB
• RFC 1542 BootP/DHCP Client
• RFC 1769 SNTP
• RFC 1901 SNMP v1, v2c, v3
• RFC 1907 SNMP v2c MIB
• RFC 1908 SNMP v1, v2c, v3
• RFC 2068 FCS
• RFC 2131 BootP/DHCP Client
• RFC 2138 RADIUS Authentication
• RFC 2139 RADIUS Authentication
• RFC 2233 Interface Group MIB
• RFC 2246 SSL
• RFC 2475
• RFC 2570 SNMP v1, v2c, v3
• RFC 2575 SNMP v1, v2c, v3
• RFC 2598 CoS
• RFC 2616 FCS
• RFC 2618 RADIUS Authentication
• RFC 2819 RMON v1
• RFC 2865 RADIUS Authentication
• RFC 3164 System Log
• RFC 3195 System Log
• RFC 3411-17 SNMP
• RFC 3621 Power Ethernet MIB

Management
• Multi-Language Web-based GUI
   • English (default)
   • Simplified Chinese
   • Traditional Chinese
   • French
   • German
   • Italian
   • Japanese
   • Portuguese
   • Russian
   • Spanish
• SmartConsole Utility
• Simplified CLI
• Telnet Server
• TFTP Client
• Configurable MDI/MDIX
• SNMP
   • Supports v1, v2c, v3
• SNMP Trap
• System Log
   • Max. 500 log entries
• BootP/DHCP Client
• SNTP
• ICMPv6
• IPv4/v6 Dual Stack
• DHCP Auto Configuration
• RMON v1
• Time-based PoE (DGS-1210-28P only)

D-Link Green 3.0 Technology
• Power Saving by:
   • Link Status
   • Cable Length detection
   • LED or Port Shutoff
   • Port Standby mode
   • System Hibernation mode
Ordering Information
• DGS-1210-28P  Web Smart 24-Port Gigabit PoE Switch with 4 Gigabit SFP ports
• DGs-1210-52  Web Smart 48-Port Gigabit Switch with 4 Gigabit SFP ports

Optional Products
Optional SFP Transceivers
• DGS-712 1000BASE-T Copper
• DEM-310GT 1000BASE-LX, Single-mode, 10 km
• DEM-311GT 1000BASE-SX, Multi-mode, 550 m

Optional Software
• DV-600S D-View 6.0 Network Management System (Standard Edition)
• DV-600P D-View 6.0 Network Management System (Professional Edition)
