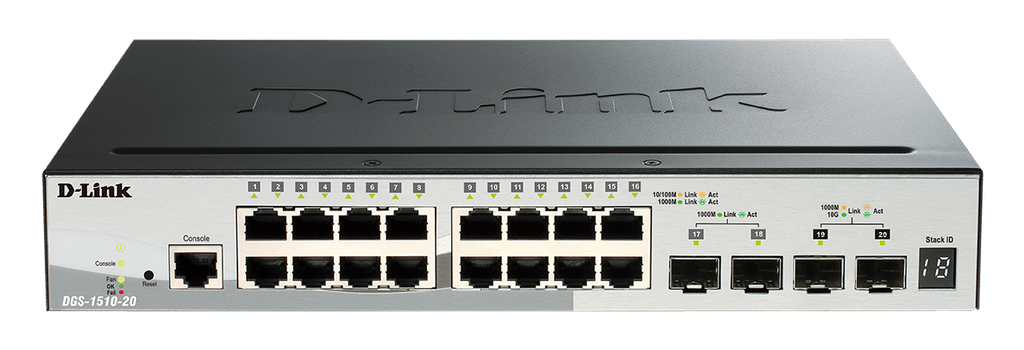

D-Link DGS-1510-20 16 port 10/100/1000Mbps Gigabit Smart Pro Switch with 2 SFP port + 2 x 10G SFP+ ports (EU/UK plug)
D-Link DGS-1510-20 16 Port 10/100/1000Mbps Gigabit Smart Pro Switch with 2 SFP port + 2 x 10G SFP+ ports (EU/UK plug)
Part Number: DGS-1510-20
DGS-1510 Series includes switches SmartPro 10G ports and is the ideal solution for the deployment of networks of small and medium-sized enterprises (SME / SMB). DGS-1510 Series provides a reliable connection and makes it easy to scale the existing network. The series are equipped with 16, 24 or 48-port 10/100/1000 Mbit / s, as well as 2 or 4-port 10G SFP +, used for stacking or uplink-connection.
PoE switches are ideal for corporate clients in networks that use VoIP-services, wireless access points and network cameras. Switch DGS-1510-28P 24-port PoE supports 802.3at (up to 30 W output power per port) and provides power to the various devices with PoE, allowing you to expand the existing network as your business grows and put to use the latest technology without excessive costs.
10G SFP + ports used for stacking or uplink-connection
Depending on the topology implemented stacking (linear or circular) to create a physical stack users may use one or two ports 10-Gigabit SFP +. Using additional cables can be connected in a stack of up to 6 devices (288 Gigabit ports) and get a wide bandwidth at an affordable price. In addition, in one stack, you can use any series switches DGS-1510 in order to ease of configuration, management, and troubleshooting. Maintaining a speed of 20 Gbit / s in full duplex mode, the Switch DGS-1510 allows you to connect to the core network and servers, while providing high performance.
Traffic Management Level 3
Switches DGS-1510 series supports static routing, which creates an opportunity for communication between different groups of users in different segments of the VLAN in the network. Since the switches can control the routing within the local network, processing only external routing can be charged a network router.
Extensive Layer 2
Series Switches DGS-1510 series supports Layer 2 functions, including IGMP Snooping, Port Mirroring, Spanning Tree, and Link Layer Discovery Protocol (LLDP). IEEE 802.3x Flow Control allows you to directly connect the server to the switch for fast, reliable data transfer. The switches support function and Cable Diagnostics function Loopback Detection. Loopback Detection is used to determine the loops and automatic shut-off port or VLAN, which detected a loop. Cable Diagnostics is designed to determine the quality of the copper cables and also the type of cable error.
QoS, bandwidth management
Switches DGS-1510 Series supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, and are an ideal solution for deploying VoIP and video surveillance. Auto Surveillance VLAN - is a new, industry-leading technology, built-in switches Smart D-Link. This technology combines the video data and transmission through one switch SmartPro, reducing thus the cost of equipment and facilities. ASV also ensures quality video in real time and control, without prejudice to the transfer of conventional data network. The automatic determination of the connected equipment VoIP allows you to put "voice" traffic to a dedicated VLAN. With a higher priority and individual VLAN, this feature provides the quality and security of VoIP-traffic. In addition, DSCP marks Ethernet-packs with the appointment of the network traffic of different services. In addition, bandwidth management feature allows network administrators to reserve bandwidth for a variety of applications that require high bandwidth or might have high priority.
Network Security
Function D-Link Safeguard Engine protects the switches against traffic flooding caused by viruses. Authentication based on 802.1X port allows you to use an external RADIUS server to authenticate users.
In addition, the Access Control List (ACL) feature enhances network security and helps protect your network by filtering traffic from unauthorized MAC-addresses or IP-addresses.
Switches DGS-1510 series support the prevention of attacks ARP Spoofing, protects from attacks on an Ethernet, which can cause a change in traffic or delay by sending fake ARP-messages. To prevent ARP Spoofing attacks, the switch uses the Packet Control ACLs to block packets containing false ARP-message. For added security feature DHCP Server Screening, deny access to unauthorized DHCP-servers.
Support for IPv6
In a series of DGS-1510 supports functional IPv6, including MLD Snooping, IPv6 ACL / QoS and IMPB (IP-MAC-Port Binding), which promotes easy equipment integration in the next generation network. In addition, this series supports both protocol stacks IPv4 / v6, allowing switches to act as a bridge between IPv4 and IPv6.
Management flexibility
DGS-1510 Series supports the Single IP Management (SIM), which allows you to manage a virtual stack of 32 devices via one IP-address. This feature greatly simplifies the management of both small workgroups and telecommunication centers, while allowing the network to scale and to increase the capacity if necessary.
Using the Web-based switch management DGS-1510 series and utility D-Link Network Assistant allows administrators to remotely manage the network at the port level. Utility D-Link Network Assistant supports automatic detection and display on the D-Link switches Series Web Smart, belonging to the same network segment L2. Web-based interface provides access to the switch from anywhere on the network without the need to enter IP-address or subnet mask that allows you to configure and basic installation of found devices, including password change and update software.
Switches DGS-1510 Series also supports a command line interface (CLI) and SNMP MIB, enabling centralized management of a large network. Management command-line interface (CLI) through the console port and Telnet. Due to the presence on the switch console port connection to it is possible even in the case of high network load.
Saving energy
Switches DGS-1510 Series support JavaScript D-Link Green 3.0, which provides energy savings without sacrificing performance and functionality of the devices. Support for 802.3az Energy Efficient Ethernet allows you to automatically reduce power consumption during low traffic. The power saving feature automatically powers down ports, turn off the indicator and the transition of the system into sleep mode during limited hours. Schedule can also be applied to a switch that supports PoE, thus avoiding unnecessary energy consumption during the downturn.
SPECIFICATION
Interfaces
Ports
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, 802.3ae 10 GbE, IEEE 802.3x Flow Control for full-duplex mode, Auto
Number of Ports
• 16-port 10/100/1000 Mbit / s,
• 2-Port Gigabit SFP,
• 2-port 10G SFP +
Network Cables
• UTP Cat. 5, Cat. 5e (max. 100 m)
• EIA / TIA-568 100th STP (max. 100 m)
Half / full duplex
Full / half duplex for 10/100 Mbit / s
Auto detect cable polarity
Adjusted automatically or manually MDI / MDIX
Performance
Switching matrix
76 Gbit / s
Transmission method
Store-and-forward
MAC-address table
16,000 entries per device
Updating MAC-addresses
• Up to 512 static entries MAC-addresses
• Enable / disable MAC-address
Speed ??forwarding 64-byte packets
56,54 Mpps
Packet buffer
1.5 MB device
The software features
Stacking
• Virtual Stacking
• D-Link Single IP Management
• Up to 32 devices in a virtual stack
• Bandwidth: 20 GB
• Physical Stacking
• Linear or ring topology
• The bandwidth in full duplex mode: up to 40 GB
• Up to 6 units per stack
Function L2
• MAC-address table: 16K
• Flow Control
• 802.3x Flow Control
• HOL Blocking Prevention
• Jumbo-frames up to 9000 bytes
• IGMP Snooping
• IGMP v1 / v2 Snooping
• IGMP v3 awareness
• Supports up to 512 IGMP-groups
• Supports up to 128 static multicast groups
• IGMP on VLAN
• Supports IGMP Snooping Querier
• IGMP Snooping Fast Leave-based site
• MLD Snooping
• Supports MLD v1 / v2 awareness
• Supports 512 groups
• Supports 128 static multicast groups
• MLD Snooping VLAN-based
• MLD Fast Leave-based site
• MLD Snooping Querier
• Spanning Tree Protocol
• 802.1D STP
• 802.1w RSTP
• 802.1s MSTP
• Loopback Detection is
• 802.3ad Link Aggregation
• Max. 32 groups per device / 8 ports per group
• Port Mirroring
• Support 4 groups mirroring
• One-to-One, Many-to-One
• Supports mirroring for incoming / outgoing / traffic in both directions
• Multicast Filtering
• Redirect all unregistered groups
• Filtering of unregistered groups
• LLDP, LLDP-MED
VLAN
• 802.1Q Tagged VLAN
• Group VLAN: 4K
• Custom VID: 0 ~ 4094
• Asymmetric VLAN
• Auto Voice VLAN
• Auto Surveillance VLAN
Quality of Service (QoS)
• 802.1p Quality of Service
• Processing Queue
• Strict priority
• Weighted priority (WRR)
• 8 queues per port
• Bandwidth Management
• Based on the port (incoming / outgoing, with a minimum of 64 kbit / s for 10/100/1000 BASE-T)
• CoS based on:
• 802.1p Priority Queues
• VLAN
• MAC-address
• Ether type
• IP-address
• DSCP
• the type of protocol
• Non-TCP / UDP port
• DSCP for IPv6 traffic class
• IPv6 flow label
L3 functions
• ARP
• 256 static ARP
• Support Gratuitous ARP
• IPv6 Neighbour Discovery (ND)
• Default Route
• Static Routing
• Max. Number of records static routes IPv4: 64
• Max. Number of records static routes IPv6: 32
Access Control Lists (ACL)
• ACL based on:
• 802.1p Priority Queues
• VLAN
• MAC-address
• Ether type
• IP-address
• DSCP
• the type of protocol
• Non-TCP / UDP port
• DSCP for IPv6 traffic class
• IPv6 flow label
• Actions ACL
• Allow
• Reject
• Max. Number of access lists: 256
• Max. Number of rules: 768
• One or more ports (each rule)
• ACL Scheduled
• Statistics ACL
Security
• Port Security
• Supports up to 128 MAC-addresses per port
• Protection from the broadcast / multicast / unicast storm
• Dynamic ARP Inspection
• Static MAC-address
• D-Link Safeguard Engine
• DHCP Server Screening
• Prevention of ARP Spoofing Attacks
• Max. Number of records: 64
• SSH
• Support v2
• Support for IPv4 / IPv6
• SSL
• Supports v1 / v2 / v3
• Support for IPv4 / IPv6
• Segmentation of traffic
• IP-MAC-Port Binding
• DHCP snooping
• IP Source Guard
• Dynamic ARP inspection
• DHCPv6 Guard
• RA Guard
• IPv6 Snooping
• IPv6 Source Guard
• Prevention of DoS attacks
AAA
• Mixed Authentication
• 802.1X and MAC-address
• Support local database / RADIUS-server
• Support for EAP, OTP, TLS, TTLS, PEAP
• Based Access Control Web (WAC)
• Access control based on port
• Based Access Control Node
• Dynamic VLAN assignment
• Access control based on MAC-address (MAC)
• Access control based on port
• Based Access Control Node
• Dynamic VLAN assignment
• Access control based on Japanese Web-based interface (JWAC)
• Access control based on port
• Based Access Control Node
• Dynamic VLAN assignment
OAM
• Diagnosis cable
• Restore the factory default settings
Management
• CLI
• Telnet-server
• TFTP-client
• IPv6 Neighbor Discovery
• Configurable MDI / MDIX
• SNMP
• Supports v1, v2c, v3
• SNMP Trap
• System Log
• Max. number of log entries: 10000
• DHCP-client
• Support Utility D-Link Network Assistant
• SNTP
• ICMPv6
• Support protocol stack IPv4 / v6
• Automatic configuration via DHCP
• RMON v1
Technology D-Link Green 3.0
• Energy savings
• depending on the connection status
• Turn off the indicators or ports
• Sleep mode
The input power
- 100-240 VAC, 50-60 Hz, internal universal power supply
Max. power consumption
- 20.3 W
Power consumption in standby mode
- 12.2 W
The number of fans
- 1
Noise level
- 43.8 dB (A)
Heat release
- 41,602 BTU / hr
Working temperature
- -5 To 50 ° C
Storage temperature
- -20 To 70 ° C
Working Humidity
- From 0% to 95% non-condensing
Humidity Storage
- From 0% to 95% non-condensing
Dimensions
- 280 mm x 180 mm x 44 mm
(Size to be installed in a standard 19-inch rack, the height of 1U)
Weight
- 1.24 kg
Indicators
- Power / Stacking ID / Fan (on the device), Link / Activity / Speed (per port 10/100/1000 Mbit / s), Link / Activity / Speed (per port Gigabit SFP), Link / Activity / Speed (per port 10G SFP +)
Certifications
- CE, FCC, C-Tick, VCCI, BSMI, CCC
Security
- cUL, CB
