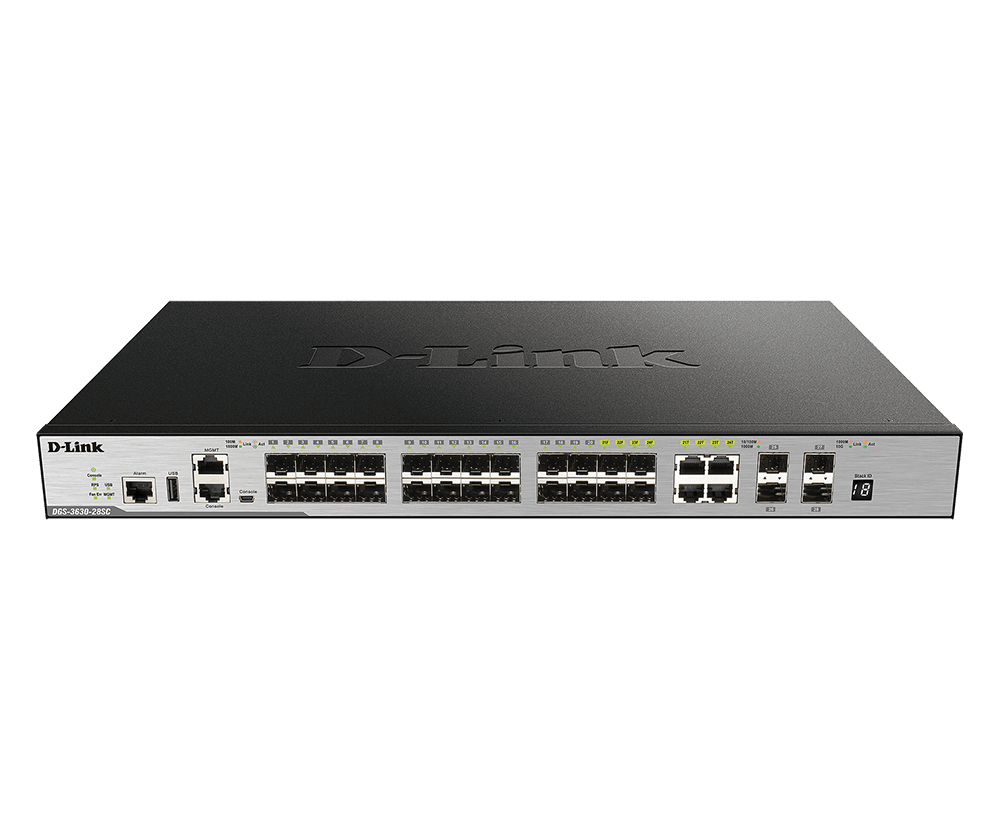

D-Link DGS-3630-28SC | 28-Port Managed Gigabit Switch

D-Link DGS-3630-28SC | 28-Port Managed Gigabit Switch

The D-Link DGS-3630-28SC/ESI is a versatile 28-port managed switch designed for small to medium businesses and enterprises. It includes 20 fiber ports for fast connections, 4 combo ports for flexibility, and 4 high-speed 10GE ports for maximum performance. The switch offers easy management through various ports, including a USB port for quick setup. Ideal for growing networks, it provides reliable, secure, and scalable connectivity for business operations.

This combination does not exist.

D-Link Switches D-Link DGS

Documents

DGS 3630 Series Datasheet

Terms and Conditions

Warranty Terms

D-Link DGS-3630-28SC | 28-port Managed Gigabit Switch

The D-Link DGS-3630-28SC/ESI is a high-performance 28-port managed Gigabit Switch tailored for small to medium-sized businesses, enterprises, and ISPs. It features 20 SFP ports for high-speed fiber connectivity, 4 combo ports (supporting both 10/100/1000BASE-T and SFP), and 4 10GE SFP+ ports for ultra-fast data transmission. This switch offers comprehensive out-of-band management through its RJ-45 and Mini-USB console ports, as well as an additional management port for IP-based management. It also includes a USB 2.0 Type A port for easy configuration and file storage, along with an alarm port for event monitoring. Built for scalability, the DGS-3630-28SC/ESI is ideal for handling growing network demands, providing reliability, flexibility, and enhanced security features to support critical business operations.

D-Link DGS-3630-28SC

details

Technical Specifications

Network Ports & Connectivity

- Ports:
  - 20 x SFP ports
  - 4 x Combo 10/100/1000BASE-T/SFP ports
  - 4 x 10 GbE SFP+ ports
- Console Port:
  - RJ45 and Mini USB console ports for out-of-band CLI management
- Management Port:
  - 10/100/1000BASE-T RJ-45 Ethernet for out-of-band IP management
- Alarm Port:
  - 1 x RJ-45 port
- USB Port:
  - 1 x USB 2.0 Type A port
- Stacking:
  - Physical stacking with up to 80 Gbps bandwidth
  - Supports up to 9 switches in a stack
  - Virtual stacking/clustering of up to 32 units with 20 Gbps bandwidth

Performance & Management

Performance & Management
- Switching Capacity:
  - 128 Gbps
- Packet Forwarding Rate:
  - 95.24 Mpps
- MAC Address Table & Buffer:
  - 68K MAC entries, 4 MBytes packet buffer
- VLAN & QoS:
  - Supports up to 4K VLAN groups, 8 queues per port, and advanced QoS mechanisms
- Routing & Forwarding:
  - IPv4/IPv6 routing support with up to 16K entries for IPv6 and 32K for IPv4 forwarding tables

Security & VLAN Features

- Security Protocols:
  - Port Security, DHCP Snooping, ARP Spoofing Prevention, DOS Attack Prevention
- AAA (Authentication, Authorization, Accounting):
  - Supports 802.1X, MAC-based access control, RADIUS/TACACS+ authentication
- VLAN Types:
  - Supports 802.1Q, Q-in-Q, Private VLAN, Voice VLAN, and dynamic VLANs via GVRP
- ACL (Access Control List):
  - 4K ingress, 1K egress ACL entries, time-based ACL
- Multicast Filtering:
  - IGMP/MLD Snooping, PIM Snooping, up to 8K IGMP groups

Physical & Environmental

Size & Mounting:
- 19-inch, 1U rack-mount size, weight: 3.79 kg (8.36 lb)
Power Consumption:
- Max: 63.58 W, Standby: 30.1 W, Power Input: 100-240 VAC
Temperature & Humidity:
- Operating: -5 to 50°C (23 to 122°F), Storage: -40 to 70°C (-40 to 158°F)
- Humidity: Operating 10%-95%, Storage 5%-95% RH
Acoustics & Heat Dissipation:
- Noise level: 56 dB(A), Heat dissipation: 216.81 BTU/h
Certifications & Compliance:
- Safety: cUL, CE, CB, BSMI; EMI/EMC: CE, FCC Class A, VCCI, CCC

Box Contents

Your D-Link DGS-3630-28SC box comes with:

Your Switch

D-Link DGS-3630-28SC PoE switch console

Accessories

Power Cable
Console Cable (Optional)

Additional items

User Guide
Rackmount brackets
