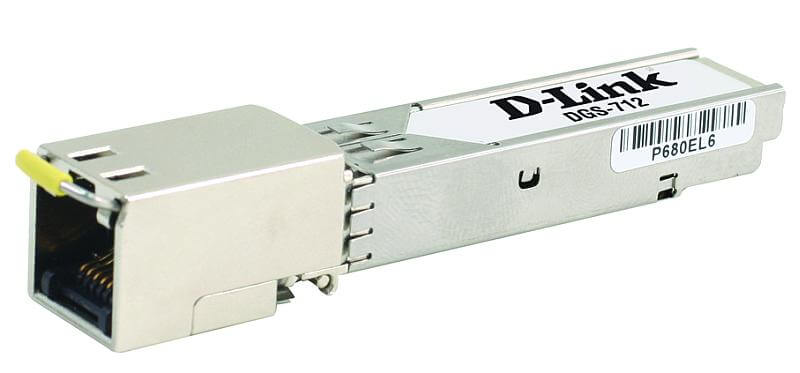

D-Link DGS-712/E 1-port 1000BaseT 3.3V mini-GBIC
D-Link DGS-712/E 1-port 1000BaseT 3.3V mini-GBIC
Part Number: DGS-712/E
Description:
The new line transceivers Gigabit Interface Converter (GBIC) and Small Form-Factor Pluggable (SFP) is a combination of performance and availability. New Gigabit Transceivers D-Link is available in two form-factors: standard (GBIC) and (SFP).
DGS-712 - transceiver SFP (Small Form Pluggable), based on an agreement SFP MSA. This module is fully consistent with the specification Gigabit Ethernet 1000BASE-T, defined in the IEEE 802.3ab standard. Supporting full duplex, Gigabit module provides data transfer using a cable of twisted pair category 5 up to 100 m. The device has a metal housing that reduces electromagnetic radiation and increases the service life and allows "hot" connection
Characteristics:
polishing type :
UPC
Supported standards:
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
transceiver type:
SFP (Small Form Pluggable)
connector Type
RJ-45
Automatic identification of MDI / MDIX
Support for automatic determination of polarity MDI / MDIX
You do not need an external crossover cable connection
The data rate:
1.000 Mbit / s (according to the standard IEEE 802.3)
When using the 10/100/1000 BASE-T requires a SGMII interface to the system without synchronization.With an interface SERDES, the transceiver will work only on the standard 1000BASE-T.
The type of cable:
Twisted pair category 5
Maximum cable length
100 meters
Food
350mA (normal)
400mA (max)
1.3Vt maximum power for the entire permissible range of voltage and temperature *
Input voltage
3.1V (min)
3.3V (typical)
3.5V (maximum)
Reference ground
Maximum voltage
4B
overcurrent
30mA
"Hot" connection causes an increase in the supply current *
The size
3.02 x 1.19 x 5.71 mm
Working temperature
From 0 o to 85 o the C
storage temperature
From -40 o to 85 o C
