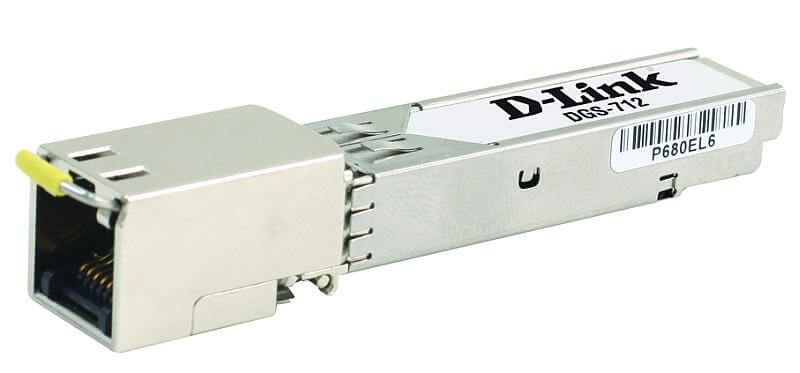

D-Link DGS-712/E 1-port 1000BaseT 3.3V mini-GBIC

D-Link DGS-712/E 1-port 1000BaseT 3.3V mini-GBIC

Part Number: DGS-712/E

Description:

The new line transceivers Gigabit Interface Converter (GBIC) and Small Form-Factor Pluggable (SFP) is a combination of performance and availability. New Gigabit Transceivers D-Link is available in two form-factors: standard (GBIC) and (SFP).

DGS-712 - transceiver SFP (Small Form Pluggable), based on an agreement SFP MSA. This module is fully consistent with the specification Gigabit Ethernet 1000BASE-T, defined in the IEEE 802.3ab standard. Supporting full duplex, Gigabit module provides data transfer using a cable of twisted pair category 5 up to 100 m. The device has a metal housing that reduces electromagnetic radiation and increases the service life and allows "hot" connection

Characteristics:

polishing type :

UPC

Supported standards:

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

transceiver type:

SFP (Small Form Pluggable)

connector Type

RJ-45

Automatic identification of MDI / MDIX

Support for automatic determination of polarity MDI / MDIX

You do not need an external crossover cable connection

The data rate:

1.000 Mbit / s (according to the standard IEEE 802.3)

When using the 10/100/1000 BASE-T requires a SGMII interface to the system without synchronization.With an interface SERDES, the transceiver will work only on the standard 1000BASE-T.

The type of cable:

Twisted pair category 5

Maximum cable length

100 meters

Food

350mA (normal)

400mA (max)

1.3Vt maximum power for the entire permissible range of voltage and temperature *

Input voltage

3.1V (min)

3.3V (typical)

3.5V (maximum)

Reference ground

Maximum voltage

4B

overcurrent

30mA

"Hot" connection causes an increase in the supply current *

The size

3.02 x 1.19 x 5.71 mm

Working temperature

From 0 o to 85 o the C

storage temperature

From -40 o to 85 o C
