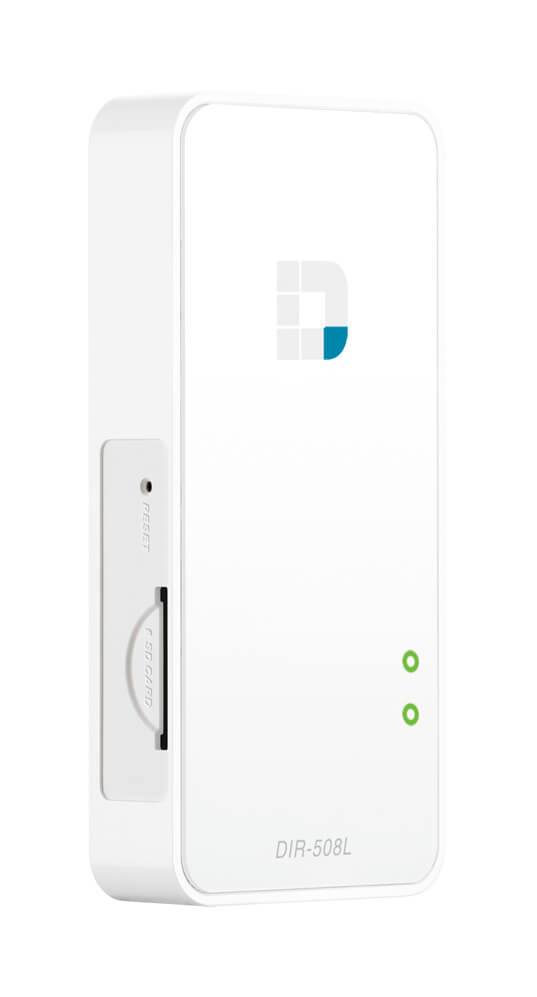

D-Link DIR-508L/MNAW 300Mbps 4000mAH power bank
D-Link DIR-508L/MNAW 300Mbps 4000mAH power bank
Part Number: DIR-508L/MNAW
Features Connect Your Devices
• Automatically detects the appropriate connection mode to use:
• Broadband Router Mode: Connect an Ethernet cable to share your wired connection
• Mobile Router Mode: Connect a 3G/4G USB adapter to share your mobile connection1
• Hotspot Mode: Share Internet access from a Wi-Fi hotspot with all your devices
• Shares your Internet connection through Wireless N with speeds up to 300 Mbps2
• Saves your connection settings for automatic connection later
Share Your Files
• Plug in a USB storage drive or SD card for easy file access 3
• Stream your files over the Internet to your mobile device with the mydlink SharePort™ app for iOS and Android
• Streams media to DLNA-capable devices
Charge Your Devices
• High-capacity 4000 mAh rechargeable battery
• Charge your mobile devices on the go, including power-hungry devices like iPads
• Use the DIR-508L anywhere, including at the park, in the car, or just out and about
• WAN 10/100 Ethernet port
• WPS button
• SD card slot
• Power Mode switch
• USB 2.0 host port for compatible 3G/4G adapters, USB storage, or charging other devices
• MicroUSB port for charging the DIR-508L
• Reset button
LEDs
• Power/Status
• Battery status
Standards
• IEEE 802.11n/g/b, up to 300 Mbps2
• IEEE 802.3
• IEEE 802.3u
• USB 2.0
Internet Modes
• Broadband Router Mode
• Mobile Router Mode
• Hotspot Mode
Power Modes
• On/Off/Charger
Wireless Frequency Range
• 2.4 GHz to 2.4835 GHz
Antennas
• Internal antennas Functionality
Sharing Features
• mydlink SharePort™ app support (iOS, Android)
• Remote Access Mode: Access files through the Internet 4
• Local Access Mode: Access files from any device connected to the DIR-508L
• SharePort™ Mobile app support (Windows 8)
• SharePort™ Web File Access support (Web browser)
• Access files from any device connected to the DIR-508L
• Accepts USB storage drives up to 250 GB
Security
• Wi-Fi Protected Access (WPA/WPA2)
• WEP 64/128-bit encryption 6
• WPS (PBC)
Advanced Features
• DLNA Media Server 5
• Guest Zone support
• IPv6
• UPnP support
• Wi-Fi WMM Quality of Service (QoS)
Advanced Firewall Features
• Network Address Translation (NAT)
• MAC address filtering
Device Management
• User-friendly web UI with desktop and mobile interfaces
Physical
Dimensions
• 124.0 x 59.0 x 19.8 mm (4.9 x 2.3 x 0.8 inches)
Weight
• 270 g (0.6 lbs)
Power
• Built-in 4000 mAh Li-ion rechargeable battery 7
• Input: 5 V DC, 1.5 A maximum
• Output: 5 V DC, 1 A via USB port
Temperature
• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -10 to 45 °C (14 to 113 °F)
Humidity
• Operating: 10% to 75% non-condensing
• Storage: 5% to 75% non-condensing
Certifications
• FCC • CE • IC • C-Tick • NCC
• UL • CUL • LVD • BSMI
