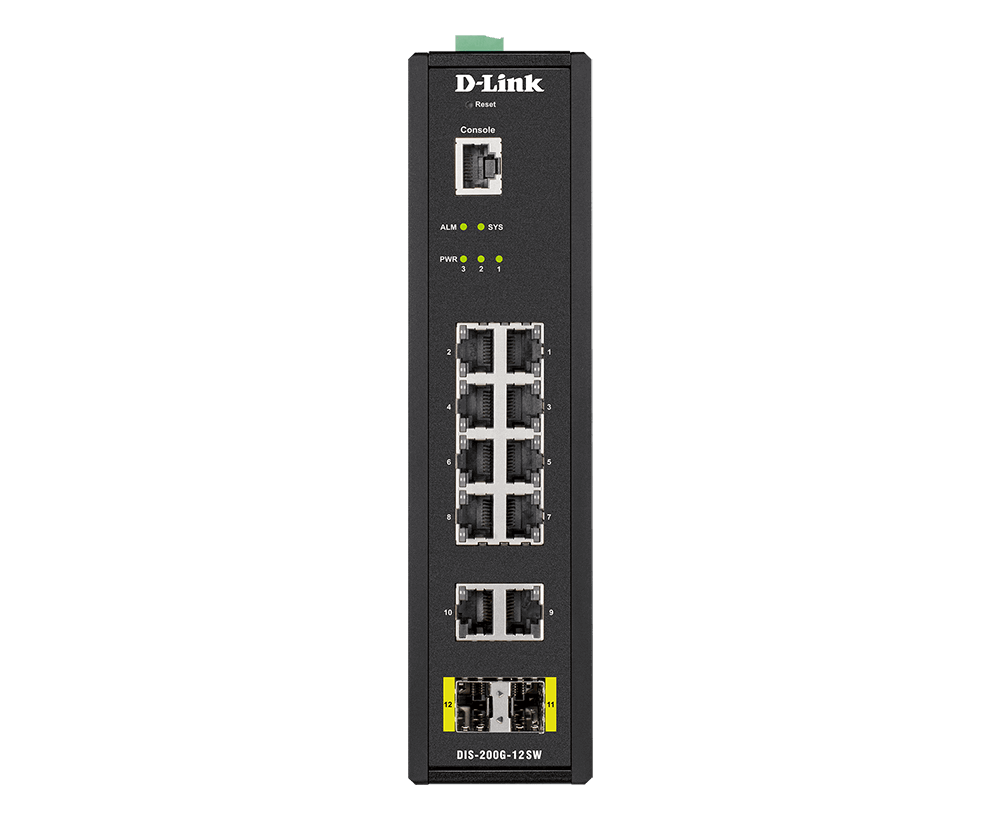

D-Link DIS-200G-12SW 10 x 10/100/1000Mbps ports with 2 SFP ports +(19" rackmount kit , DIN rail power supply and power adapter not included )
D-Link DIS-200G-12SW 10 x 10/100/1000Mbps ports with 2 SFP ports L2 Managed Outdoor switch ,6kV surge protection,DIN rail/wall/rack-mountable, IP30 housing (operating Temeperature -40 to 75degrees) (19" rackmount kit , DIN rail power supply and power adapter not included )
Part Number: DIS-200G-12SW
Ideal for industrial and outdoor cabinet surveillance deployments, and capable of withstanding the harshest environments.
- 10 x 10/100/1000BASE-T ports
- 2 x SFP ports
- 1 x RJ-45 Console port
- Wide operating temperature: -40 to 75 °C (-40 to 167 °F)
- Robust industry-standard enclosure
- ERPS for quick failover recovery
- High EMC endurance
- Built-in 6 kV surge protection
Specifications
1000Base-T Interface 10 1000M SFP Interface 2 Auto MDI/MDIX Yes Console Port Yes Switching Capacity 24 Gbps Max. Packet Forwarding Rate 17.856 Mpps Store & Forwarding Yes Weight 1.63kg (3.59lbs) Operation Temperature -40 ~ 75℃ Storage Temperature -40 ~ 85℃ Standby Power Consumption 5.94W Operation Humidity 0% ~ 95% RH Storage Humidity 0% ~ 95% RH Operating Altitude up to 2000M Maximum Power Consumption 10.26W Maximum Heat Dissipation 35.01 BTU/hr MTBF 219,314 hours Dimension 210 x 171.2 x 53mm CPU Speed 416MHz DRAM Size 128 MB Flash Memory Size 32 MB Packet Buffer Size 4Mbit Power Input 12~48Vdc, redundant dual inputs throught ternimal block/12Vdc through 4-pin power din Comply with RoHS 6 Yes Energy Efficiency Ethernet (EEE) Yes Power Saving By Link Status Yes Power Saving By LED Shut-Off Yes Power Saving By System Hibernation Yes Power Saving By Port Shut-Off Yes MAC Address Table Size 8K 802.3x Flow Control Yes Head-of-line (HOL) Blocking Prevention Yes 802.1D Spanning Tree (STP) Yes 802.1w Rapid Spanning Tree (RSTP) Yes 802.1s Multiple Spanning Tree (MSTP) Yes G.8032 ERPS Yes 802.1AX Link Aggregation Yes 802.3ad Link Aggregation Yes Link Aggregation Group Per Device 6 Max Port Per Link Aggregation Group 8 Port Mirroring Yes Jumbo Frame 9600 bytes Loopback Detection (LBD) Yes IGMP Snooping Yes Max IGMP Snooping Groups 256 (shared with MLD snooping) MLD Snooping Fast Leave Yes MLD Snooping Groups Yes IGMP Snooping Fast Leave Yes MLD Snooping Yes VLAN Groups Yes Port-based VLAN Yes Voice VLAN Yes 802.1Q VLAN Yes Auto Surveillance VLAN Yes (v2.0) GVRP Yes Surveillance VLAN Yes Asymmetric VLAN Yes Number of Queue 4 Class of Service (CoS) Yes Queue Handling Yes Strict Priority Queue (SPQ) Yes Weighted Round Robin (WRR) Yes Port-based Bandwidth Control Yes Port Security Yes Broadcast/Multicast/Unicast Storm Control Yes Traffic Segmentation Yes D-Link Safeguard Engine Yes DoS Attack Prevention Yes Web-based Access Control (WAC) Yes RADIUS Yes Cable Diagnostics Yes Optical Transceiver Digital Diagnostic Monitoring (DDM) Yes Simple Network Time Protocol (SNTP) Yes Web-based GUI Yes Command Line Interface (CLI) Yes Telnet Server Yes SNMP Yes SNMP Trap Yes TFTP Client Yes System Log Yes RMONv1 Yes LLDP Yes D-Link Discover Protocol (DDP) Yes DHCP/BootP Client DHCP Client only Dual Images Yes Dual Configurations Yes Ping Yes D-Link Network Assistant Yes Surge/Lightning Protection Yes Surge/Lightning Protection (AC Power Inet) 2KV Surge/Lightning Protection (All Ethernet Ports) 6KV Air Discharge 8KV Contact Discharge 6KV
