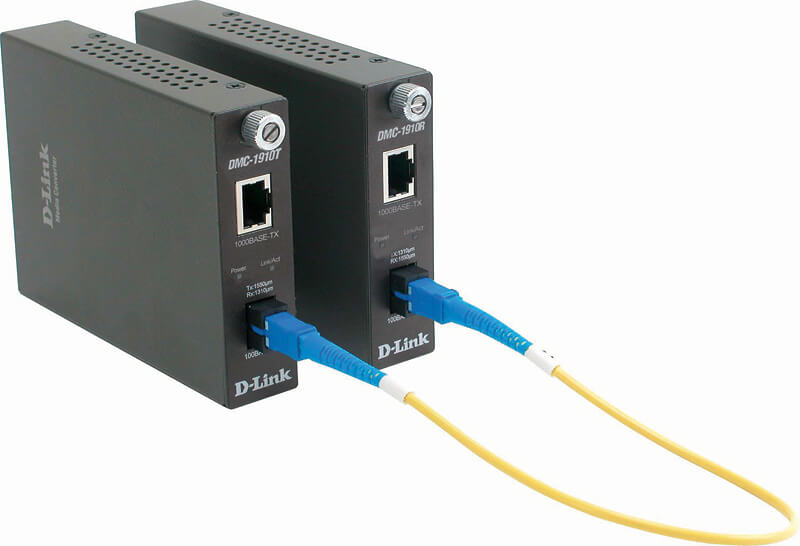

D-Link DMC-1910SR 10/100/1000BASE-T Gigabit Twisted-pair to 1000BASE-LX Gigabit Fibre

https://www.redstarafrica.com/web/image/product.template/11478/image_1920?unique=09625e3

7,125.00 KSh 7125.0 KES 7,125.00 KSh Tax Excluded

7,125.00 KSh Tax Excluded

Contact us for this product

This combination does not exist.

D-Link DMC-1910SR 10/100/1000BASE-T Gigabit Twisted-pair to 1000BASE-LX Gigabit Fiber TX1310/RX1550nm WDM BiDi Single-mode Fiber (20 km, SC) Media Converter EU/UK plug
Part Number: DMC-1910SR

Description

The D-Link DMC-1910 Fiber Media Converter converts 1000BASE-T copper Gigabit signals to 1000BASE-LX fiber Gigabit signals. This allows you to connect longer distance fiber cables between two devices that are designed only for shorter distance Cat. 5 twisted-pair cables.

The DMC-1910 media converter combines transmitting and receiving signals onto one fiber strand using two wavelengths. This design avoids the budget losses incurred by the single-wavelength single-fiber technology and minimizes any possibility of reflections in the system. The DMC-1910 consists of two units. One unit uses one wavelength to transmit and a second wavelength to receive, while the other flips that relationship. Two different types of transmitting wavelengths are supported: one bi-directional wavelength for both transmission and reception.

Both units of the DMC-1910 media converter are encased in a solid metal housing with LED status indicators. The DMC-1910 can be used as a stand-alone converter or installed in a DMC-1000  chassis. In case you install it in the chassis, you will remove the metal cases of the two units and slide in their PC boards into the chassis slots. The chassis's power supply will be used instead of the media converters' own AC to DC power adapter. The media converter is hot-swappable when used with the chassis.

Features

Fast and Easy to Use

  • One/Two channel 10/100/1000 Mbps Ethernet to 10/100 Mbps fiber optic conversion

  • Plug-and-Play, no additional software required

  • Can be used standalone or installed in the DMC-1014 chassis

  • Half or full-duplex operation

  • Auto-MDI/MDIX

Easy Placement and Monitoring

  • Mount up to 14 media converters in the specially designed DMC-1014 Media Converter Chassis

  • Dedicated power supply for powering the chassis and all installed media converters

  • Hot-swappable when mounted

  • Front panel LEDs for instant status feedback

Specifications

Power Input:  5 V/1 A external power adapter

Dimensions: 95 x 70 x 26 mm

Operation Temperature: 0 °C to 60 °C

Storage Temperature: -20 °C to 70 °C

Humidity:  5% to 90% RH, non-condensing

Emission (EMI): • FCC• CE• VCCI

LED Indicators: "Power (PWR) LINK/ACT"

Product datasheet
