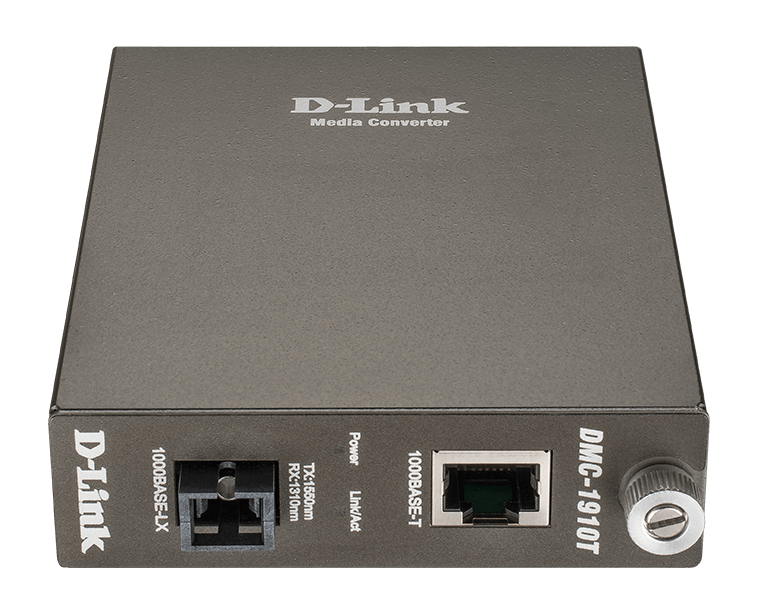

D-Link DMC-1910T/E 1000Base-T UTP to 1000Base-LX SM SC Gigabit Dual Wave Length Fiber Media Converter TX (Up to 15km)
D-Link DMC-1910T/E 1000Base-T UTP to 1000Base-LX SM SC Gigabit Dual Wave Length Fiber Media Converter TX (Up to 15km)
Part Number: DMC-1910T/E
Description
The D-Link DMC-1910 Fiber
Media Converter converts 1000BASE-T copper Gigabit signals to
1000BASE-LX fiber Gigabit signals. This allows you to connect longer
distance fiber cables between two devices that are designed only for
shorter distance Cat. 5 twistedpair cable.
The DMC-1910 media converter combines transmitting and receiving
signals onto one fiber strand using two wavelengths. This design avoids
the budget losses incurred by the singlewavelength single-fiber
technology, and minimizes any possibility of reflections in the system.
The DMC-1910 consists of two units. One unit uses one wavelength to
transmit and a second wavelength to receive, while the other flips that
relationship. Two different types of transmitting wavelength are
supported: one WDM bi-directional wavelength for both transmission and
reception.
Both units of the DMC-1910 media converter are encased in a solid metal
housing with LED status indicators. The DMC-1910 can be used as
stand-alone converter, or installed in a DMC-1000 chassis. In case you
install it in the chassis, you will remove the metal cases of the two
units and slide in their PC boards into the chassis slots. The chassis's
power supply will be used instead of the media converters' own AC to DC
power adapter. The media
converter is hot swappable when used with the chassis.
General features
Interface
Number of Ports
• 1 x 1000BASE-T RJ-45 port
• 1 x 1000BASE-LX bidirectional SC port
Standards
• IEEE 802.3ab for 1000BASE-T
• IEEE 802.3z for 1000BASE-LX
Data Transfer Rate
• 2000 Mbps (full-duplex)
Duplex Mode
• Full-duplex
Media Types
• 1000BASE-T: 4-pair Cat. 5, Shielded Twisted Pair (STP) (up to 100 m)
• 1000BASE-LX: Single-mode fiber optic cable with SC connector (up to 10 km)
Media Exchange Interface
• Auto-MDI/MDIX
Functionality
Transmission Mode
• Store-and-forward
Forwarding Rate
• Full wire-speed forwarding rate
Management
• Through the DMC-1000 chassis with the DMC-1002 management module installed
Management Functions
• LLR
• Fiber mode
Physical
Diagnostic LEDs
• Power
• LINK/ACT
AC Input
• 5 V/1 A external power adapter
Temperature
• Operating: 0 °C to 40 °C (32 °F to 104 °F)
• Storage: -10 °C to 70 °C (13 °F to 158 °F)
Humidity
• 10% to 90% RH, non-condensing
Dimensions
• 120 x 88 x 25 mm (4.72 x 3.46 x 0.98 in)
Weight
• 295 g (0.65 lbs)
Fiber Wavelength
• TX: 1550 nm
• RX: 1310 nm
Supported Fiber Cable Length
• Up to 10 km
Emission Certifications (EMI)
• FCC Class A
• VCCI Class A
• CE Class A
