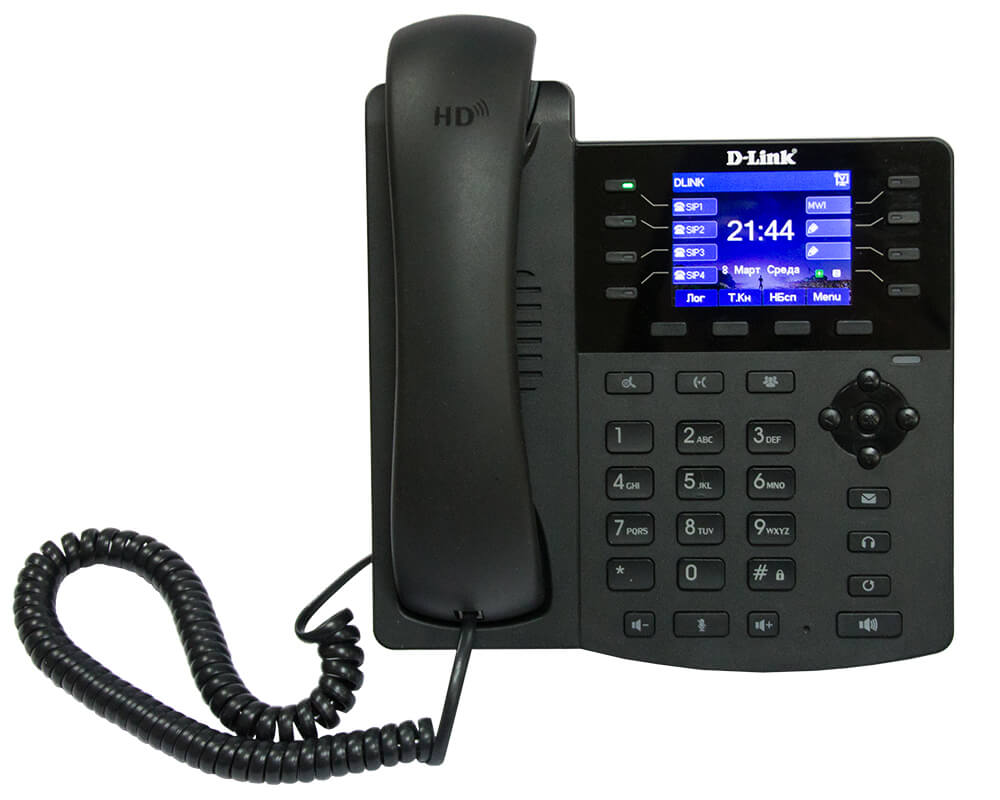

D-Link DPH-150SE/F5 SIP Color LCD IP Phone

https://www.redstarafrica.com/web/image/product.template/11509/image_1920?unique=b03cdd1

11,000.00 KSh 11000.0 KES 11,000.00 KSh Tax Excluded

11,000.00 KSh Tax Excluded

Contact us for this product

This combination does not exist.

Contact Us

Terms and Conditions

SIP Color LCD IP Phone with 1 x PoE LAN port, 1 LAN port, VLAN support, 2 SIP accounts, 2.8inch Color LCD display (without power adaptor)

Part Number: DPH-150SE/F5


DPH-150SE IP Phones are mainly designed for general office users (from VSE, SOHO to SMB) in VoIP communication. With sophisticated and elegant design, this platform has high performance and can offer versatile features and specifications to meet different environment requirements. It can be installed on LAN /DSL/Cable network environment and registered to SIP registrar Server(s), soft switch(es), IP-PBX(s), or IMS-based system and let SIP-enabled terminals to communicate with. Beyond this, users PC can be connected to this phone instead of LAN directly. The phone comes with a plastic Housing and some accessories, including handset, handset cord, keypad, keys and wall-mounting kit. A TFT color LCD display on the panel provides direct visual interface with user. User can use keypad/LCD or Web browser to configure this phone.

General features

Network interface
• WAN Port 10/100Base-TX Ethernet with PoE support
• LAN Port 10/100Base-TX Ethernet
• 5V DC IN Jack
• Handset Hook switch
• Handset Jack
• External console Jack
Keypad Features
• 4 Soft keys for doing more functions
• 8 DSS keys
• 4 Navigator Keys and 1 ok key for navigating in configuration
• Hold
• Call forward
• Three-partyA conference
• MWI
• Headset
• Redial (Redial and the entry to access call history; finish dialing and call the number)
• Speaker
• 12 numeric keys with star & pound key
• Mute
• Vol – / Vol +
Hardware
• CPU: BCM 1190
• SDRAM: 16 M
• FLASH: 8 M
LCD
• 2.8 inch Color LCD
• Resolution: 320×240,TFT color LCD
Physical
• Dimension: 195 A— 188 A— 51 mm
• Net Weight: 0.51kg
Power Adaptor
• AC-DC Switching Power switching
• Wall-Mount type
• Input: 100~120, 220~240VAC
• Output: DC 5V / 0.6A
• Max. Watt: 5 Watt.
• IEEE802.3af  POE Class 1
Power Consumption
• Typical: 1.3 Watt (Standby)
• Max.: 4.3 Watt (Talking)
