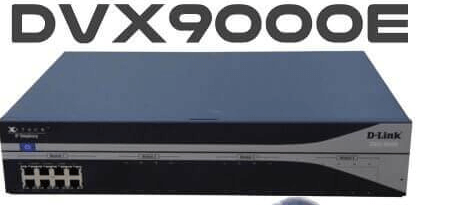

D-Link DVX-9000E Asterisk based Enterprise grade IPPBX , 1500 user support
Asterisk based Enterprise grade IPPBX , 1500 user support (880 concurrent calls), 4 expansion slots for Analog/PRI interface
Part Number: DVX-9000E
For businesses who have strict policies about networking and reliability, the DVX-9000E is the right choice.
Especially relevant for inbound call centers, the DVX-9000E supports
an enhanced switchboard with unlimited buttons, instant messaging and
voice mail explorer.
The DVX-9000E enterprise phone system series supports unlimited users
and up to 880 concurrent calls in normal office settings. In hybrid
settings it can support up to 960 analog extensions (using DVX-8050
telephony interfaces) which makes it perfect for implementations with
high-density existing infrastructure that is costly to replace, such as
in some hotels, hospitals and other organizations.
The DVX-9000E also supports up to 24 PRI lines.
Running EasyVoIZ operating system, it provides full featured enterprise
level phone system. The DVX-9000E provides additional hot-swappable
HDDs and power supplies, which makes it highly suited for all
mission-critical applications including big call centers.
HARDWARE
Processor : Intel Xeon Processor E3-1225V2 8M cache (3.20GHz)
RAM : 8 GB
Hard disk : Two hot-swappable 1TB 2.5” or SSD
USB : 4 external USB 2.0 ports
Asterisk : Asterisk version 13.xx
Linux version: CentOS 7.x
GUI : EasyVOIZ
Telephony
Maximum number of concurrent calls : 880
Maximum number of extensions : unlimited extensions
Maximum number of built in analog ports : 32
Number of E1 / T1 ports : 4 (up to 120 concurren 4 calls)
Maximum modules supported internally : 4 (additional Xstack gateway ports are supported )
Maximum number of telephony ports : 144 (4xE1 PRI/R2/CAS /R2/CAS + 24 analog ports)
