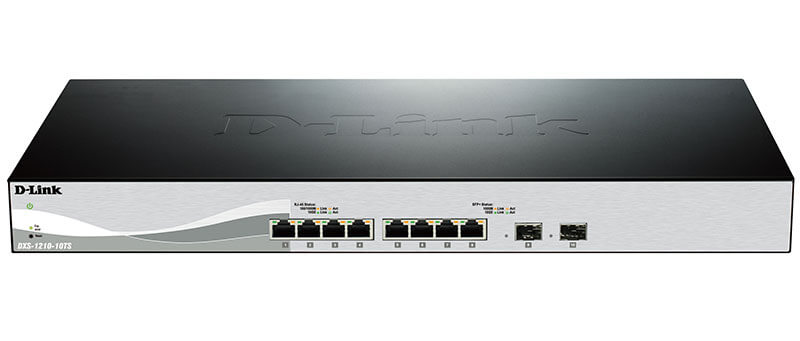

D-Link DXS-1210-10TS | 10G Multi-Gigabit Smart Managed Switch

https://www.redstarafrica.com/web/image/product.template/11602/image_1920?unique=18c62cc

8 10G BASE-T ports & 2 x 10G SFP+ ports
Smart Managed Switch

The D-Link DXS-1210-10TS is a high-performance, multi-gigabit managed switch designed for businesses that need fast, reliable network connectivity. Featuring 8 versatile Ethernet ports that support speeds of up to 10G and 2 additional 10G SFP+ ports for fiber connections, this switch is built to handle heavy data traffic. It also includes advanced management and security features to ensure smooth network performance and protection.

139,100.00 KSh 139100.0 KES 139,100.00 KSh Tax Excluded

139,100.00 KSh Tax Excluded

Contact us for this product

This combination does not exist.

Contact Us
D-Link Switches

Terms and Conditions

Warranty Terms

D-Link DXS-1210-10TS | 10G Multi-Gigabit Smart Managed Switch

The D-Link DXS-1210-10TS is a fully managed 10G multi-gigabit switch equipped with 8 x 100M/1G/2.5G/5G/10G BASE-T ports and 2 x 10G SFP+ ports. This switch supports a wide range of port standards, including IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3bz (2.5G/5G Ethernet over copper), and IEEE 802.3an (10GBASE-T), making it suitable for a variety of network setups. With a switching capacity of 200 Gbps and a maximum packet forwarding rate of 148.8 million packets per second (Mpps), it offers reliable and fast performance for demanding applications. The DXS-1210-10TS comes with advanced features like VLAN, IGMP Snooping, Link Aggregation, and Quality of Service (QoS) for better traffic management and prioritization. Security features include 802.1X authentication, ACLs, port security, and DoS attack prevention, which help safeguard your network. It also offers flexible management options through a web-based GUI, CLI, SNMP, and D-Link Nuclias Connect. Designed to support high-traffic environments, it operates efficiently with low power consumption (43.26W maximum), and includes features like surge protection and diagnostic LEDs.

D-Link DXS-1210-10TS

details

Technical Specifications

Network Ports & Connectivity

  • 8 x 100M/1G/2.5G/5G/10G BASE-T ports
  • 2 x 10G SFP+ ports
  • 1 x RJ-45 Console port
  • Auto MDI/MDIX adjustment for all twisted-pair ports
  • Network Cables for 10GBASE-T: Cat. 6 (30m max), Cat. 6A/Cat. 7 (100m max)

Performance & Management

  • Switching Capacity: 200 Gbps
  • Maximum Packet Forwarding Rate: 148.8 Mpps
  • MAC Address Table: Up to 32,000 entries
  • Management: Web-based GUI, CLI, SNMP v1/v2c/v3, D-Link Nuclias Connect
  • QoS: 802.1p Priority Queues (8 queues per port)

Security & VLAN Features

  • 802.1X Authentication and Dynamic VLAN Assignment
  • Access Control List (ACL): Up to 256 rules
  • DoS Attack Prevention
  • VLAN: 4K Groups (802.1Q, Voice, Auto Surveillance, etc.)
  • Storm Control: Broadcast/Multicast/Unicast

Physical & Environmental

  • Dimensions: 330 x 200 x 44 mm
  • Weight: 2.165 kg
  • Operating Temperature: -5°C to 50°C
  • Maximum Power Consumption: 43.26 W
  • Surge Protection: IEEE 61000-4-5 standard

Box Contents

Your D-Link DXS-1210-10TS box comes with:

Your Switch

  • D-Link DXS-1210-10TS Switch console

Accessories

  • Power Cable
  • Ethernet Cable

Additional items

  • User Guide
