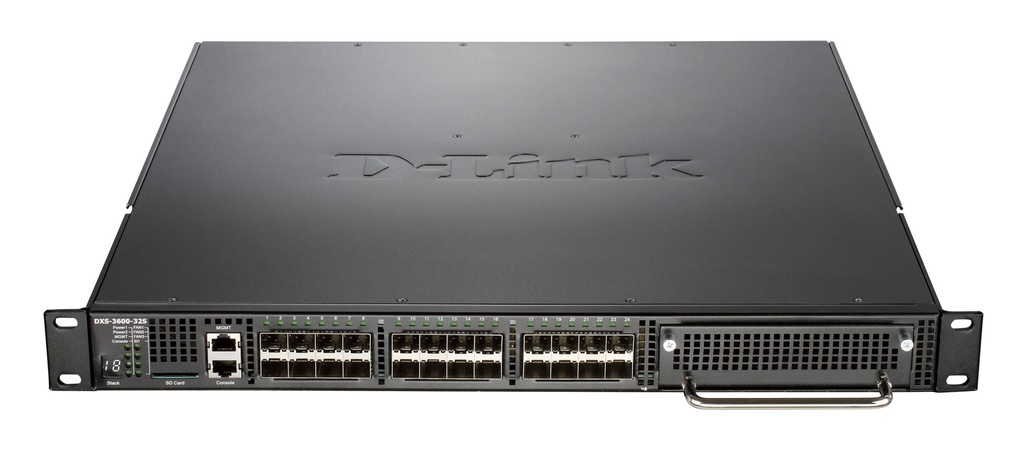

D-Link DXS-3600-32S/SI 24 fixed SFP+ ports with one expansion slot with Standard Image, one AC power supply, and three fan trays (front-to-back airflow) included


964,625.00 KSh 964625.0 KES 1,071,800.00 KSh

1,071,800.00 KSh

Contact us for this product

This combination does not exist.

Terms and Conditions
Prices are Exclusive of VAT

D-Link DXS-3600-32S/SI 24 fixed SFP+ ports with one expansion slot with Standard Image, one AC power supply, and three fan trays (front-to-back airflow) included

Part Number: DXS-3600-32S/SI

3 Series Switches D-Link DXS-3600 includes the new compact high-performance switches, performing switching and routing of traffic at speeds up to 10 Gbit / s. Height 1U and the ability to select the direction of ventilation (from the rear to the front or vice versa) make a series DXS-3600 is very convenient for use in the aggregation layer on campuses and in the workplace. DXS-3600-32S switch is equipped with 24 fixed 10GbE SFP + ports and can use more ports when adding expansion modules providing additional ports 10G SFP +.
Functional Use
DXS-switches 3600 provide high-performance 10-Gbps data transmission to the switch matrix 960 Gbit / s and the maximum speed at which the packages 714 million. Pps. The switches are equipped with power supplies with the ability to "hot" replacement and fans, providing a high level of reliability and fault tolerance. Modular power supply circuit allows you to select a network with constant or alternating current, depending on the installation location. When two power supplies, they share the load, as well as exercise power redundancy scheme 1 + 1. DXS-3600 Series also includes a modular scheme fans. Three fans can duplicate each other, providing redundancy of the cooling system 2 + 1. If one fan fails or the temperature rises, the speed of the remaining fans is automatically increased.
Comprehensive software
Series switches DXS-3600 supports an extended copy (EI). Extended copy of the software (EI) supports routing IPv4 / v6, including RIP, VRRP, OSPF, BGP, and multicast features 3 levels, such as IGMP, MLD, PIM-DM, SM, SDM, SSM, and DVMRP. Extended copy of the software (EI) also supports L2 / L3 MPLS VPN, which allows you to set the switches DXS-3600 Series as the main router network or enterprise network edge router MPLS.
The functions of the data center
Data Center Bridging (DCB) is a mandatory installation of extensions to Ethernet networking in the data center. DXS-3600 switches support several major components of DCB, such as IEEE 802.1Qbb, IEEE 802.1Qaz and IEEE 802.1Qau. IEEE 802.1Qbb (flow control on the basis of priorities) provides flow control for leveling data loss during network congestion. IEEE 802.1Qaz (Selection of extended transmission) manages the distribution of bandwidth among different traffic classes. IEEE 802.1Qau (Congestion Notification) provides congestion control for data flows within the network domain in order to prevent overload. DXS-3600 switches also support switching without buffering packets, which reduces the time delay in the transmission of data on the network.
Saving energy
Ability to select the direction of ventilation from the rear to the front, or vice versa provides maximum air conditioning for more efficient cooling of all systems that are mounted in a rack in data centers using switches. The switches are also equipped with built-in smart fans, internal temperature sensors that control the temperature change and react accordingly to the use of different fan speeds at different temperatures. At low temperatures, the fan speed is reduced, thereby reducing power consumption and reducing noise.

• Interfaces: 24 fixed 10 Gigabit ports with one expansion module
• Console port: port with RJ-45 connector to control the (out-of-band)
• Control Port: Port 10/100/1000 Base-T with RJ-45 connector for remote management (out-of-band)
• Slot for SD-card
DDM (Digital Diagnostics Monitoring) 1
Yes I Am
• Switching Matrix: 960 Gbit / s
• Max. packet rate: 714,28 Mpps
• Buffer size packages: 9 MB
• MAC-address table: 128 K
Copies of the extended function (EI)
Multicast Layer 3
• Size tables multicast: 2K
• IGMP v1, v2, v3
• The PIM-Sparse-Dense
• DVMRP v3
• MLD v1 / v2 1
• MPLS LSP trigger filtering
• Multiprotocol Label Switching (MPLS label-forwarding)
• MPLS ping and traceroute
• L2 protocol tunneling through PW
• PW Redundancy
Function level 3
• IPv6 Tunneling 1
- Static
- 6to4
Layer 3 VPN
• Virtualization Technology VRF-Lite
• VRF aware application
Layer 3 routing
• Supports up to 16K entries routes IPv4 / IPv6
- Max. 16K IPv4 records
- Max. 8K IPv6 records 1
• Supports 8K L3 shared items sent to IPv4 / IPv6
- Max. 8K IPv4 records
- Max. 4K IPv6 records 1
- RIP v1 / v2
- RIPng 1
- OSPF v2
- OSPF v3 1
- Passive OSPF interface
- Stub / NSSA Area
- OSPF Equal Cost Route
• BGPv4
• Route redistribution
• IP Directed Broadcast
• Policy-based routing 1
Standard MIB and RFC
• RFC1213 MIB II
• RFC1907 SNMP v2 MIB
• RFC5519 IGMP v3 MIB
• RFC1724 RIP v2 MIB
• RFC2021 RMONv2 MIB
• RFC1643, RFC2358, RFC2665 Ether-like MIB
• RFC4836 802.3 MAU MIB
• RFC4363 802.1p MIB
• RFC2618 RADIUS Authentication Client MIB
• RFC4292 IP Forwarding Table MIB
• RFC2932 IPv4 Multicast Routing MIB
• RFC2934 PIM MIB for IPv4
• RFC2620 RADIUS Accounting Client MIB
• RFC2925 Traceroute MIB
• RFC2925 Ping MIB
• Private MIB
• RFC1112, RFC2236, RFC3376, RFC4541 IGMP Snooping
• RFC4363 802.1v
• RFC2338 VRRP
• RFC1058, RFC1388, RFC1723, RFC2453, RFC2080 RIP
• RFC1370, RFC1765, RFC2328, RFC2740, RFC3101 makes RFC1587 obsolete, RFC2328 makes RFC1583, RFC2178 OSPF v2, v3
• RFC1771, RFC1997, RFC2439, RFC2796, RFC2842, RFC2918 BGP
• RFC3973 PIM-DM
• RFC5059 PIM-SM
• RFC3569, RFC4601, RFC4608, RFC4607, RFC4604 PIM SSM
• RFC3376 IGMP
• RFC2475 Priority Queue Mapping
• RFC2475, RFC2598 Class of Service (CoS)
• RFC2597, RFC2598 QoS Flow Actions
• RFC2697, RFC2698 Three Color MarkerRFC2093, RFC2904, RFC2095, RFC2906 AAA
• RFC1321, RFC2144, RFC2313, RFC2420, RFC2841, RFC3394 Encryption
• RFC2289 One-Time
• RFC3580 802.1X
• RFC2866 RADIUS Accounting
• RFC2138, RFC2139, RFC2865, RFC2618 RADIUS Author. for Management Access
• RFC1492 TACACS + Auth. for Management Access
• RFC2068, RFC2616 Web-based GUI
• RFC854 Telnet Server
• RFC783, RFC1350 TFTP Client
• RFC1157, RFC1901, RFC1908, RFC2570, RFC2574, RFC2575, RFC3411-17 SNMP
• RFC3164 System Log
• RFC2819 RMON v1
• RFC951, RFC1542, RFC2131, RFC3046 BootP / DHCP Client
• RFC1769 Time Setting
• RFC2131 DHCP Server
• RFC1191 MTU Setting
• RFC1065, RFC1066, RFC1155, RFC1156, RFC2578 MIB Structure
• RFC1215 MIB Traps Convention
• RFC4188 Bridge MIB
• RFC1157, RFC2571-2576, RFC3411-3415, RFC3418 SNMP MIB
• RFC1901-1908, RFC1442, RFC2578 SNMP v2 MIB
• RFC2737 Entity MIB
• RFC768 UDP
• RFC791 IP
• RFC793 TCP
• RFC826 ARP
• RFC1338, RFC1519 CIDR
• RFC2716, RFC3748 EAP
• RFC2571, RFC2572, RFC2573, RFC2574 SNMP
100-240 VAC, 50/60 Hz
Max. power consumption
• 116,8 W (without extension module)
• 160,4 W (DXS-3600-EM-4QXS)
Power consumption in standby mode
  • 88.2 W
Max. heat release
• 398,29 BTU / h (without extension module)
• 546,96 BTU / hr (with DXS-3600-EM-4QXS)
Heat dissipation in standby mode
  • 300,76 BTU / hr
  • 440 x 506 x 44 mm
  • 10.71 kg
Working temperature
  • From 0 to 45 C
Storage temperature
  • From 40 to 70 ° C
  • From 0% to 95% (non-condensing)
Storage Humidity
  • From 0% to 95% (non-condensing)
• Safety: CB, cUL
