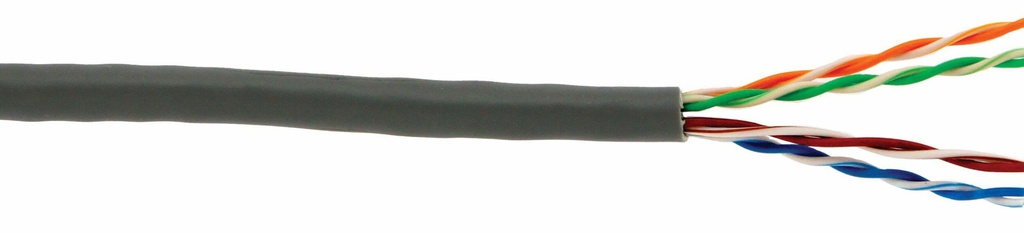

D-Link Cat6 UTP 23 AWG PVC Solid Cable - 305m/Roll - Grey Colour
0.00 KSh
0.00 KSh
19,875.00 KSh
(Tax excluded)
D-Link Cat6 UTP 23 AWG PVC Solid Cable - 305m/Roll - Grey Colour
Part Number: NCB-C6UGRYR-305
- 4 Pairs Unshielded Twisted Pair (UTP) Cable
- Conductor Metal: Solid Bare Copper with 23 AWG
- Color Code: Gray
- Jacket Material: PVC UL94V-0
- PE Central Cross separator
- Mutual Capacitance: 5.6nF/100m nominal
- Characteristic Impedance: 100Ω±15%
- Nominal Velocity of Propagation: 69%
- Conductor Resistance: < 9.38Ω/100m
- Mutual Capacitance: < 5.6nF/100m
- Resistance Unbalance: 5% Max
- Capacitance Unbalance: 330pF/100m
- Delay Skew: < 45nS
- Conductor Diameter : 0.560mm Nominal
- Insulation Diameter: 0.97mm Nominal
- Insulation Material: HD-PE
- Cable Diameter: 6.0mm
- Dlink-NCB-C6UGRYR-305datasheet
