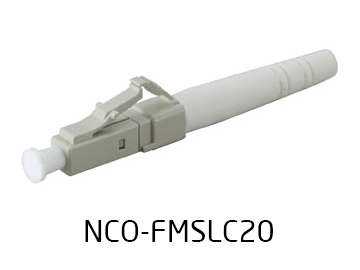

D-Link LC Multimode Fiber Connector - PC type

D-Link LC Multimode Fiber Connector - PC type

Part Number: NCO-FMSLC20

•  Color: Beige
• High Precision Ceramic Ferrule
  Simplex
  APC Green Polymer housing with 900μm and 3mm strain relief boot
  High Precision Polymer housing
  Low Return Loss
  High Precision Nickel plated brass housing
  Low Insertion Loss
  Low environmental sensitivity
  Ease of installation

  Measure : LC Connector
  Insertion Loss dB (Single) : < 0.3
  Return Loss : > 55dB UPC Style Ferrule > 60dB APC Style Ferrule
  Cable Boot : 2mm white, 3mm upon request
  Mating Cycle : Up to 1000 times
  Ferrule Diameter : 1.25mm ± 0.001
  Ferrule Tolerance Single Mode : 126 ± 0.5μm internal
  Ferrule Tolerance Multi Mode : 127 ± 0.5μm internal
  Finish : Pre-radiused PC end, radius 10 to 25mm
  Operating Temperture : - 40°C to + 85 °C
  Meet standard : IEC61754-20 Optical Fibre Connector Interface
  Durability : IEC61300-2-2 Fibre Optic Interconnecting Devices
  Performance : IEC61753-1 Optical Fibre interconnecting devices and passive components performance standard
