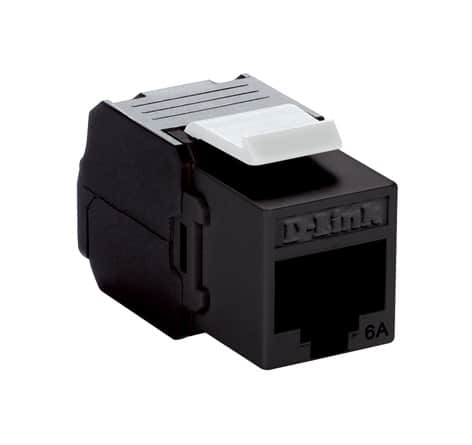

D-Link Cat6A - 10G UTP 180 Tool-less Keystone Jack - Black Colour

D-Link Cat6A - 10G UTP 180 Tool-less Keystone Jack - Black Colour

Part Number: NKJ-6ABLK1B21

•   RJ45 8P 8C 180º 50u Punch Down Jack
•   Terminating 4 pairs, 23-26 AWG Cable
•   Universal labels color coded for T568A and T568B wiring schemes
•   Fitting high density keystone panel
•   IDC: suitable for 22-26 AWG stranded and solid wire, compatible with both 110 Krone punch down tools
•   Perform dual function punch down and tool –free
•   Tool-less: when using the IDC Cap for wire management.
•   The Cat6A transmission performance is in compliance with the ANSI/TIA/EIA 568 C.2 standard
•   Available in 5 Colours (Black)



1.      RJ45 jack :

• Housing: ABS+PC, UL 94V-0, with black color.
• Contact Bracket: PC, UL 94V-2, Transparent color.

2.      RJ45 jack Contact:

• Material: Phosphor Bronze with Nickel Plated
• Finish: 50 micro-inch Gold Plated on plug contact area.

3.      IDC:

• Housing: PC + Glass Fiber, UL 94V-2
• Terminal: Phosphor Bronze with Tin Plated

• 4.      IDC CAP : PC + Glass Fiber, UL 94-V2, White color.

  5.      Cap A&B: Nylon Fiber, Black color.

  6.      PCB : FR4, UL 94V-0
