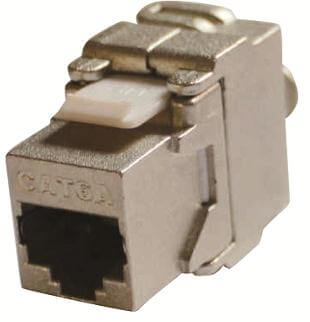

D-Link Cat6A Shielded FTP 180 Tool Less Keystone Jack- Metallic
Part Number: NKJ-6ASMET2B21
- RJ45 8P 8C 180º 50u Tool Less Jack
- Terminating 4 pairs, 22-26 AWG Cable
- Universal labels color coded for T568A and T568B wiring schemes
- Fitting high density keystone panel
- IDC: suitable for 22-24 AWG stranded and solid wire, compatible with both 110 & Krone punch down tools
- The Cat6A transmission performance is in compliance with the ANSI/TIA/EIA 568 C.2-1 standard
1. RJ45 Jack Shield: Zinc die casted with Nickel plating
2. RJ45 Jack:
Housing: Zinc die casted with Nickel plating
Contact Bracket: PC, UL 94V-0, Transparent color.
3. RJ45 Jack Contact:
Material: Phosphor Bronze with Nickel Plated.
Finish: 50 micro-inch Gold Plated on plug contact area.
4. IDC:
Housing: PC ,UL 94V-0.
Terminal: Phosphor Bronze with Tin Plated.
5. IDC CAP : PC,UL 94 V-0
6. PCB : FR4, UL 94V-0
