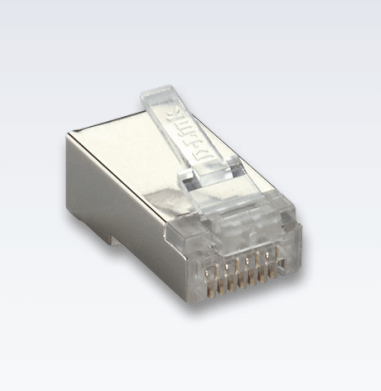

D-Link Cat6 Shielded FTP plug with Engraved D-Link Logo-(100pcs/bag)

D-Link Cat6 Shielded FTP plug with Engraved D-Link Logo-(100pcs/bag)

Part Number: NPG-C61MET502-100

The NPG-C61MET502-100 CAT6 FTP Modular Plug is a universal network jack with high conductivity, for all your network cabling requirements.

Modular Plugs

D-Link Category 6 Modular Plugs are suitable for both 24-26 AWG stranded and solid cables. This modular design means they can be used for a wide range of networking needs that span across a whole business system, eliminating the need to constantly switch between plugs when cabling. Compatible with standard RJ45 Wire network crimping tools, D-Link CAT 6 modular plugs fit seamlessly into any well-established standard operating procedure, making cable assembly easy.

High Conductivity

The RJ45 jack contact terminals are finished with 50 micro-inch thick gold plating, not only increasing conductivity but also the connector’s lifespan, this results in more reliable and fast data transfers.

Universal Standards

Supporting the IEC60603-7-4 and complying with ANSI/TIA/EIA-568-C.2 standards, the D-Link CAT 6 modular plugs easily integrate into any established network cabling system.

Features

Modular design

•  Fits 24-26 AWG

Standards

•  IEC60603-7-4

•  ANSI/TIA/EIA-568-C.2

Reliable and fast connection

•  50 micro-inch thick gold plating

•  Polycarbonate housing

•  Nickel-plated bronze shield

Technical Specifications

General Specifications

RJ45 Jack Housing & Insert: Polycarbonate, UL94-2

RJ45 Jack Shield: Bronze with Nickel plating

RJ45 Jack Contact Terminal Material: Phosphor bronze with 100 micro-inch nickel plating on contact area

RJ45 Jack Contact Terminal Finish: 50 micro-inch gold plating

Insertion Cycles: 2000 times

Operating Temperature: -40 °C to 125°C

Electrical Specifications

Current Rating (MAX) : 2A

AC Input: 250V AC Insulation

Resistance : ﹥ 500 Megaohms,1000V DC/min

Contact Resistance : <20 Milliohms
