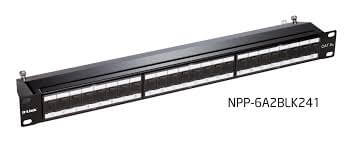

D-Link 24 Port Cat6A Shielded Fully Loaded Punch Down Patch Panel- Keystone Type with Shutter -1U- Black Colour

D-Link 24 Port Cat6A Shielded Fully Loaded Punch Down Patch Panel- Keystone Type with Shutter -1U- Black Colour

Part Number: NPP-6A2BLK241

• Available in 24 (1U) ports

• Hand screw, easy to open the cover

• Eight port RJ45 modules applied

• Jack shutter to keep dust away

• Friendly installation, the right angle between IDCs and RJ45 jacks

• ID stripes for identifying port allocations

• Mounts in standard 19” rack

• IDC: suitable for 22-26 AWG stranded and solid wire, compatible with both 110& Krone punch down tools

• The Cat6A transmission performance is in compliance with the ANSI/TIA/EIA 568C.2 10G & ISO/IEC 11801 standards

Specifications

•  Panel: SECC, 1.2mm thickness with optional color painted

•  Identification:

               ID plate: PVC, Transparent color with paper

               ID Bracket: ABS+PC, UL 94V-0

•  RJ45 Jack:

               Housing: PBT+ Glass Fiber, UL94V-0

               Contact Bracket: PBT+ Glass Fiber, UL94V-0

•   RJ45 Jack Contact:

               Material: Phosphor Bronze with Nickel plated

               Finish: 50 micro-inches Gold plated on Plug contact area

• RJ45 Jack Shield: Bronze with Nickel plated

•  Dust cover: PC, UL94V-2

•  IDC:

            Housing: PC+ Glass Fiber, UL 94V-2

            Terminal: Phosphor Bronze with Tin Plated

• Ground wire: 18 AWG wire, with Green/Yellow striped color

•  PCB: FR4, UL 94V-0
