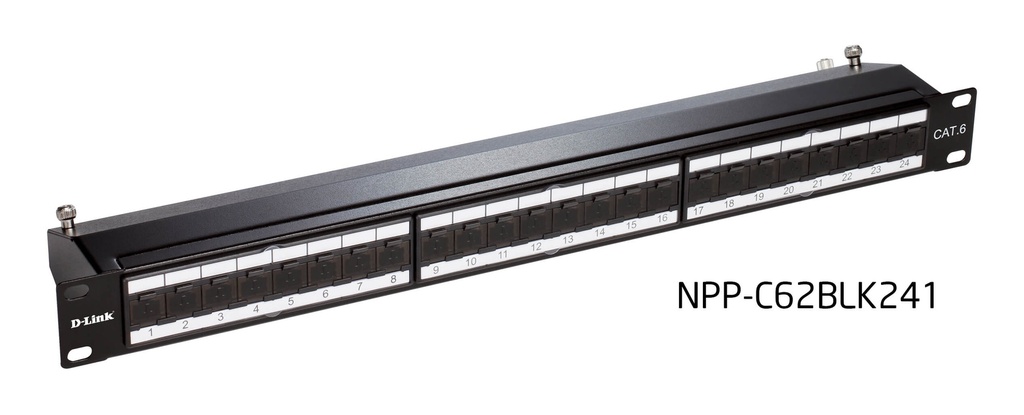

D-Link 24 Port Cat6 Shielded Fully Loaded Punch Down Patch Panel - Keystone Type with Shutter- 1U -Black Colour

D-Link 24 Port Cat6 Shielded Fully Loaded Punch Down Patch Panel - Keystone Type with Shutter- 1U -Black Colour

Part Number: NPP-C62BLK241

• Available in 24 (1U) and 48 (2U) Ports
• Hand screw, easy to open the cover
• Eight port RJ45 modules applied
• Jack shutter to keep dust away
• Friendly installation, right angle between IDCs and RJ45 keystone jacks
• ID stripes for identifying port allocations, IDC compatible with 110&Krone tool
• Mounts in standard 19” racks
• The Cat6 transmission performance is in compliance with the ANSI/TIA/EIA 568B.2 standard

    1.    Panel: SECC, 1.2mm thickness with optional color painted

                  2.    Identification:

•  ID plate: PVC, Transparent color with paper
•  ID Bracket: ABS+PC, UL 94V-0

                  3.    RJ45 Jack:

• Housing: PBT+ Glass Fiber, UL94V-0
• Contact Bracket: PBT+ Glass Fiber, UL94V-0

                  4.    RJ45 Jack Contact:

• Material: Phosphor Bronze with Nickel plated
• Finish: 50 micro-inches Gold plated on plug contact area

                 5.    RJ45 Jack Shield: Bronze with Nickel plated

                 6.    Dust cover: PC, UL94V-2

                 7.    IDC:

• Housing: PC+ Glass Fiber, UL 94V-2
• Terminal: phosphor Bronze with Tin Plated

                 8.    Ground wire: 18 AWG wire, with Green/Yellow striped color

                  9.   PCB: FR4, UL 94V-0
