Teltonika EU 2 pin Power Supply

https://www.redstarafrica.com/web/image/product.template/11950/image_1920?unique=0c960c9

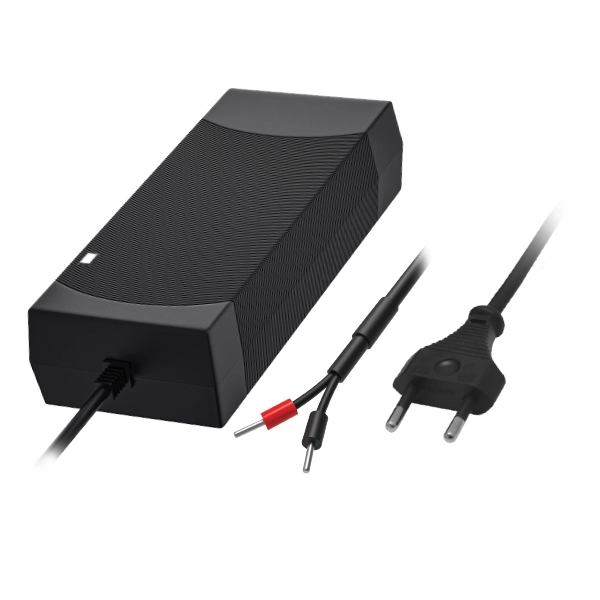

The Teltonika EU 2 Pin Power Supply is a versatile and reliable power source designed to provide stable output for various devices. It works with a wide range of input voltages and is commonly used in telecommunications and industrial settings. This power supply is built to ensure safety, with features like short circuit protection and a high level of durability.

11,575.00 KSh 11575.0 KES 11,575.00 KSh Tax Excluded

11,575.00 KSh Tax Excluded

Contact us for this product

This combination does not exist.

Teltonika EU 2-Pin Power supply

The Teltonika EU 2 Pin Power Supply operates with an input voltage range of 100 to 240 VAC, making it suitable for use in different regions worldwide. It supports both 50 Hz and 60 Hz input frequencies and can handle a maximum input current of 1.5 A. The output provides 48 VDC at 1.3 A, with an efficiency that ensures optimal power delivery. This power supply unit features an advanced HIPOT dielectric withstand test, guaranteeing its resilience under electrical stress. The primary-to-secondary isolation voltage is rated at 4000 VDC, ensuring that the device provides safe power distribution, even in harsh conditions. With an MTBF (Mean Time Between Failures) of 50,000 hours, this power supply offers long-lasting reliability. Additionally, it includes a short circuit protection feature to safeguard against potential damage. The device weighs approximately 353.5 grams and comes with a 2-pin connector with cord end terminals. This unit is also certified for use in the UK with a Type G connector.

Teltonika EU 2-Pin Power supply

Power

  • Input Voltage: 100 - 240 VAC (90 - 264 VAC absolute maximum rating)
  • Input Frequency: 50/60 Hz (47 - 63 Hz absolute maximum rating)
  • Input Current: 1.5 A
  • Output Voltage: 48 VDC
  • Output Current: 1.3 A
  • Output Voltage Absolute Maximum Rating: 45.6 - 50.4 VDC
  • Primary to Secondary Isolation: 4000 VDC
  • Maximum Input Inrush Current: 50 A

Safety Standards and Protections

  • Short Circuit Protection: Yes
  • HIPOT (Dielectric Withstand Test): Ensures resilience under electrical stress
  • Certification: UK (Type G connector)
  • MTBF (Mean Time Between Failures): 50,000 hours

Physical Attributes

  • Weight: 353.5g
  • Input Connector: 2-Pin
  • Output Connector: Cord End Terminals
