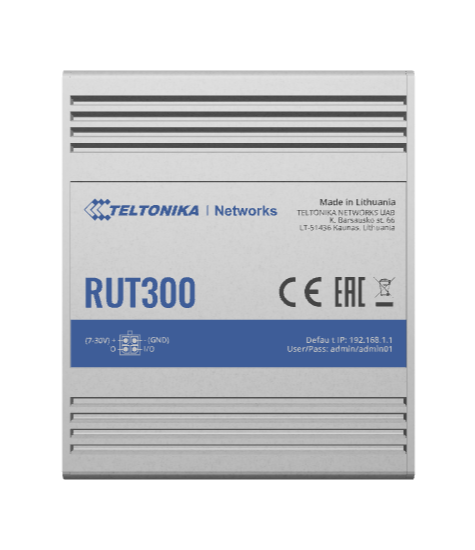

Teltonika RUT300 | Industrial Ethernet Router
The Teltonika RUT300 is a compact and versatile industrial router designed for reliable connectivity in various applications. It is particularly well-suited for environments where space is limited, yet robust performance is required. With its user-friendly design, the RUT300 is ideal for both personal and professional use, ensuring seamless internet access wherever you need it.
Documents
Teltonika RUT300 | Industrial Ethernet Router
The RUT300 features five RJ45 Ethernet ports, allowing for multiple wired connections, and supports a wide input voltage range of 7 to 30 VDC, making it adaptable to different power sources. It includes two configurable I/O pins, which can be used for various digital input and output functions, enhancing its utility in automation and monitoring applications. The router operates in a temperature range of -40 °C to 75 °C, ensuring reliable performance in harsh conditions. Additionally, it supports passive PoE, enabling power delivery over Ethernet cables, which simplifies installation by reducing the need for additional power sources. The RUT300 is housed in a durable aluminum casing, measuring 100 x 30 x 85 mm, and is designed for easy mounting on DIN rails or flat surfaces, making it a practical choice for industrial settings.
Teltonika RUT300
details
Features and Specifications
Cellular Connectivity
- Supports 4G LTE connectivity.
- Compatible with various cellular networks.
- Automatic failover to ensure continuous connectivity.
- SIM card slot for mobile network access.
- Supports multiple service providers.
Wired Networking
- 5 x RJ45 Ethernet ports (10/100 Mbps).
- 1 x WAN port for internet connection.
- 4 x LAN ports for local network connections.
- Compliance with IEEE 802.3 and IEEE 802.3u standards.
- Supports auto MDI/MDIX crossover.
Network Management
- DHCP server and relay support.
- Traffic priority queuing (QoS).
- Load balancing over multiple WAN connections.
- Connection monitoring features.
- Customizable firewall rules.
Security
- Pre-configured firewall rules via WebUI.
- DDOS prevention mechanisms.
- VLAN support for network segmentation.
- Access control for TCP, UDP, and ICMP packets.
- Remote access capabilities with encryption methods.
System Management
- Configurable digital I/O pins.
- Power consumption: Idle 1.3 W, Max 3 W.
- Reboot and reset buttons for system management.
- SSHFS for remote file system access.
- Operating temperature range: -40 °C to 75 °C.
Box Contents
Your RUT300 box comes with:
Your Router
- Your Teltonika RUT300 Industrial Ethernet Router.
Accessories
- 9 W PSU (Power Supply Unit)
- Ethernet cable (1.5 m)
Additional Items
- Quick Start Guide
