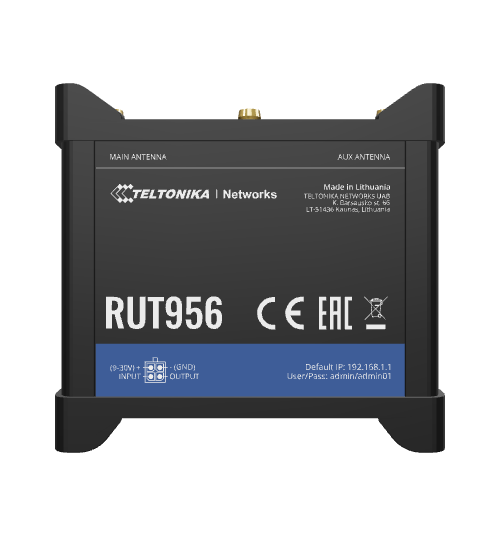

Teltonika RUT956 | Industrial Cellular Router
The Teltonika RUT956 is an industrial cellular router designed to provide reliable internet connectivity in various environments. It is particularly suited for applications that require stable mobile data connections, such as remote monitoring, IoT deployments, and industrial automation. With its user-friendly interface and versatile features, the RUT956 is an excellent choice for businesses looking to enhance their connectivity solutions.
Documents
Teltonika RUT956 | Industrial Cellular Router
The RUT956 supports 4G LTE Cat 4, offering download speeds of up to 150 Mbps and upload speeds of up to 50 Mbps, ensuring fast and efficient data transmission. It is equipped with dual SIM slots for redundancy, allowing seamless switching between networks to maintain connectivity. The router features multiple connectivity options, including Ethernet ports, RS232, and RS485 interfaces, making it adaptable for various applications. Additionally, it supports advanced management features such as remote monitoring via a web interface, SMS configuration, and API access for integration with other systems. The RUT956 also includes built-in GNSS capabilities for location tracking, making it ideal for fleet management and asset tracking. Its rugged design ensures durability in harsh environments, while the included antennas enhance signal strength and reliability.
Teltonika RUT956
details
Features and Specifications
Cellular Connectivity
- Supports 4G LTE Cat 4 with up to 150 Mbps DL and 50 Mbps UL speeds.
- Dual SIM slots for network redundancy.
- Compatible with multiple frequency bands (4G, 3G, 2G).
- Automatic APN configuration.
- SMS functionalities for status and configuration.
Wireless Networking
- Wi-Fi 4 (802.11b/g/n) support.
- Access Point (AP) and Station (STA) modes.
- Fast roaming (802.11r) and BSS transition management (802.11v).
- Captive portal and customizable hotspot features.
- Wireless MAC filtering (whitelist/blacklist).
Wired Networking
- Three 10/100 Mbps LAN ports.
- One 10/100 Mbps WAN port.
- RS232 and RS485 interfaces for serial communication.
- Ethernet cable included in the standard package.
- Supports auto MDI/MDIX for easy connectivity.
Network Management
- Web UI for configuration and monitoring.
- Remote management via Teltonika Remote Management System (RMS).
- FOTA (Firmware Over-The-Air) updates.
- API access for data retrieval and configuration changes.
- SNMP support for network monitoring.
Security
- Built-in firewall and VPN support.
- Brute force protection mechanisms.
- User authentication options (SMS, Radius).
- MAC address filtering for device access control.
- Configurable geofencing for location-based security.
System Management
- GNSS capabilities for location tracking.
- Event logging and system status monitoring.
- CLI access for advanced configuration.
- JSON-RPC for management API.
- Multiple event log servers for troubleshooting.
Box Contents
Your RUT956 box comes with:
Your Router
- Your Teltonika RUT956 Industrial cellular router.
Accessories
- External antennas
- Power supply
- Mounting brackets
- USB-to-serial adapters
- Micro SD card
Additional Items
- Quick Start Guide
