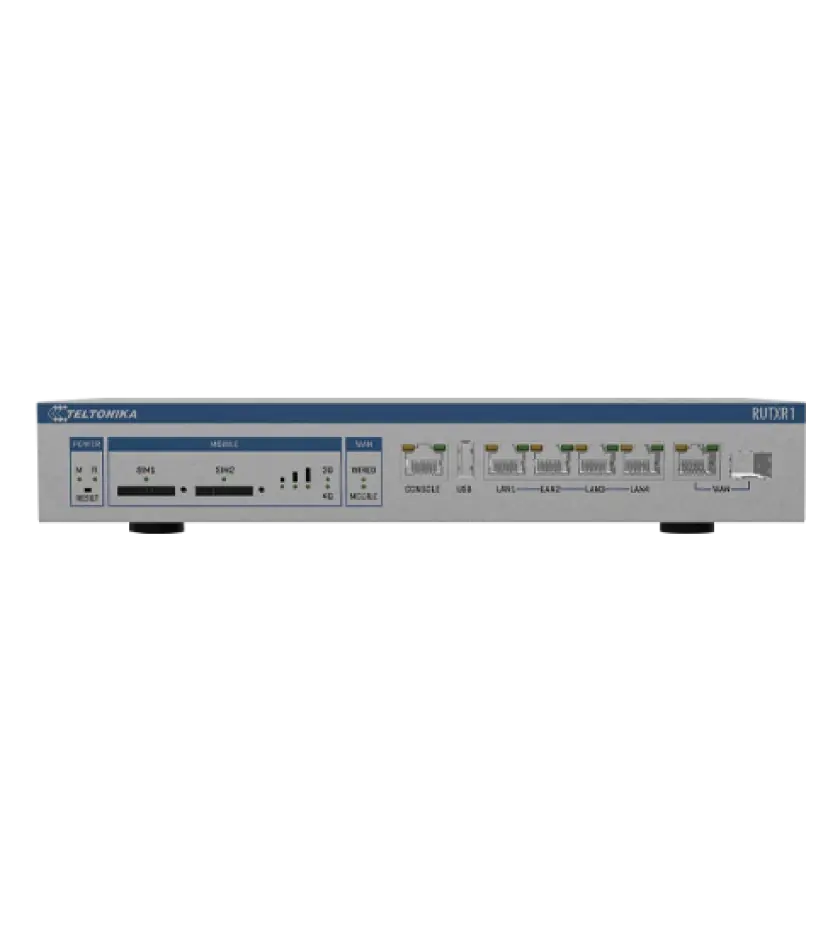

Teltonika RUTXR1 | Enterprise Rack-Mountable SFP/LTE Route
SFP LTE Router
Supports 4G LTE Cat 6 with dual SIM slots.
The Teltonika RUTXR1 is a versatile and robust router designed for various networking needs. It offers reliable connectivity options, making it suitable for both personal and professional use. With its sleek design and user-friendly interface, the RUTXR1 is an excellent choice for anyone looking to enhance their internet experience.
Documents
Teltonika RUTXR1 | Rack-Mountable SFP LTE Router
The RUTXR1 is equipped with advanced features that cater to a wide range of applications. It supports multiple WAN options, including mobile, wired, fiber, and WiFi, allowing for automatic failover and load balancing to ensure uninterrupted internet access. The device is compliant with various networking standards, including IEEE 802.3 and 802.11b/g/n/ac, providing high-speed wireless connectivity with data rates of up to 867 Mbps. Additionally, it supports up to 150 simultaneous WiFi connections and offers robust security features such as WPA3 and customizable captive portals. The RUTXR1 also includes a console port for configuration and debugging, multiple LAN ports, and a USB port for added functionality. Its dual SIM capability allows for seamless switching between mobile networks, making it ideal for users who require constant connectivity in different environments.
Teltonika RUTXR1
details
Features and Specifications
Cellular Connectivity
- Supports 4G LTE Cat 6 with up to 300 Mbps download speed.
- Dual SIM slots for automatic switching and redundancy.
- Mobile signal strength indicators.
- Compatibility with various mobile network operators.
- Supports 3G networks with up to 42 Mbps.
Wireless Networking
- Dual-band WiFi (2.4 GHz and 5 GHz) with up to 867 Mbps.
- Supports up to 150 simultaneous WiFi connections.
- WPA3, WPA2, and WEP security protocols.
- Access Point (AP) and Station (STA) modes.
- Captive portal for guest access.
Wired Networking
- 5 x Gigabit Ethernet LAN ports.
- 1 x WAN Ethernet port for wired internet connection.
- 1 x SFP port for fiber connectivity.
- Auto MDI/MDIX support for Ethernet ports.
- VLAN support for network segmentation.
Network Management
- Web-based user interface for configuration.
- Remote management via Teltonika RMS.
- SNMP support for network monitoring.
- Customizable firewall rules and traffic management.
- Traffic statistics and reporting features.
Security
- Pre-configured firewall rules and DDoS protection.
- VPN support (IPSec, OpenVPN, PPTP).
- MAC address filtering and port blocking.
- SIM card lock and blacklist features.
- Secure access with HTTPS and SSH.
System Management
- Firmware updates via web interface or Teltonika RMS.
- System logs for monitoring and troubleshooting.
- Configuration backup and restore options.
- Power over Ethernet (PoE) support.
- Reset button for factory settings.
Box Contents
Your RUTXR1 box comes with:
Your Router
- Your Teltonika RUTXR1 Industrial cellular router.
Accessories
- Ethernet cable (1.5 m)
- SIM adapter kit
- Rack-mounting kit
Additional Items
- Quick Start Guide
