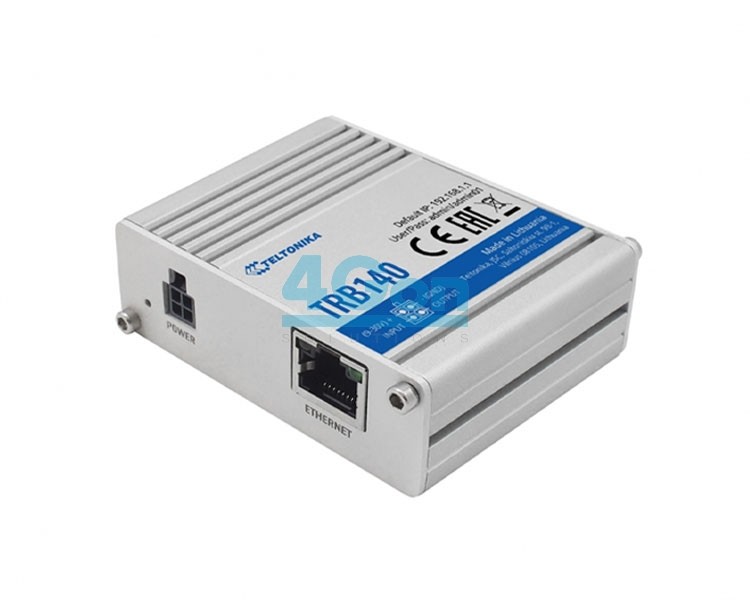

Teltonika TRB140 | Industrial Rugged LTE Gateway
The TRB140 gateway is equipped to handle a wide range of mobile network frequencies, including 4G LTE, 3G, and 2G, making it compatible with various operators across Europe, South America, Asia, and more. It supports LTE-FDD and LTE-TDD technologies, ensuring robust connectivity for data transmission. The device comes with a standard package that includes essential accessories such as a mobile antenna, LAN cable, and a quick start guide, facilitating easy setup and use. Additionally, the TRB140 features SMS management capabilities, allowing users to send and receive messages directly through the device, which can be particularly useful for remote monitoring and control applications. Its compact dimensions (74.5 x 25 x 64.4 mm) make it easy to integrate into different environments, whether in an office or an industrial setting.
Teltonika TRB140 details
Technical Specifications
Interfaces
- Ethernet port
- USB port
- Mobile antenna connector
- Power socket
- I/O pins (Power, Ground, and I/O wires)
Telephony Features
- SMS status and configuration
- Send/read SMS via HTTP POST/GET
- Answer/hang-up with a timer
System Administration & Maintenance
- Web UI for management
- SSH (v1, v2) access
- SNMP (v1, v2, v3) support
- Teltonika Remote Management System (RMS)
- Management API over HTTP/HTTPS
Advanced Features
- TR-069 support for remote management
- MQTT Broker and publisher capabilities
- MODBUS TCP custom register block requests
- DNP3 and DLMS protocol support
- Custom LUA scripting for extended functionality
Messaging & Data Services
- SMS management for remote monitoring
- Data transmission via MQTT and HTTP(S)
- Support for various data formats (INT, UINT, float, HEX, ASCII) for data to server functionality
Package Contents
Your Gateway Box comes with:
Your Gateway
- Teltonika TRB140 Unit
Accessories
- 1 x 9 W power supply unit
- 1 x Micro-USB cable (0.8 m)
Additional items
- Quick User Guide
