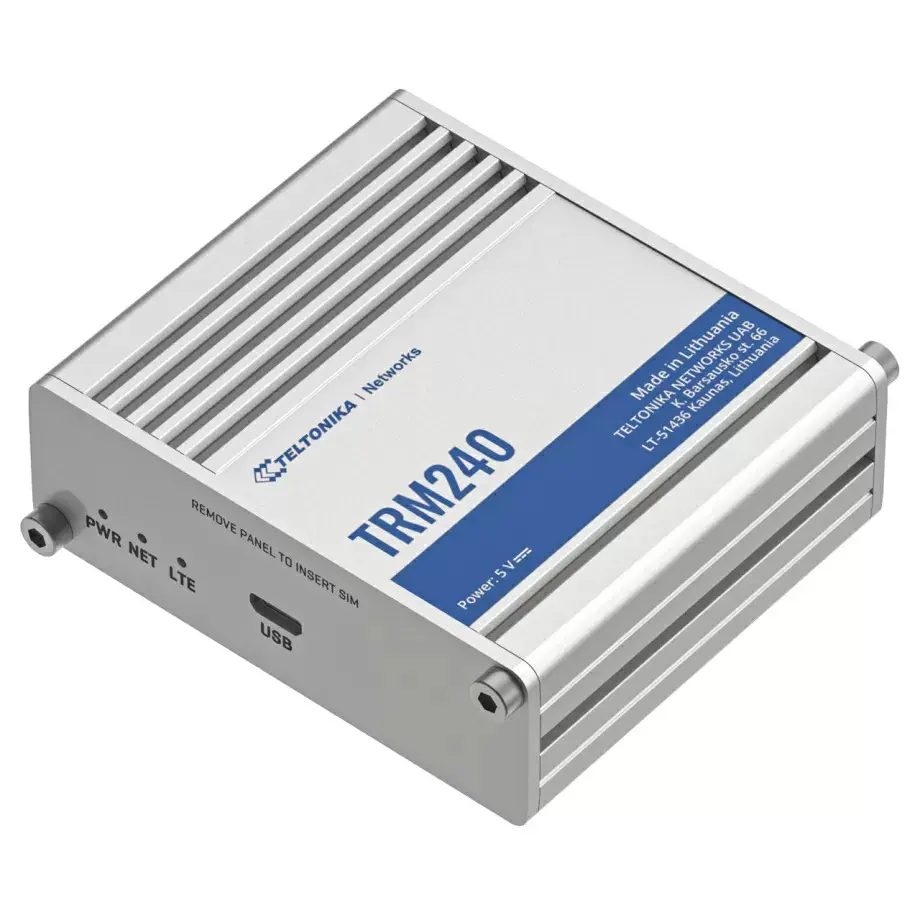

Teltonika TRM240 Industrial LTE Modem
Industrial LTE Modem
Supports 3G & 2G
The TRM240 is an industrial grade cellular LTE Cat 1 modem with rugged aluminum housing is a compact and easy to use connectivity device that can provide cellular capabilities to equipment across all market segments.
It is backward compatible with 3G and 2G, therefore it is an optimal choice when it comes to large scale connectivity upgrades for Industrial or Public infrastructures. It offers a long and stable lifecycle and low power consumption important for IoT projects.
TRM240 comes with a USB interface for power and communication.
It is backward compatible with 3G and 2G, therefore it is an optimal choice when it comes to large scale connectivity upgrades for Industrial or Public infrastructures. It offers a long and stable lifecycle and low power consumption important for IoT projects.
TRM240 comes with a USB interface for power and communication.
Teltonika TRM240 Industrial Cellular Modem
The Teltonika TRM240 is a robust industrial-grade USB LTE Cat 1 modem, engineered to withstand harsh environments. It offers reliable high-speed LTE connectivity, making it perfect for upgrading existing industrial equipment. Its rugged design, external antenna, and flexible configuration make it ideal for various applications, including industrial automation, IoT, telematics, and remote monitoring. Whether you need to remotely control machinery, collect data from sensors, or track vehicles, the TRM240 provides the reliable connectivity you need.
Teltonika TRM240 Details
Features and Specifications
Physical Specifications
- Casing material : Aluminum housing
- Dimensions (W x H x D) : 74.5 x 25 x 64.5 mm
- Weight: 131 g
- Mounting options : DIN rail, wall mount, flat surface (all require additional kit)
Physical Interfaces
- Status LEDs : 1 x Power LED, 1 x Network LED, 1 x Mobile LED
- SIM : 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
- Power : 1x microUSB
- Antennas : 1 x SMA for LTE
Mobile
- Mobile module : 4G LTE Cat 1 up to 10 DL/5 UL Mbps; 3G up to 384 DL/384 UL kbps; 2G up to 296 DL/236.8 UL kbps
- 3GPP Release : Release 12
TRM Software
- Management Software : Windows Connection Manager (NDIS driver)
- USB Driver : Windows 7/8/8.1/10, Windows CE 5.0/6.0, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x
- RIL Driver : Android 4.x/5.x/6.x/7.x/8.x
- NDIS Driver : Windows 7/8/8.1/10
- Gobinet Driver : Linux 2.6/3.x/4.1~4.14
- Linux Driver : 3.x (3.4 and later)/4.1~4.14
Power
- Connector : microUSB
- Input voltage range : 5V - powered via microUSB
- Power consumption : 3.2 W Max
Box Contents
Your Teltonika TRM240 box comes with:
Your Modem
- Teltonika TRM240 Industrial Modem
Accessories
- 1x LTE antenna(swivel, SMA male)
- Micro USB cable (0.8m)
- 1x hex key
Additional Items
- Quick Start Guide
