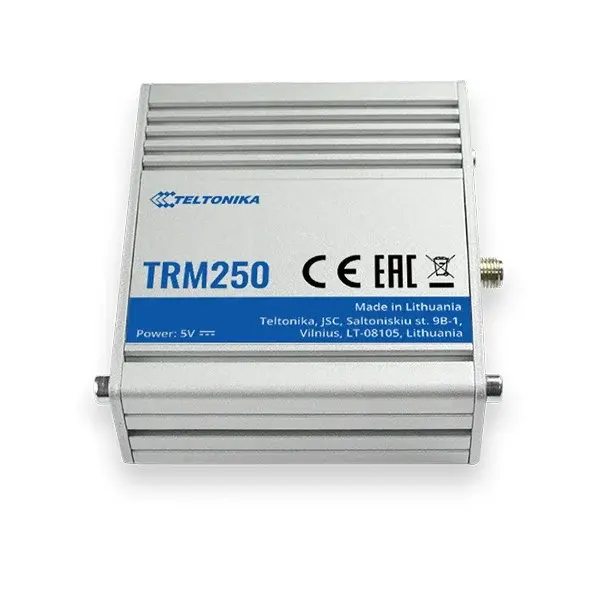

Teltonika TRM250 4G Industrial Cellular Modem
Industrial Cellular Modem
Multiple LPWAN connectivity options
The TRM250 is an industrial grade cellular modem with multiple LPWAN connectivity options. It features NB-IoT, LTE Cat-M1, and is backward compatible with EGPRS (2G).It offers an extremely long lifecycle, low power consumption, and is the most flexible option when upgrading the connectivity of existing industrial equipment. The TRM250 has a USB interface, a durable aluminum housing, and an external antenna for better signal coverage. It is perfect for providing cost-efficient internet connectivity in remote monitoring application.
Teltonika TRM250 Industrial Cellular Modem
The Teltonika TRM250 is a compact and rugged industrial-grade USB LTE Cat-M1/NB-IoT/EGPRS modem, designed for IoT and M2M applications. It offers reliable and cost-effective connectivity in remote areas and challenging environments. With its low power consumption and extended battery life, the TRM250 is ideal for battery-powered devices. Its robust design and external antenna ensure optimal performance in harsh conditions, making it a reliable choice for a wide range of industrial applications.
Teltonika TRM250 Details
Features and Specifications
Physical Specifications
- Casing material : Aluminum housing
- Dimensions (W x H x D) : 74.5 x 25 x 64.5 mm
- Weight: 130 g
- Mounting options : DIN rail, wall mount, flat surface (all require additional kit)
Physical Interfaces
- Status LEDs : 1 x Power LED, 1 x Network LED
- SIM : 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
- Power : 1x microUSB
- Antennas : 1 x SMA for LTE
Mobile
- Mobile module : 4G LTE Cat M1 up to 375 DL/375 UL kbps; Cat NB1 up to 32 DL/70 UL kbps; 2G up to 296 DL/ 236.8 UL kbs
- 3GPP Release : Release 12
TRM Software
- Management Software : Windows Connection Manager (NDIS driver)
- USB Driver : Windows 7/8/8.1/10, Windows CE 5.0/6.0, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x
- RIL Driver : Android 4.x/5.x/6.x/7.x/8.x
- NDIS Driver : Windows 7/8/8.1/10
- Gobinet Driver : Linux 2.6/3.x/4.1~4.14
- Linux Driver : 3.x (3.4 and later)/4.1~4.14
Power
- Connector : microUSB
- Input voltage range : 5V - powered via microUSB
- Power consumption : 3.6 W Max
Box Contents
Your Teltonika TRM250 box comes with:
Your Modem
- Teltonika TRM250 Industrial Modem
Accessories
- 1x LTE antenna(swivel, SMA male)
- Micro USB cable (0.8m)
- 1x hex key
Additional Items
- Quick Start Guide
