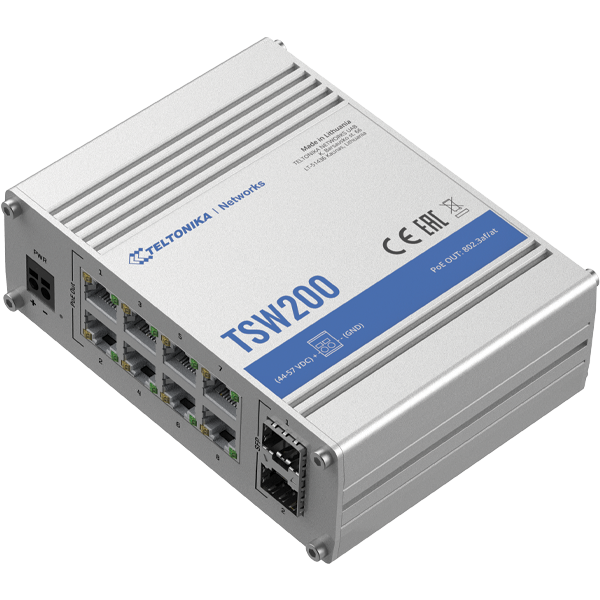

Teltonika TSW200 | Industrial PoE+ Ethernet Switch
The Teltonika TSW200 is a versatile networking device designed for various applications. It features a compact design, making it suitable for different mounting options, including DIN rail and wall mounting. This device is ideal for users looking for reliable connectivity in their network setups.
Documents
Teltonika TSW200 | Industrial PoE+ Ethernet Switch
The TSW200 measures 132 x 44.2 x 95.1 mm and weighs 517 g, featuring a full aluminum housing for durability. It supports 8 RJ45 ports with speeds of 10/100/1000 Mbps and 2 SFP ports for fiber connectivity, accommodating a wide range of networking needs. The device operates within a temperature range of -40 °C to 75 °C and has an ingress protection rating of IP30, ensuring reliable performance in various environments. It includes a 2-pin industrial DC power socket with an input voltage range of 7 – 57 VDC and supports jumbo frames of up to 9216 bytes. The TSW200 is compliant with several safety and regulatory standards, including CE and FCC, making it a trustworthy choice for industrial applications.
Teltonika TSW200 details
Technical Specifications
Network Ports & Connectivity
- 8 x RJ45 ports (10/100/1000 Mbps)
- 2 x SFP ports for fiber connectivity
- Auto MDI/MDIX crossover support
- Jumbo frame support (up to 9216 bytes)
- 2K entries MAC address table size
Performance & Management
- Bandwidth: 20 Gbps (Non-blocking)
- Power consumption: Idle: 1.81 W / Max: 5.5 W / PoE Max: 245.5 W
- Operating temperature: -40 °C to 75 °C
- Operating humidity: 10% to 90% non-condensing
- 128 KB packet buffer
PoE (Power over Ethernet)
- Total PoE Power Budget: 240 W
- PoE Max Power per Port: 30 W
- PoE standards: 802.3af and 802.3at Alternative B
- PoE-out input voltage range: 44 – 57 VDC
- Supports PoE on ports 1 - 8
Security & VLAN Features
- Compliance with CE and FCC standards
- Surge immunity and ESD protection
- Supports VLAN tagging
- Integrated security features for network protection
- Configurable access control lists (ACLs)
Physical & Environmental
- Dimensions: 132 x 44.2 x 95.1 mm
- Weight: 517 g
- Full aluminum housing
- IP30 ingress protection rating
- Integrated DIN rail bracket and wall mount options
Box Contents
Your Teltonika TSW200 box comes with:
Your Switch
- Teltonika TSW200 PoE+ Switch Console
Accessories
- Integrated DIN rail bracket
- Wall mount kit
Additional items
- User Guide
