Redstar 9U 600x600mm Wall Mount Cabinet
19-inch standard;
Removable Side Panels, sidelocks optional;
Knock off hole for entering cable on both top covers, bottom panel, real panel
Easy mounting installation
Unassembled package saving shipping space
One fan, One PDU (6 Ways UK Type) PDU is standard

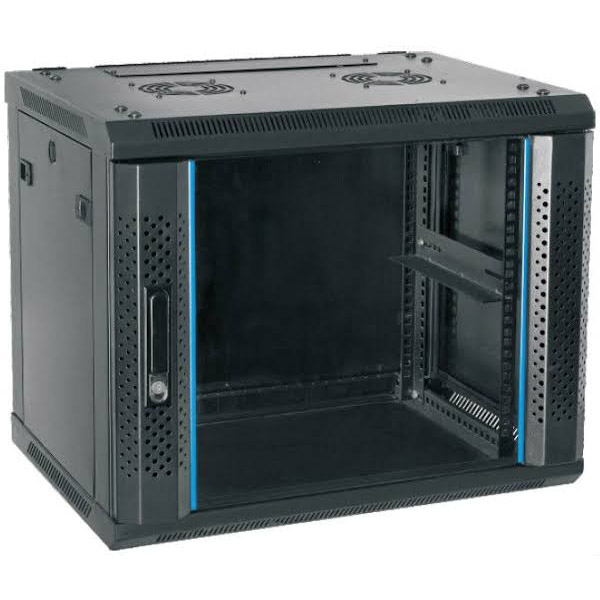

Redstar 9U 600*600mm Glass Door Cabinet
Part Number: WM6609
Standard
Comply with ANSI/EIA RS-310-D, DIN41497 part 1, IEC297-2, DIN41494 part 7, GBIT3047.2-92 standard.
Feature
19-inch standard;
Removable Side Panels, sidelocks optional;
Knock off hole for entering cable on both top covers, bottom panel, real panel
The turning angle of the front door is over 180 degrees
Easy mounting installation
Unassembled package saving shipping space
1 cooling fan, 1 fixed shelf & 6 Way UK type PDU is standard
Loading Capacity
80KG
Degree of Protection
IP20
Material
SPCC Cold Rolled Steel
Thickness:2.0mm-1.2mm-0.8mm
Surface Finish:
Powder coating
